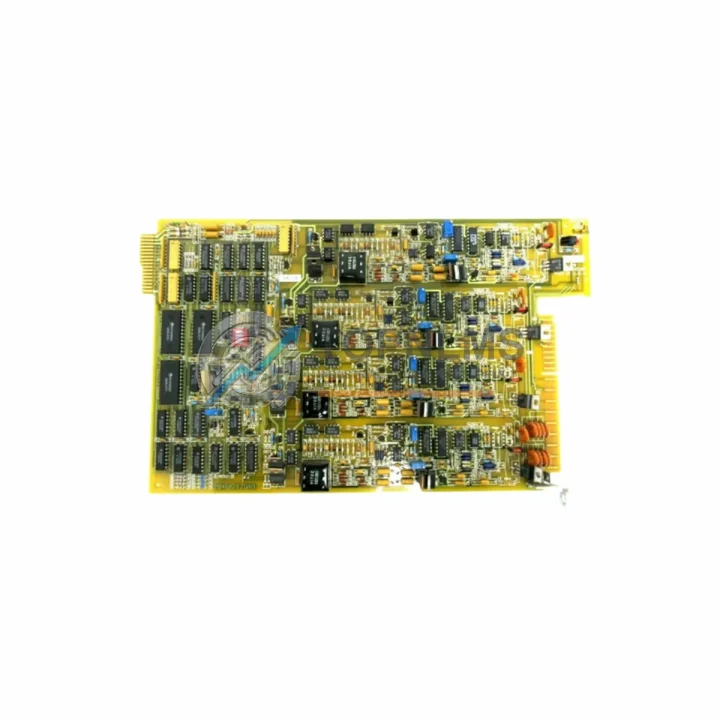

Westinghouse 2840A21G01 Original Industrial Spare – Ovation DCS System Stability & Reliable Analog Output Replacement

The Westinghouse 2840A21G01 is an original analog output board designed for the Westinghouse Ovation DCS (Distributed Control System) platform — one of the most widely deployed process control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Ovation systems continue to operate well beyond their original design life, maintaining a reliable inventory of original spare modules like the 2840A21G01 is no longer optional — it is a core pillar of any responsible maintenance strategy.

When an analog output board fails in a live DCS environment, the consequences extend far beyond a single control loop. Cascading alarms, forced manual overrides, and unplanned shutdowns can cost facilities tens of thousands of dollars per hour. The 2840A21G01 provides a direct, pin-compatible replacement that restores full system functionality without requiring firmware reconfiguration or controller revalidation — minimizing mean time to repair (MTTR) and protecting production continuity.

Critical Technical Specs

Preventive Maintenance Strategy for Ovation DCS Systems

Experienced maintenance engineers know that a single module failure rarely occurs in isolation. The 2840A21G01 analog output board operates within a tightly integrated I/O subsystem, and when scheduling a replacement or conducting a planned outage inspection, it is best practice to simultaneously audit the surrounding components that share the same control cabinet, backplane bus, and field wiring infrastructure.

During a scheduled inspection or corrective maintenance event involving the 2840A21G01, technicians should also verify the condition of the Ovation analog input modules (such as the 5X00106G01 or 5X00119G01 series) that feed process variables into the same control loops — a degraded input module can mask output board faults and complicate root-cause analysis. The Ovation controller module (e.g., 5X00070G01 OCR400 controller) should be checked for firmware currency and backplane connector integrity, as controller-side communication errors are frequently misdiagnosed as output board failures.

The Ovation I/O module rack and backplane assembly deserves close attention during any analog output replacement. Backplane connector pins corrode over time in humid or chemically aggressive environments, causing intermittent signal faults that are difficult to reproduce during bench testing. Alongside the backplane, inspect the 24 VDC power supply modules feeding the I/O rack — voltage sag or ripple on the backplane bus directly degrades analog output accuracy and can trigger nuisance alarms on downstream instrumentation.

Field wiring termination is another common failure point. The Ovation marshalling terminal blocks and field termination assemblies (FTAs) connected to the 2840A21G01 output channels should be inspected for loose screws, oxidized terminals, and moisture ingress. In facilities with long cable runs to final control elements such as control valves or variable frequency drives, signal isolators and loop-powered signal conditioners in the 4–20 mA circuit should be tested for drift. A failing isolator can introduce a DC offset that shifts the entire output range, causing process upsets that appear to originate from the DCS module itself.

For facilities running mixed Ovation and legacy relay logic panels, the relay output modules (such as the 5X00241G01) in adjacent I/O slots should be tested during the same maintenance window. Similarly, Ovation communication modules — including PROFIBUS, Modbus, or Ethernet gateway cards — should be checked for firmware version compatibility whenever an I/O module is replaced, as some firmware combinations introduce latency in the output update cycle. Finally, if the control cabinet houses an Ovation HMI workstation or operator interface panel, verify that the display correctly reflects the restored analog output values after module swap to confirm end-to-end loop integrity.

Strategic Replacement Solutions

The Westinghouse Ovation platform has been in continuous industrial service for over two decades, and many facilities are operating systems that are no longer supported under active OEM maintenance contracts. In this environment, sourcing original spare modules like the 2840A21G01 from a reliable industrial parts supplier is the most cost-effective strategy for extending system life without the capital expenditure of a full DCS migration.

Unlike third-party compatible boards that may require recalibration, driver updates, or controller configuration changes, the original 2840A21G01 is a direct drop-in replacement. Technicians can complete the swap during a brief planned outage window — typically under 30 minutes for an experienced engineer — without engaging the OEM’s field service team. This dramatically reduces both direct maintenance costs and the indirect costs of extended downtime.

For facilities managing multiple Ovation cabinets across a plant, establishing a minimum stock level of one or two 2840A21G01 boards per control room is a widely recommended practice. Analog output boards are among the highest-failure-rate modules in any DCS I/O subsystem due to their continuous electrical load and exposure to field-side transients. Holding a tested spare on the shelf converts a potential 48–72 hour emergency procurement event into a same-shift corrective action.

All units supplied by TOPNLMS are sourced from verified industrial channels, individually tested for output accuracy and channel isolation prior to shipment, and covered by a 12-month quality warranty. Each module is packaged in anti-static protective packaging with full traceability documentation to support your maintenance records and audit requirements.
