Westinghouse 2840A18G01 Upgrade Solution for OVATION DCS

Product Overview

Westinghouse 2840A18G01 Upgrade Solution for OVATION DCS: Seamless Transition from Legacy Relay Output Systems

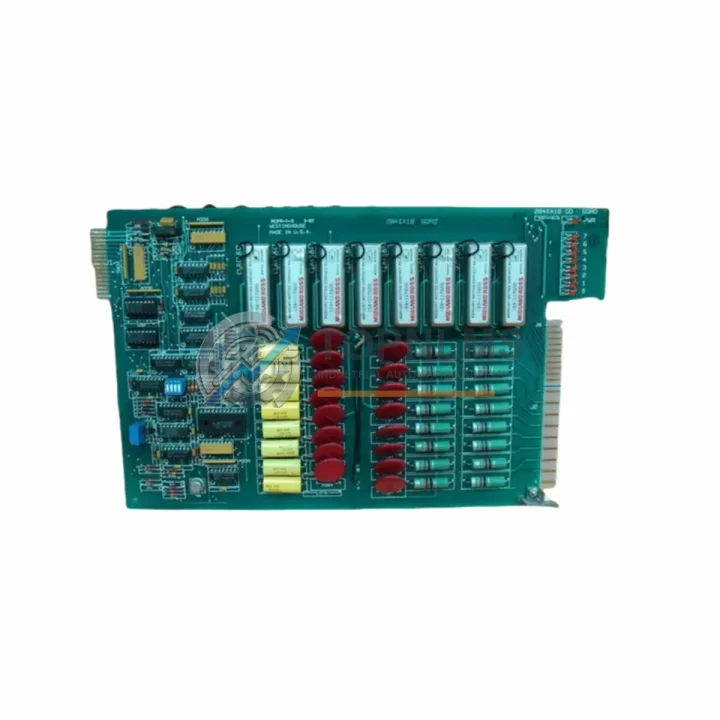

The Westinghouse 2840A18G01 Relay Output Board is a critical component within the OVATION Distributed Control System (DCS) platform, widely deployed across power generation, petrochemical, and process manufacturing facilities. As aging OVATION systems approach end-of-life and original spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement modules that maintain full backward compatibility with existing field wiring, rack infrastructure, and control logic.

TOPNLMS supplies the 2840A18G01 as a direct drop-in replacement for facilities currently operating legacy OVATION DCS cabinets. Our inventory is sourced from authorized channels and subjected to pre-shipment functional testing to ensure each unit meets original Westinghouse performance specifications before it leaves our warehouse in Xiamen.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful OVATION DCS modernization project rarely involves replacing a single module in isolation. When facilities undertake a relay output board swap or broader I/O refresh, several interconnected components typically require simultaneous attention to ensure system integrity and minimize unplanned downtime.

In most OVATION cabinet configurations, the 2840A18G01 operates alongside analog input modules such as the 5X00070G01 and digital input boards like the 5X00106G01, all sharing the same I/O rack backplane. When one relay output board shows signs of degradation — intermittent contact failures, relay chatter, or communication faults flagged in the OVATION operator station — it is prudent to audit adjacent modules in the same rack for similar wear patterns.

The rack backplane itself, often a Westinghouse OVATION I/O Rack Assembly, should be inspected for connector pin corrosion or backplane bus signal integrity issues before installing a replacement 2840A18G01. A compromised backplane can cause a new module to exhibit the same fault symptoms as the failed original, leading to misdiagnosis and extended outage time.

Power distribution within the OVATION cabinet is typically managed by a dedicated OVATION Power Supply Module (such as the 1C31227G01 series). Verifying that the 24 VDC rail supplying the I/O rack is within tolerance is a mandatory pre-installation step. An under-voltage condition on the power supply rail is a common root cause of relay output board failures that goes undetected until a replacement module is installed and exhibits the same fault.

For facilities migrating from older OVATION controller generations, the OVATION OCR400 Controller or its predecessor the OCR161 may be the host controller managing the relay output board. Confirming that the controller firmware version supports the 2840A18G01 module descriptor file is essential before commissioning. In most cases, no descriptor update is required for a like-for-like board swap, but facilities running controller firmware older than a certain baseline revision should consult their OVATION system documentation.

Communication between the OVATION controller and the I/O modules traverses the OVATION Control Network, typically implemented over a redundant Ethernet backbone using the proprietary OVATION protocol. The relay output board does not directly participate in network configuration, but network switches and media converters within the control cabinet — such as Hirschmann MICE or Westinghouse-approved managed switches — should be verified as operational during any I/O maintenance window.

Field termination for the 2840A18G01 relay outputs is typically routed through a marshalling cabinet terminal block assembly. During a board swap, it is good practice to verify terminal block torque values and inspect for oxidized connections, particularly in high-humidity or coastal plant environments. Signal isolators or relay interposing modules installed between the OVATION relay output and field devices should also be checked for contact wear.

For facilities undertaking a broader OVATION modernization — transitioning from legacy OVATION to a newer Emerson Ovation 3.x or hybrid architecture — the 2840A18G01 replacement serves as a cost-effective bridge strategy, extending the operational life of existing I/O infrastructure while the broader migration is planned and budgeted.

Retrofit Guidance FAQ

Q: Can I replace the 2840A18G01 without modifying field wiring?
A: Yes. The replacement board uses the same terminal block interface and slot footprint as the original. Field wiring connections are retained without modification.

Q: Do I need to update the OVATION control logic or module configuration after swapping the board?
A: In a direct like-for-like replacement, no logic changes are required. The OVATION Developer Studio will recognize the replacement module using the existing module descriptor. A cold restart of the I/O rack may be required depending on your OVATION version.

Q: Is the 2840A18G01 compatible with both redundant and non-redundant OVATION controller configurations?
A: Yes. The relay output board operates identically in both redundant and simplex OVATION controller architectures. Redundancy switchover behavior is managed at the controller level and is not affected by the I/O board replacement.

Q: What communication protocol does the 2840A18G01 use?
A: The board communicates via the OVATION proprietary backplane bus. It does not use Modbus, PROFIBUS, or FOUNDATION Fieldbus — it is exclusively compatible with the OVATION I/O rack backplane architecture.

Q: How do I verify the replacement board is functioning correctly after installation?
A: After installation, perform a forced output test from the OVATION operator station for each relay channel. Verify field device response and confirm no fault diagnostics are reported in the OVATION system log.

Warranty Assurance

Every 2840A18G01 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each module undergoes a pre-dispatch functional test to verify relay contact operation, backplane communication integrity, and power consumption within specification. Units that do not pass our outgoing quality check are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable within one business day. We maintain buffer stock of the 2840A18G01 to support rapid replacement dispatch without lead-time delays.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices to support import clearance and internal asset management processes. Bulk orders and long-term supply agreements are available for facilities managing multi-site OVATION DCS fleets.
