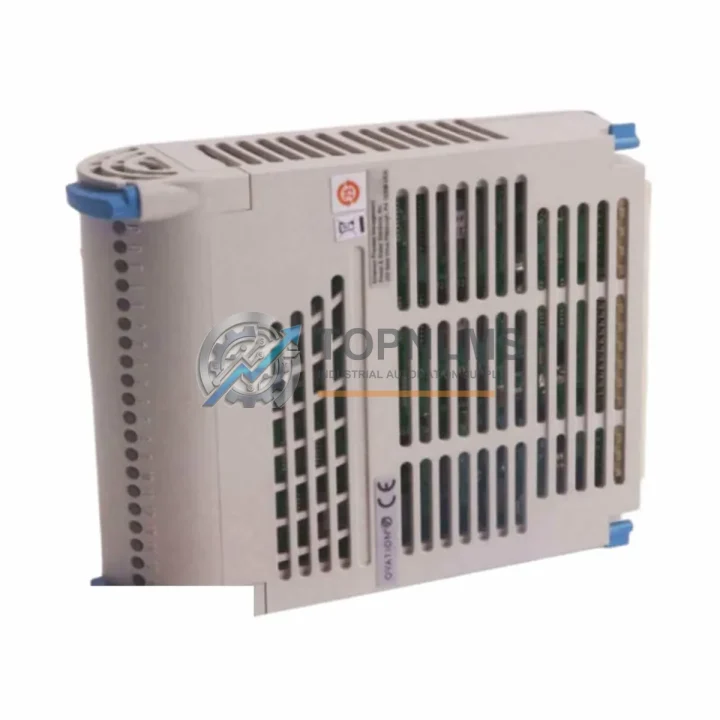

Westinghouse 1C31224G01 Replacement/Upgrade for Ovation DCS

Product Overview

Westinghouse 1C31224G01 Replacement/Upgrade Solution for Ovation DCS: Smooth Transition from Legacy Analog Input Systems

The Westinghouse 1C31224G01 is a proven Analog Input Module within the Ovation Distributed Control System (DCS) platform — a system widely deployed across power generation, water treatment, and process industries. As original equipment ages, procurement teams and control engineers increasingly face the challenge of sourcing direct replacements or planning structured upgrades that preserve existing wiring infrastructure, I/O mapping, and communication architecture. TOPNLMS maintains verified stock of the 1C31224G01 to support both emergency replacement and planned migration projects, with a 12-month warranty and pre-shipment functional testing on every unit.

When a legacy Ovation DCS node begins exhibiting analog signal drift, module fault alarms, or communication timeouts, the first priority is minimizing unplanned downtime. The 1C31224G01 slots directly into the existing Ovation controller rack, preserving the original field wiring terminations and eliminating the need for re-engineering the marshalling cabinet. Engineers familiar with the Ovation system will recognize that the module interfaces with the Ovation network via the proprietary OCR400 or OCR1100 controller, and the 1C31224G01 maintains full compatibility with both controller generations without firmware modification.

For sites planning a broader modernization — moving from an older Ovation 1.x or 2.x architecture toward Ovation 3.x or a hybrid SCADA integration — the 1C31224G01 serves as a stable interim component. It allows engineering teams to phase the upgrade, replacing failed or end-of-life modules one at a time while the broader system architecture is redesigned. This approach dramatically reduces the capital expenditure and risk associated with a full cutover, and it keeps the plant operational throughout the transition period.

Field installation of the 1C31224G01 follows the standard Ovation module insertion procedure: power down the affected I/O drop, seat the module into the designated slot on the Ovation I/O rack, and restore power. The Ovation controller automatically recognizes the module type via the rack backplane and loads the appropriate configuration from the controller database — no manual address setting or DIP switch configuration is required. This plug-and-play behavior is a key advantage when replacing modules during a narrow maintenance window.

Wiring compatibility is a critical consideration in any DCS module replacement. The 1C31224G01 uses the standard Ovation field termination assembly (FTA) connector scheme, meaning existing 4–20 mA analog signal cables, shielded twisted pairs, and grounding conductors connect without modification. Sites using the 5X00106G01 or 5X00119G01 FTA termination panels will find the replacement process straightforward, as the module-to-FTA interface is unchanged. This eliminates the risk of wiring errors during hot replacement and reduces commissioning time to minutes rather than hours.

From a communication protocol perspective, the 1C31224G01 operates natively on the Ovation network, which uses a deterministic, proprietary Ethernet-based protocol. Sites that have integrated their Ovation DCS with external systems via OPC DA, OPC UA, or Modbus TCP gateways — such as the 1C31166G01 communication interface module — will find that the analog input data from the replacement 1C31224G01 continues to flow through the existing data highway without reconfiguration. This is particularly important for plants that have integrated their DCS with a historian, MES, or SCADA layer.

Control cabinet space is rarely a concern with a like-for-like module swap, but engineers planning a rack consolidation should note that the 1C31224G01 occupies a single slot in the standard Ovation I/O rack. If the upgrade plan involves consolidating multiple legacy racks into a smaller footprint — for example, migrating from a full-size Ovation I/O rack to a compact drop using the 1C31234G01 or 1C31238G01 module variants — TOPNLMS can advise on slot mapping and rack power budget calculations to ensure the new configuration meets the system’s load requirements.

Power supply compatibility is another factor that engineers must verify during a module replacement. The 1C31224G01 draws power from the Ovation rack backplane, which is supplied by the rack power supply module — typically the 1C31129G01 or an equivalent redundant power supply pair. Before inserting a replacement module, it is good practice to verify that the rack power supply is within its rated output capacity, particularly if other modules in the same rack have been upgraded or if additional I/O points have been added since the original system commissioning.

For sites that have already migrated their primary control loops to a newer platform but retain legacy Ovation nodes for auxiliary monitoring — such as environmental compliance I/O, auxiliary equipment status, or historian data collection — the 1C31224G01 provides a cost-effective way to maintain those nodes without committing to a full platform replacement. Paired with the 1C31107G01 digital input module and the 1C31113G01 analog output module, a mixed I/O drop can be maintained in service for years beyond the original end-of-life date, supporting a phased decommissioning strategy.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Ovation DCS module replacement rarely involves a single component in isolation. During the migration or retrofit process, engineers typically need to verify or simultaneously replace several adjacent components to ensure system integrity. The 1C31224G01 analog input module works in close coordination with the rack power supply (1C31129G01), which must be confirmed to be within rated capacity before the new module is commissioned. The field termination assembly — such as the 5X00106G01 FTA panel — should be inspected for terminal corrosion or loose connections that may have contributed to the original module failure.

If the upgrade scope extends to the controller level, the OCR400 or OCR1100 controller module should be evaluated for firmware currency and memory capacity, particularly if new I/O points are being added as part of the modernization. Communication interface modules such as the 1C31166G01 may need to be reconfigured if the data highway topology changes during the upgrade. For sites adding new analog output loops as part of the same project, the 1C31113G01 analog output module is the natural companion to the 1C31224G01, sharing the same rack and FTA infrastructure.

Digital I/O requirements are often addressed simultaneously during an analog module replacement outage. The 1C31107G01 digital input module and 1C31110G01 digital output module are commonly stocked alongside the 1C31224G01 to allow a comprehensive I/O rack refresh in a single maintenance window. For sites integrating legacy Ovation nodes with newer SCADA or MES platforms, a signal isolator or protocol converter may be required at the marshalling cabinet level to bridge the Ovation network with Modbus RTU or PROFIBUS DP field devices.

Retrofit Guidance FAQ

Q: Can I replace the 1C31224G01 without shutting down the entire Ovation DCS?
A: In most Ovation configurations, individual I/O drops can be powered down independently without affecting the main controller or other drops. Consult your site’s Ovation system architecture diagram to confirm the drop isolation procedure before proceeding.

Q: Will the replacement module require re-downloading the controller configuration?
A: No. The Ovation controller automatically recognizes the module type from the rack backplane and applies the existing configuration. A full controller download is not required for a like-for-like module replacement.

Q: Is the 1C31224G01 compatible with both OCR400 and OCR1100 controllers?
A: Yes. The module is compatible with both controller generations and does not require firmware modification or configuration changes when used with either controller type.

Q: What should I check if analog signals are still drifting after replacing the module?
A: Verify the FTA terminal connections, check the shielding continuity of field cables, and confirm that the rack power supply output voltage is within specification. Signal drift after module replacement is most commonly caused by FTA terminal issues or power supply degradation rather than the module itself.

Q: Can this module be used in a mixed Ovation / third-party I/O architecture?
A: The 1C31224G01 is designed exclusively for the Ovation I/O rack. For hybrid architectures that include third-party I/O, a protocol gateway or signal isolator at the marshalling level is required to bridge the two systems.

Warranty Assurance

Every Westinghouse 1C31224G01 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional verification test to confirm analog signal accuracy, backplane communication integrity, and physical connector condition. Units that do not meet our acceptance criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is available to assist with installation questions, compatibility verification, and fault diagnosis. We understand that DCS module failures in critical infrastructure environments require rapid resolution, and our logistics team is structured to support express shipment to minimize plant downtime.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and certificate of conformance upon request. Bulk orders for maintenance spares programs are welcome, and we offer reserved stock arrangements for customers with ongoing Ovation DCS maintenance contracts.
