Westinghouse 1C31222G01 Replacement for Ovation DCS

Product Overview

Westinghouse 1C31222G01 Replacement for Ovation DCS: Seamless Transition & Legacy System Compatibility

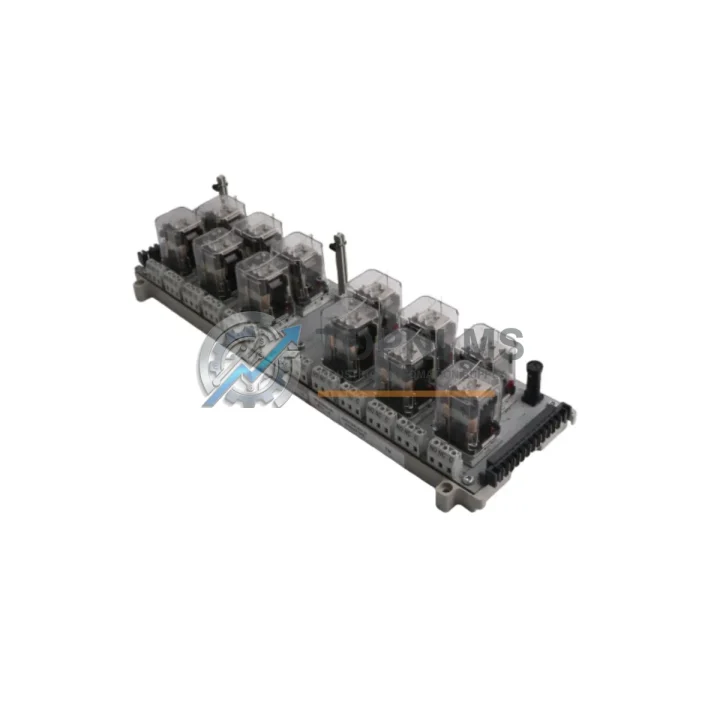

The Westinghouse 1C31222G01 / 5A26458G05 Relay Output Panel is a critical I/O component within the Ovation Distributed Control System (DCS) platform, widely deployed in power generation, petrochemical, and process-industry facilities. As Westinghouse Electric (now Emerson Automation Solutions under the Ovation brand) continues to evolve its control architecture, many sites operating legacy Ovation 1.x and Ovation 2.x systems face the challenge of sourcing discontinued or end-of-life relay output modules. This page provides a complete replacement and upgrade solution for the 1C31222G01, covering wiring compatibility, communication protocol continuity, rack integration, and field commissioning guidance.

The 1C31222G01 relay output panel (assembly part 5A26458G05) provides 16 channels of isolated relay contact outputs, designed for direct mounting into the standard Ovation I/O rack. Each channel supports Form C (SPDT) dry contacts rated for 2A at 120 VAC / 30 VDC, making it suitable for driving solenoid valves, motor starters, alarm annunciators, and interlock circuits. The module communicates with the Ovation controller via the proprietary Ovation I/O bus, and its field wiring terminates on a dedicated marshalling terminal block — meaning a replacement unit slots directly into the existing wiring infrastructure without re-termination.

For facilities migrating from older Westinghouse WDPF (Distributed Processing Family) systems or early Ovation 1.x nodes, the 1C31222G01 represents a forward-compatible upgrade path. Sites previously using the 1C31197G01 Digital Output Module or the 1C31166G01 Relay Output Module will find the 1C31222G01 a direct functional replacement with improved contact isolation and enhanced surge protection. The module’s physical form factor conforms to the standard Ovation I/O card dimensions, ensuring compatibility with existing 1C31107G01 I/O Rack assemblies and 1C31110G01 rack power supply modules without any mechanical modification to the control cabinet.

From a communication and system architecture perspective, the 1C31222G01 integrates natively with the Ovation OCR400 and OCR1100 controllers, as well as the legacy Ovation 1.x Drop Controller. No firmware changes or I/O configuration rebuilds are required when performing a like-for-like swap — the Ovation Developer Studio (ODS) engineering database retains the existing I/O point assignments, tag names, and alarm limits. For sites upgrading from a WDPF environment, a one-time I/O database migration using the Ovation migration toolkit is recommended, but the physical wiring to the relay output panel remains unchanged.

Power supply compatibility is another key consideration. The 1C31222G01 draws logic power from the rack’s 24 VDC bus, supplied by the 1C31110G01 Power Supply Module or the newer 5X00106G01 redundant power supply assembly. Field-side relay coil power is isolated and user-supplied, typically 24 VDC or 120 VAC depending on the driven device. This dual-power architecture ensures that a field wiring fault cannot propagate into the controller logic bus — a critical safety feature for SIL-rated interlock applications.

During retrofit and modernization projects, the 1C31222G01 is frequently installed alongside complementary Ovation I/O modules. Common co-installed components include the 1C31194G01 Analog Input Module for 4–20 mA process signals, the 1C31232G01 Digital Input Module for discrete field device status, and the 1C31238G01 Pulse Input Module for turbine speed and flow measurement. Communication infrastructure upgrades often involve the 1C31169G01 Ovation Network Interface Module to support 100 Mbps Ethernet connectivity between the I/O drop and the Ovation network. For sites adding HMI modernization in parallel, the Ovation Operator Station running on Windows Server with the Ovation OPC DA/UA server provides seamless data integration without changes to the I/O layer.

Field commissioning of a replacement 1C31222G01 follows a straightforward procedure: power down the affected I/O drop, extract the failed module from the rack, insert the replacement unit, restore power, and verify relay output status via the Ovation Developer Studio diagnostic screen. No jumper settings or DIP switch configuration is required — the module is auto-configured by the Ovation controller upon power-up. Loop checks for each relay channel can be performed using the Ovation Force Output function, eliminating the need for temporary jumpers at the marshalling panel.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Ovation DCS relay output panel replacement rarely involves a single module in isolation. In practice, modernization teams source a coordinated set of components to ensure system-wide compatibility and minimize return visits. Alongside the 1C31222G01, procurement teams commonly include the 1C31194G01 Analog Input Module to refresh aging 4–20 mA input channels, and the 1C31232G01 Digital Input Module to replace worn discrete input cards that share the same I/O rack. Power infrastructure upgrades typically involve the 1C31110G01 rack power supply or its redundant variant, the 5X00106G01 power supply assembly, ensuring stable 24 VDC logic power across all I/O drops.

For sites extending network reach or upgrading to 100 Mbps Ethernet, the 1C31169G01 Network Interface Module is a standard co-purchase. Turbine and compressor control applications frequently add the 1C31238G01 Pulse Input Module for speed and flow measurement. Where signal isolation between field devices and the I/O bus is required — particularly in high-voltage switchgear environments — DIN-rail mounted signal isolators and relay interposing modules are installed in the same control cabinet, preserving the existing marshalling wiring. HMI modernization projects running in parallel with I/O replacement often include Ovation Operator Station hardware and the associated Ovation OPC UA server license, enabling seamless data continuity from the field relay contacts all the way to the control room display.

Retrofit Guidance FAQ

Q: Can I replace the 1C31222G01 without re-terminating field wiring?
A: Yes. The module uses a dedicated marshalling terminal block that remains in place during card swap. Field wiring does not need to be disturbed.

Q: Do I need to modify the Ovation engineering database?
A: No, for a like-for-like replacement. The Ovation controller auto-configures the new module using the existing I/O database. Tag names, alarm limits, and logic assignments are preserved.

Q: Is the 1C31222G01 compatible with both OCR400 and OCR1100 controllers?
A: Yes. The module communicates via the standard Ovation I/O bus and is recognized by all current Ovation controller variants.

Q: What communication protocol does the module use?
A: The Ovation proprietary I/O bus protocol. No Modbus, PROFIBUS, or FOUNDATION Fieldbus configuration is required for this module.

Q: How much physical space does the module require?
A: One standard Ovation I/O card slot in the 1C31107G01 rack. No additional space or bracket modification is needed.

Q: Can this module be used in SIL-rated safety interlock applications?
A: The relay contacts are rated for safety-critical applications when used within a validated Ovation Safety System architecture. Consult your functional safety engineer for SIL verification.

Q: What is the lead time and shipping arrangement?
A: Units are in stock at our Xiamen warehouse. Orders are typically dispatched within 1–3 business days via DHL, FedEx, or UPS Express. Customs documentation and HS code declarations are provided for all international shipments.

Warranty Assurance

Every Westinghouse 1C31222G01 / 5A26458G05 Relay Output Panel supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including relay coil actuation testing, contact resistance measurement, and logic bus communication checks. Units that do not meet original Westinghouse performance specifications are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides advance replacement support — a verified replacement unit is dispatched before the defective module is returned, minimizing control system downtime. Our after-sales response team is reachable within 24 hours on business days. All warranty replacements are shipped with full test documentation and a certificate of conformance.

For procurement teams requiring additional assurance, we offer optional incoming inspection reports, serialized traceability records, and third-party calibration certificates on request. Bulk orders for plant-wide spares programs are accommodated with staged delivery schedules and consignment stock arrangements.
