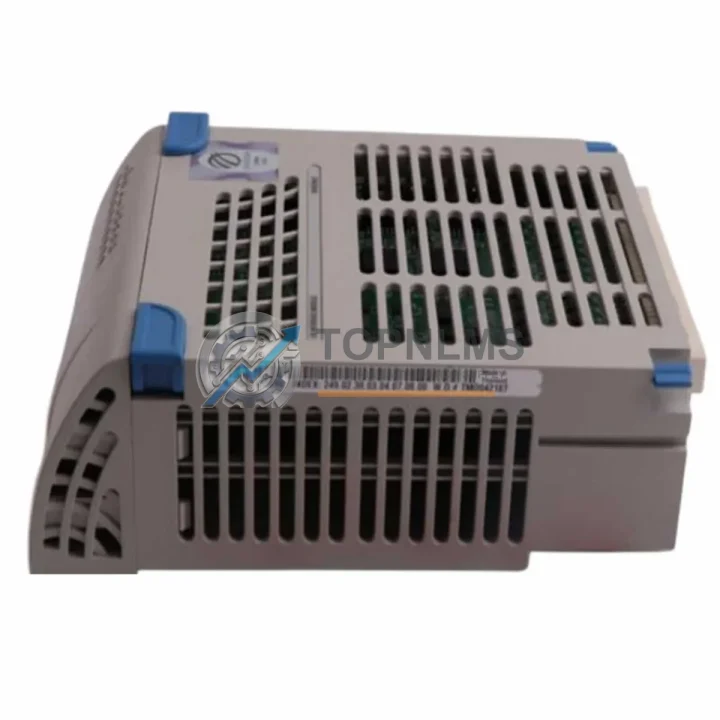

Westinghouse 1C31116G01 Replacement for WDPF Series

Product Overview

Westinghouse 1C31116G01 Replacement for WDPF Series: Smooth Migration & Legacy System Upgrade

The Westinghouse 1C31116G01 is a 16-channel analog input card designed for the WDPF (Westinghouse Distributed Processing Family) distributed control system platform. As WDPF systems approach end-of-life and OEM support becomes increasingly limited, plant engineers and procurement teams face mounting pressure to source verified replacement modules that maintain signal integrity, wiring compatibility, and system stability — without triggering a full DCS migration.

TOPNLMS supplies the 1C31116G01 as a direct drop-in replacement for aging WDPF installations. Each unit is sourced from verified industrial channels, inspected prior to dispatch, and backed by a 12-month warranty. Orders are processed and shipped within 24 hours from our Xiamen warehouse, supporting urgent maintenance windows and planned turnaround shutdowns alike.

Whether your facility is replacing a failed card, building a critical spare inventory, or executing a phased WDPF modernization, the 1C31116G01 provides the lowest-risk path to restoring analog input functionality across your existing control architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful WDPF analog input card replacement rarely involves a single module in isolation. In practice, field engineers replacing the 1C31116G01 often find themselves simultaneously addressing adjacent components that have reached the same service age. The WDPF rack backplane and its associated card cage should be inspected for corrosion or connector wear before inserting a replacement card — a degraded backplane connector is a common cause of intermittent analog signal faults that are misdiagnosed as card failures.

On the field wiring side, the 1C31116G01 interfaces with the plant’s existing terminal blocks and marshalling cabinets. In many WDPF installations, the 1C31224G01 analog output module occupies adjacent rack slots and shares the same field junction box wiring infrastructure. If the analog input card has failed due to field-side overvoltage or ground loop issues, the neighboring analog output card should be tested concurrently to avoid repeat failures after restoration.

For facilities running mixed WDPF and Ovation DCS architectures — a common scenario in power generation plants that have undergone partial modernization — the 5X00070G01 Ovation I/O module and 1C31234G01 WDPF digital input card are frequently part of the same upgrade scope. Ensuring that the WDPF data highway communication remains stable during card hot-swap or cold-swap procedures is critical; the 1C31107G01 WDPF communication module should be verified as operational before and after the analog input card replacement.

Power integrity is another key consideration. The WDPF power supply module feeding the affected rack should be load-tested if the facility has experienced unexplained card resets or analog drift. In aging control cabinets, a failing rack power supply is often the root cause of multiple simultaneous card failures. Replacing the 1C31116G01 without addressing a marginal power supply will result in premature failure of the new card.

For plants executing a broader WDPF-to-Ovation migration, the 1C31116G01 replacement can serve as a bridge strategy — maintaining WDPF analog input functionality in non-critical loops while Ovation controllers and 5X00119G01 Ovation analog input modules are commissioned in parallel on priority control loops. This phased approach minimizes production risk and allows engineering teams to validate the new DCS architecture before full cutover.

Signal conditioning accessories such as Westinghouse WDPF signal isolators and surge protection barriers installed at the marshalling cabinet level should also be inspected as part of any analog input card replacement project. These passive components degrade over time and can introduce offset errors or noise that are incorrectly attributed to the I/O card itself.

Retrofit Guidance FAQ

Q: Can I replace the 1C31116G01 without modifying field wiring?
A: Yes. The 1C31116G01 uses the standard WDPF field terminal interface. Existing 4–20 mA or voltage signal wiring connects directly to the same terminal block positions. No rewiring is required for a like-for-like card swap.

Q: Do I need to re-download the control program after replacing the card?
A: For a direct slot-for-slot replacement of the same part number, no program download is required. The WDPF system will recognize the card on the data highway and resume normal operation. If the replacement card is installed in a different rack slot, a configuration update via the WDPF engineering workstation may be necessary.

Q: Is the 1C31116G01 compatible with the WDPF data highway communication protocol?
A: Yes. The card communicates natively over the WDPF proprietary data highway. No protocol converters, gateways, or additional communication modules are required.

Q: What are the physical installation requirements?
A: The 1C31116G01 occupies a standard WDPF card slot. No additional mounting hardware, DIN rail adapters, or cabinet modifications are needed. Ensure the rack backplane connector is clean and undamaged before insertion.

Q: How do I verify the replacement card is functioning correctly after installation?
A: After insertion, monitor the card status LEDs and verify analog input readings on the WDPF operator station match expected field values. Cross-check against a calibrated field instrument on at least two channels before returning the loop to automatic control.

Q: Can this card be used as a spare for multiple WDPF systems at the same site?
A: Yes. The 1C31116G01 is interchangeable across WDPF racks of the same generation. Maintaining one or two spare cards in your site inventory is strongly recommended given the discontinued OEM status of this product.

Q: What if my application requires a different channel count or signal range?
A: TOPNLMS also supplies related WDPF analog I/O modules for different channel configurations and signal ranges. Contact our technical team at [email protected] with your full system requirements for a compatibility assessment.

Warranty Assurance

Every 1C31116G01 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and component health. Units that do not meet our quality threshold are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the fault and the customer’s operational requirements. Our after-sales response target is within 24 hours of a warranty claim submission. We understand that control system downtime is measured in production losses, not inconvenience — our warranty process is designed to match the urgency of industrial maintenance environments.

Orders are shipped from our Xiamen warehouse within 24 hours of payment confirmation. We support DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders. Export documentation, commercial invoices, and packing lists are provided as standard. For customers requiring third-party inspection certificates or specific country-of-origin documentation, please advise at the time of order.

TOPNLMS maintains stock of the 1C31116G01 and related WDPF components to support both emergency replacement and planned maintenance procurement. Bulk pricing is available for facilities building critical spare inventories. Contact us at [email protected] or +86 18359293191 for a formal quotation.
