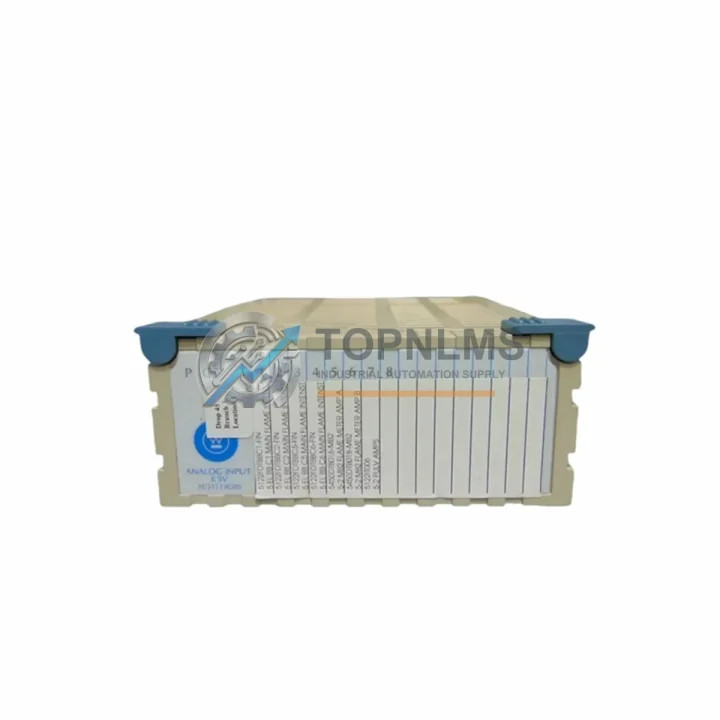

WESTINGHOUSE 1C31113G05 Ruggedized Analog Input Module

Product Overview

WESTINGHOUSE 1C31113G05 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The WESTINGHOUSE 1C31113G05 is a 16-channel analog input module engineered for the OVATION Distributed Control System (DCS) platform — one of the most trusted process control architectures deployed across power generation, oil & gas, water treatment, and heavy industrial facilities worldwide. Designed to operate continuously in environments characterized by extreme temperature swings, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 1C31113G05 delivers the signal integrity and system availability that mission-critical operations demand.

Unlike general-purpose I/O modules, the 1C31113G05 is purpose-built for the OVATION controller ecosystem, ensuring seamless integration with OVATION I/O buses, controller nodes, and engineering workstations without compatibility compromises. Its ruggedized PCB construction, conformal coating, and industrial-grade component selection allow it to sustain reliable 4–20 mA and voltage signal acquisition even when installed in control cabinets exposed to corrosive atmospheres, high-frequency vibration from rotating machinery, or transient voltage spikes from adjacent variable frequency drives and motor starters.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated OVATION DCS architecture, the 1C31113G05 analog input module operates as part of a coordinated I/O subsystem. It works in conjunction with the WESTINGHOUSE 1C31116G01 Analog Output Module to form closed-loop process control loops — the AI module reads field transmitter signals while the AO module drives final control elements such as control valves and actuators. Digital coordination is handled through companion modules such as the 1C31122G01 Digital Input Module and 1C31129G01 Digital Output Module, which manage discrete field signals from limit switches, solenoids, and motor contactors.

The module slots into OVATION I/O racks powered by dedicated WESTINGHOUSE OVATION I/O Power Supply modules (such as the 5X00119G01 series), which provide regulated, noise-filtered DC power to the entire I/O chassis — a critical factor in maintaining signal accuracy in electrically noisy plant environments. Communication between the I/O rack and the OVATION controller node is managed through the OVATION Controller Module (OCR400 series), which aggregates all analog and digital I/O data and executes the control strategy in real time.

For installations in hazardous classified areas — such as Zone 1 or Zone 2 gas atmospheres in refineries or offshore platforms — the 1C31113G05 is typically paired with WESTINGHOUSE OVATION Intrinsic Safety Barriers or Zener barriers installed between the field wiring and the module terminals, ensuring that energy levels in the hazardous zone remain below ignition thresholds. In high-vibration environments such as compressor stations or turbine halls, the module’s backplane-mounted design eliminates the mechanical stress points common in DIN-rail-mounted alternatives, contributing to longer mean time between failures (MTBF).

Facilities running parallel safety instrumented systems (SIS) alongside the OVATION DCS often integrate HIMA or Triconex Safety PLC modules for SIL 2/3 protection layers, with the 1C31113G05 feeding process variable data to the DCS historian and operator workstations while the SIS independently monitors trip conditions. This dual-layer architecture is standard practice in power plant boiler control, refinery distillation column management, and water treatment chemical dosing systems.

Application in Critical Infrastructure

The WESTINGHOUSE 1C31113G05 has an established deployment history across some of the most demanding industrial sectors globally:

Power Generation: In coal-fired, gas turbine, and nuclear auxiliary systems, the module monitors boiler drum level, steam pressure, feedwater flow, and flue gas oxygen content — all signals that require sub-second scan rates and high-resolution A/D conversion to maintain safe, efficient combustion. OVATION DCS installations at large utility plants routinely rely on dozens of 1C31113G05 modules distributed across multiple I/O racks in the main control room and remote I/O enclosures near the boiler front.

Oil & Gas Processing: Upstream and midstream facilities use the 1C31113G05 to monitor wellhead pressure, separator levels, pipeline flow rates, and heat exchanger temperatures. In these environments, the module’s EMI shielding is critical — variable speed pump drives and high-voltage switchgear generate significant electrical noise that can corrupt analog signals in lesser-rated modules.

Water & Wastewater Treatment: Municipal and industrial water treatment plants deploy OVATION DCS systems for chemical dosing control, filtration monitoring, and effluent quality measurement. The 1C31113G05 reads pH, turbidity, dissolved oxygen, and flow transmitter signals in environments with high humidity and chemical vapors — conditions that accelerate corrosion on unprotected electronics.

Metallurgy & Heavy Industry: Steel mills, aluminum smelters, and cement plants operate continuous production lines where unplanned shutdowns carry enormous financial penalties. The 1C31113G05’s ability to maintain signal integrity in the presence of arc furnace electromagnetic interference and mechanical vibration from rolling mills makes it a preferred choice for process engineers specifying DCS I/O in these facilities.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1C31113G05?
Every 1C31113G05 module shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions. Our warranty process includes direct technical support, advance replacement options for critical applications, and full documentation of the module’s pre-shipment test results upon request.

Q2: How is the module tested before shipment?
All 1C31113G05 units undergo a multi-point functional verification prior to dispatch. Testing includes power-on self-test validation, channel-by-channel analog signal accuracy verification, bus communication handshake confirmation, and visual inspection for physical damage or component degradation. Modules that do not pass all test criteria are quarantined and not offered for sale.

Q3: Is the 1C31113G05 compatible with all OVATION DCS versions?
The 1C31113G05 is designed for the WESTINGHOUSE / Emerson OVATION I/O platform and is compatible with standard OVATION I/O racks and backplanes used across OVATION system generations. For version-specific firmware compatibility or integration with upgraded OVATION controller nodes, our technical team can advise based on your site’s OVATION system revision and I/O rack configuration.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains dedicated inventory reserves for high-demand OVATION DCS components including the 1C31113G05 and related I/O modules. We support scheduled procurement programs, blanket purchase orders, and emergency same-day quotation for unplanned outage requirements. Contact our team to discuss volume pricing, lead times, and consignment stocking arrangements tailored to your plant’s maintenance schedule.
