WELD FASE F356-IOE Replacement Upgrade for F356 Series

Product Overview

WELD FASE F356-IOE Replacement & Upgrade Solution for F356 Series: Smooth Migration from Legacy I/O Systems

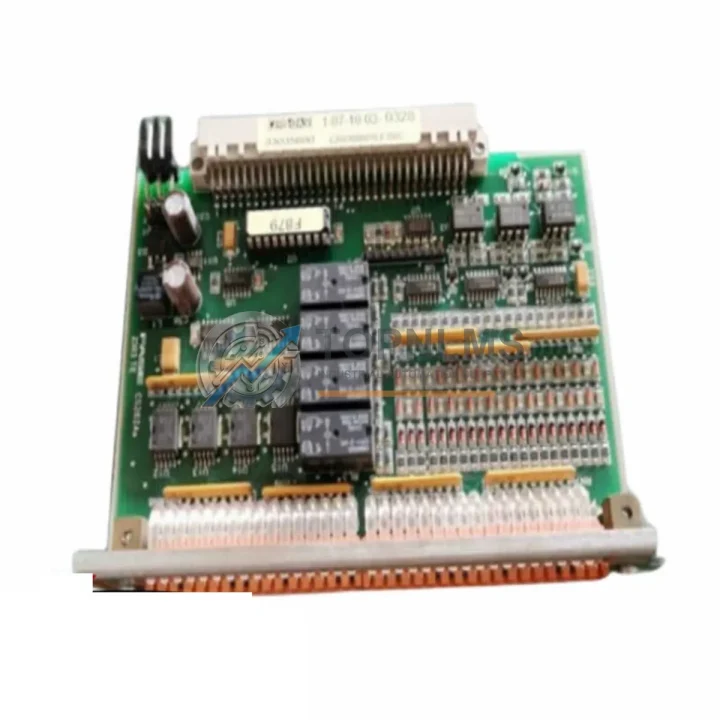

The WELD FASE F356-IOE is a direct-mount I/O Expansion Module engineered for the F356 PLC platform, purpose-built to serve as a drop-in replacement or capacity upgrade for aging, discontinued, or end-of-life I/O expansion hardware in industrial control systems. Whether your facility is migrating from an older distributed I/O architecture, retiring a legacy rack-based system, or simply sourcing a verified replacement for a failed module, the F356-IOE delivers the electrical compatibility, physical form factor, and communication protocol alignment that field engineers demand during live system retrofits.

Industrial automation environments rarely allow extended downtime windows. The F356-IOE is stocked and pre-tested at our Xiamen facility, enabling rapid dispatch to minimize production interruption. Each unit undergoes functional verification prior to shipment and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the F356-IOE rarely involves a single module swap. In practice, field engineers working on F356-platform control systems encounter a broader set of interdependent components that must be evaluated and, in many cases, simultaneously upgraded or replaced to ensure system integrity.

When expanding I/O capacity on an F356 rack, the F356 CPU module remains the central controller coordinating all expansion slots. Engineers should confirm that the CPU firmware version supports the additional I/O count introduced by the F356-IOE, particularly when the existing CPU was originally commissioned with a smaller I/O footprint. In systems where the rack is already near capacity, an F356 base unit or expansion rack chassis may be required to accommodate the new module alongside existing analog input modules and digital output modules already installed in the system.

Power distribution is another critical consideration. The F356 power supply module feeding the rack must have sufficient residual capacity to support the additional current draw of the F356-IOE. In aging installations where the power supply module has been in continuous service for several years, this is an opportune moment to evaluate its condition and replace it proactively to avoid nuisance trips after the I/O expansion is commissioned.

Communication integrity between the F356-IOE and the host CPU depends on the health of the rack backplane and, in distributed configurations, on the F356 communication module managing remote I/O links. If the system uses a PROFIBUS DP, MODBUS RTU, or proprietary F356 fieldbus interface to connect remote I/O stations, the communication module should be verified for firmware compatibility with the expanded I/O map. In some retrofit scenarios, a signal isolator or terminal block module is inserted between the field wiring and the new I/O module to protect against ground loops introduced when legacy cabling is reused.

For facilities that also operate HMI panels connected to the F356 PLC, the I/O expansion may require updating the HMI tag database to reflect new I/O addresses. This is typically a software-only change but should be planned into the commissioning schedule. Similarly, if a programming cable or USB-to-serial adapter is needed to connect a laptop to the F356 CPU for program upload and verification, ensuring that the correct cable type is on-site before the maintenance window begins will prevent unnecessary delays.

In control cabinet environments where space is constrained, the compact direct-mount form factor of the F356-IOE is a significant advantage over older modular I/O systems that required separate terminal blocks and wiring ducts. This allows the upgrade to proceed without structural modifications to the cabinet, preserving the existing cable routing and labeling scheme — a meaningful benefit when working in certified or hazardous-area installations where re-certification of modified enclosures would otherwise be required.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when installing the F356-IOE?
A: In most cases, yes. The F356-IOE is designed to maintain terminal layout compatibility with the F356 platform. Verify the terminal pitch and signal type (NPN/PNP, sourcing/sinking) against your existing wiring documentation before reconnecting. Where wiring labels are unclear, use a continuity tester to confirm point-to-point connections before powering the system.

Q: Do I need to modify my PLC program after installing the F356-IOE?
A: For a direct replacement of a failed module of the same type, no program changes are typically required. If you are expanding I/O capacity (adding the F356-IOE to an existing rack rather than replacing a failed unit), you will need to add the new I/O addresses to your program and update any HMI tag databases accordingly. Always perform a full I/O force test after installation to confirm correct signal mapping.

Q: What communication protocols does the F356-IOE support?
A: The F356-IOE communicates via the F356 internal rack bus. It does not require an independent fieldbus connection. In distributed I/O configurations where the F356 system uses an external communication module (e.g., PROFIBUS DP or MODBUS RTU gateway), the F356-IOE operates transparently within the rack and its I/O points are exposed through the CPU’s existing communication interface.

Q: Will the F356-IOE fit in my existing control cabinet without modification?
A: Yes. The F356-IOE uses the standard F356 direct-mount form factor, which is dimensionally consistent with other modules in the F356 family. No additional mounting hardware, DIN rail extensions, or cabinet modifications are required for a like-for-like replacement. For new rack installations, standard F356 rack mounting hardware applies.

Q: How do I verify the module is functioning correctly after installation?
A: After physical installation and wiring reconnection, power up the rack and observe the module status LEDs. A solid green RUN indicator confirms the module has been recognized by the CPU and is communicating normally. Use the PLC programming software to perform a forced I/O test on each channel. Compare results against your I/O schedule to confirm correct signal mapping before returning the system to automatic operation.

Q: What if my legacy module used a different I/O channel count?
A: If the F356-IOE has a different channel count than the module it replaces, update the I/O address table in your PLC program to reflect the actual channel configuration. Unused channels should be masked or disabled in the program to prevent spurious alarms. Contact our technical team with your existing I/O schedule if you need assistance mapping legacy addresses to the new module.

Warranty Assurance

Every WELD FASE F356-IOE shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers manufacturing defects, component failures, and operational malfunctions arising under normal industrial service conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or unauthorized modification.

Pre-Shipment Testing: Each unit is functionally tested at our Xiamen facility before dispatch. Testing includes power-on verification, communication bus handshake confirmation, and I/O channel continuity checks. A test record is retained for each unit and can be provided upon request.

Replacement Support: In the event of a warranty claim, TOPNLMS will arrange a replacement unit or issue a full refund at our discretion. To initiate a warranty claim, contact our support team with your order number, a description of the fault, and photographic evidence of the defect. We target a response within 24 business hours.

Shipping: Standard orders are dispatched within 1–3 business days from our Xiamen warehouse. Express shipping options are available for urgent replacement requirements. Tracking information is provided for all shipments.

Procurement Assurance: TOPNLMS sources industrial automation components through verified supply channels. All units are inspected upon receipt and again prior to shipment. We do not sell counterfeit, refurbished-as-new, or untested components. If you require a certificate of conformity, batch traceability documentation, or a formal quotation for procurement purposes, please contact us directly.

For technical inquiries, bulk pricing, or urgent replacement sourcing, contact our team:
📧 [email protected]
📞 +86 18359293191
