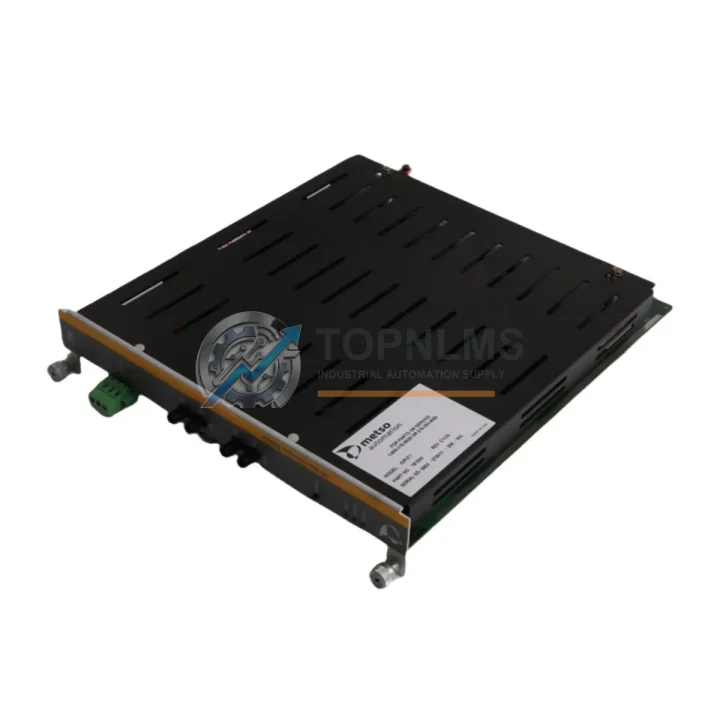

Metso IOP365 Replacement/Upgrade Solution for DNA DCS

Product Overview

Metso IOP365 Replacement/Upgrade Solution for DNA DCS: Smooth Migration from Legacy Analog I/O

When your Metso DNA distributed control system relies on isolated analog input signals to monitor critical process variables — flow, pressure, temperature, or level — the IOP365 Isolated Analog Input Module is the precision interface that keeps your loop control accurate and your plant running safely. As legacy DNA DCS installations age and original IOP365 units reach end-of-service life, sourcing a verified replacement becomes a time-sensitive priority. TOPNLMS maintains ready stock of the Metso IOP365 to support urgent replacement, planned maintenance shutdowns, and phased system modernization projects across refining, pulp and paper, power generation, and chemical processing industries.

The IOP365 is a galvanically isolated analog input module designed for the Metso DNA automation platform. It accepts standard 4–20 mA process signals and provides high-resolution conversion with channel-to-channel isolation, protecting both the field instruments and the controller backplane from ground loops and transient interference. Each channel is individually isolated, making the IOP365 particularly well-suited for installations where field wiring runs long distances or where multiple signal sources share a common process area with varying ground potentials.

In a typical DNA DCS cabinet, the IOP365 is mounted on a standard DNA I/O station baseplate alongside companion modules such as the IOP360 non-isolated analog input module, the IOP380 analog output module, and the IOP310 digital input module. When replacing a failed IOP365, the module slots directly into the existing baseplate without requiring rewiring of the field terminal blocks, provided the terminal unit and baseplate are undamaged. The DNA system’s online module replacement capability allows hot-swap in many configurations, significantly reducing process downtime during the exchange.

For sites upgrading from earlier-generation Metso Damatic XD or Damatic Classic I/O stations to the DNA platform, the IOP365 serves as the target module in a structured migration. The field wiring from legacy Damatic analog input cards can typically be re-terminated to DNA-compatible terminal units with minimal modification, as both platforms use standard 4–20 mA signal conventions. The DNA controller — whether an ACN, ACT, or ACF controller node — recognizes the IOP365 through the DNA bus and automatically maps the channel configuration from the engineering database, eliminating the need to manually re-enter scaling, alarm limits, or engineering unit assignments for each channel.

Communication between the IOP365 and the DNA controller node travels over the proprietary DNA I/O bus embedded in the baseplate. This architecture differs from fieldbus-based I/O systems such as PROFIBUS DP or FOUNDATION Fieldbus, so migration planning should account for the bus topology when expanding or reconfiguring I/O stations. If your modernization project involves integrating third-party PROFIBUS DP field devices alongside the DNA I/O, the DNA system supports this through dedicated PROFIBUS interface modules mounted in the same I/O station, allowing the IOP365 to coexist with fieldbus segments in a hybrid architecture.

Power supply compatibility is an important consideration during replacement. The IOP365 draws its operating power from the DNA I/O station power supply module, typically the PSU-DNA series. Before installing a replacement IOP365, verify that the station power supply is within its rated load capacity, particularly if additional modules have been added to the station since the original commissioning. An overloaded power supply can cause intermittent module faults that mimic hardware failures, leading to unnecessary module replacements.

For sites that have experienced repeated IOP365 failures in a specific slot, the root cause is often traced to field wiring issues rather than module defects. Common causes include excessive common-mode voltage on isolated channels, moisture ingress at field junction boxes, or incorrect loop power supply configuration. TOPNLMS recommends performing a wiring audit and insulation resistance test on the associated field cables before installing the replacement module, ensuring the new IOP365 is not immediately exposed to the same fault condition.

When the replacement IOP365 is installed and powered, the DNA engineering tool — typically DNA Operate or the DNA Engineering environment — will prompt the operator to confirm the module type and serial number. Once confirmed, the system restores the channel configuration from the project database, and the analog input signals return to service. In most cases, the entire replacement procedure from module removal to signal restoration can be completed within 15 to 30 minutes by a qualified DCS technician, minimizing the impact on continuous process operations.

For planned maintenance or capital upgrade projects, TOPNLMS can supply multiple IOP365 units as part of a consolidated spare parts order, along with related DNA I/O modules such as the IOP385 analog output module, IOP315 digital input module, IOP325 digital output module, and IOP350 pulse input module. Consolidating spare parts procurement through a single supplier simplifies logistics, reduces lead time risk, and ensures consistent firmware and hardware revision levels across all replacement modules — an important consideration for DNA systems running validated process control applications in regulated industries.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IOP365 replacement or DNA DCS migration rarely involves a single module in isolation. In practice, field engineers working on DNA I/O station upgrades will encounter a range of companion components that must be verified, replaced, or added as part of the same work order. The IOP360 non-isolated analog input module is frequently replaced alongside the IOP365 when a station is being fully refurbished, as both modules share the same baseplate slot form factor and terminal unit interface. Similarly, the IOP380 analog output module — used to drive control valves and variable-speed drives — is often included in the same spare parts kit to ensure the entire analog I/O complement of the station is renewed in a single maintenance window.

Digital I/O is equally important in a DNA station upgrade. The IOP310 digital input module and IOP320 digital output module handle discrete signals from field switches, solenoid valves, and motor starters. When migrating from a Damatic XD system, these digital I/O modules are typically replaced as a set with the analog modules, since the Damatic card cage and the DNA I/O station use different backplane connectors and power distribution architectures. Attempting to retain legacy digital I/O cards in a DNA station is not supported and will require full module replacement.

The DNA I/O station baseplate itself — the physical carrier that houses the IOP365 and its companion modules — should be inspected during any module replacement. Baseplates with damaged bus connectors or corroded terminal contacts can cause intermittent communication faults that are difficult to diagnose. If the baseplate is suspect, replacing it as part of the same outage is more cost-effective than scheduling a second shutdown. The DNA controller node, whether an ACN or ACF unit, communicates with all modules on the station baseplate and will report module-level diagnostics through the DNA Operate interface, helping maintenance teams identify whether a fault is isolated to the IOP365 or is systemic across the station.

For sites integrating HART-capable field instruments with the DNA system, the IOP365 supports HART pass-through communication, allowing asset management software to communicate with HART-enabled transmitters through the existing 4–20 mA wiring without additional multiplexers. This capability is particularly valuable during migration projects, as it allows the plant to retain existing HART field devices — pressure transmitters, flow meters, and temperature transmitters — while upgrading the I/O infrastructure. A HART modem or the DNA system’s built-in HART interface can be used to commission and verify field device parameters before the new IOP365 is placed in service.

Retrofit Guidance FAQ

Q: Can I replace a failed IOP365 without shutting down the DNA controller?
A: In most DNA configurations, yes. The DNA I/O bus supports online module replacement, allowing the IOP365 to be removed and reinserted while the controller node remains in service. The controller will report a module absence alarm during the swap, and analog input channels will hold their last value or go to a configured fault state. Once the replacement module is inserted and recognized, the channels return to normal scan within seconds. Confirm your specific DNA system version supports online replacement before proceeding.

Q: Do I need to reconfigure the channel parameters after installing a replacement IOP365?
A: No. The DNA system stores all channel configuration — including engineering units, scaling, alarm limits, and HART settings — in the project database on the DNA controller or engineering server. When a replacement IOP365 is inserted, the controller automatically downloads the configuration to the new module. No manual re-entry is required, provided the replacement module is the same hardware revision as the original.

Q: Is the IOP365 compatible with all DNA I/O station baseplates?
A: The IOP365 is designed for standard DNA I/O station baseplates. Verify the baseplate revision and slot assignment in your DNA engineering database before installation. Some early-revision baseplates may have firmware or connector compatibility restrictions with later IOP365 hardware revisions. TOPNLMS can advise on revision compatibility based on your system’s DNA software version.

Q: Can the IOP365 be used in a migration from Damatic XD to DNA without replacing field wiring?
A: In most cases, yes — the 4–20 mA field wiring can be re-terminated to DNA-compatible terminal units without replacement, provided the cable insulation is in good condition and the wiring meets DNA terminal unit specifications. A wiring audit and insulation resistance test are recommended before re-termination to identify any degraded cables that could cause signal quality issues after migration.

Q: What communication protocols does the IOP365 support for integration with third-party systems?
A: The IOP365 communicates exclusively over the Metso DNA I/O bus and does not natively support PROFIBUS, FOUNDATION Fieldbus, or Modbus. Integration with third-party systems is handled at the DNA controller level through dedicated interface modules or OPC server connections. HART pass-through is supported for field device asset management.

Q: How much physical space does the IOP365 require in the DNA I/O station?
A: The IOP365 occupies one standard slot on the DNA I/O station baseplate. No additional space is required beyond the standard slot allocation. Verify that the target slot is not reserved for a different module type in your DNA engineering database before installation.

Warranty Assurance

Every Metso IOP365 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection to verify module integrity, connector condition, and firmware revision. Units showing any signs of physical damage, corrosion, or non-original repair are excluded from our inventory and will not be shipped.

If a supplied IOP365 fails within the warranty period due to a manufacturing defect or latent hardware fault, TOPNLMS will provide a replacement unit at no additional cost, including outbound shipping. Our warranty process is straightforward: contact our technical team with the order reference and a description of the fault, and we will arrange return logistics and dispatch the replacement within 3 business days of fault confirmation.

For urgent plant situations where downtime cost is high, TOPNLMS offers priority dispatch from our Xiamen warehouse, with DHL Express and FedEx International Priority options available for next-business-day delivery to most industrial regions in Asia, Europe, and the Americas. Stock availability is confirmed at the time of order, and we do not accept orders for items we cannot ship within the agreed lead time.

Our procurement guarantee: if the supplied IOP365 is not the correct hardware revision for your DNA system and we cannot provide a compatible alternative, we will issue a full refund including return shipping costs. We stand behind every shipment with transparent after-sales support and a direct technical contact for installation and commissioning questions.

For volume orders — typically 3 or more units — we offer consolidated packaging, combined test documentation, and a single commercial invoice to simplify customs clearance for international shipments. Contact our sales team to discuss quantity pricing and lead time commitments for planned maintenance or capital project procurement.
