VAT 20446-UE24-ACQ1 Original Industrial Spare VMUS-2 Compatible

Product Overview

VAT 20446-UE24-ACQ1 Original Industrial Spare VMUS-2 Compatible: System Stability and Vacuum Process Maintenance Value

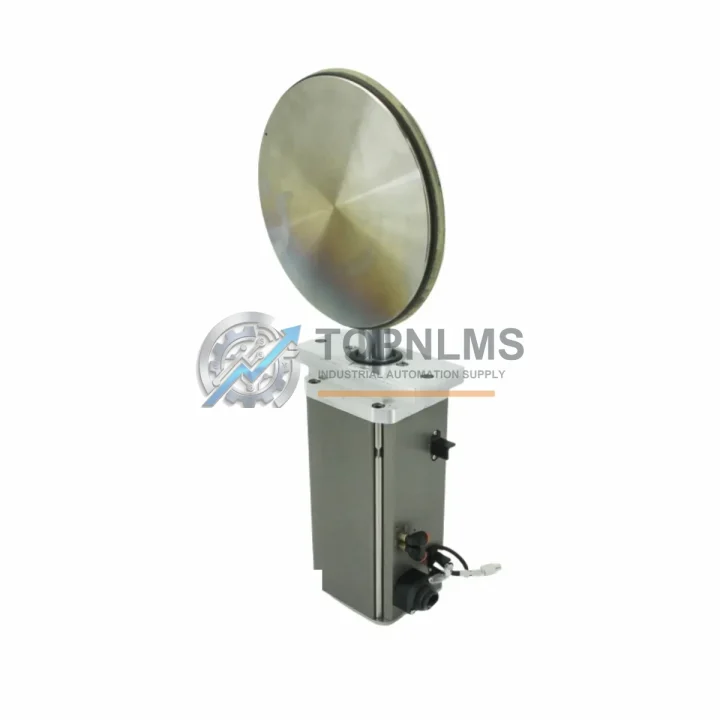

The VAT 20446-UE24-ACQ1 is a precision vacuum throttle valve from VAT Group AG’s VMUS-2 series, engineered for demanding industrial vacuum process environments including semiconductor fabrication, thin-film deposition, flat panel display manufacturing, and high-vacuum research systems. As a genuine original spare part, this valve plays a critical role in maintaining stable chamber pressure, protecting upstream and downstream process equipment, and ensuring repeatable process yields across production cycles.

In high-uptime facilities where vacuum system integrity is non-negotiable, having a verified replacement unit of the 20446-UE24-ACQ1 on the shelf is a fundamental element of any responsible spare parts strategy. Unplanned valve failure in a vacuum process line can cascade into extended chamber venting, contamination events, and multi-day production losses. Stocking this original VAT spare eliminates the lead-time risk associated with emergency procurement and keeps your maintenance team ready to execute a same-shift swap.

Critical Technical Specs

Preventive Maintenance Strategy

A vacuum throttle valve like the VAT 20446-UE24-ACQ1 does not operate in isolation. It is one node in a tightly interdependent vacuum system, and a disciplined preventive maintenance program must treat the entire process loop as a single reliability unit. When scheduling a planned replacement or inspection of this valve, experienced maintenance engineers routinely extend the scope of the work order to cover adjacent components that share the same wear cycle or failure mode.

The VAT VMUS-2 series gate valve installed on the same chamber foreline is a natural companion inspection item — both valves cycle at similar frequencies and are exposed to the same process chemistry. During the same maintenance window, technicians should verify the condition of the VAT Series 590 / 595 all-metal angle valve used for roughing isolation, as seal degradation there can introduce virtual leaks that mask throttle valve performance issues.

The MKS Instruments 627D or 628D Baratron capacitance manometer is the pressure feedback sensor that the throttle valve controller relies on for closed-loop pressure regulation. A drifting or contaminated Baratron will cause the 20446-UE24-ACQ1 to hunt or oscillate even after a successful valve replacement — always cross-check sensor calibration as part of the same PM event. Similarly, the MKS Type 250E or 651C pressure controller that drives the ACQ1 actuator signal should be verified for firmware integrity and setpoint accuracy.

On the pumping side, the Edwards iH600 or Pfeiffer HiPace turbomolecular pump bearing condition and foreline pressure should be logged during any throttle valve PM. Elevated foreline pressure caused by a degraded Edwards XDS or Leybold TRIVAC rotary vane backing pump will shorten the service life of the throttle valve seal and actuator. Replacing the backing pump’s oil mist filter element and checking the KF/ISO-K flexible bellows connectors for micro-cracks is a low-cost step that protects the higher-value components upstream.

For facilities running multi-chamber tools, the VAT 010 or 012 series transfer gate valve between load-lock and process chamber should be inspected on the same maintenance cycle. Contamination migration through a leaking transfer valve is a common root cause of premature throttle valve seal failure. Completing a full residual gas analyzer (RGA) scan after reassembly confirms system integrity before returning the chamber to production.

Strategic Replacement Solutions

The VAT 20446-UE24-ACQ1 is a direct original-specification replacement for aging VMUS-2 series throttle valves installed in legacy semiconductor and industrial vacuum systems. Many facilities operating equipment from the early 2000s through the 2010s still rely on this valve family, and OEM tool manufacturers have long since discontinued active production support for these platforms. Sourcing a verified original spare from a specialist industrial parts supplier is the most reliable path to restoring full process performance without the cost and risk of a full tool upgrade.

Unlike aftermarket or reverse-engineered alternatives, an original VAT 20446-UE24-ACQ1 maintains the precise flow conductance curve, actuator torque profile, and seal geometry that the OEM process recipe was qualified against. Substituting a non-original valve can introduce subtle pressure control deviations that degrade process uniformity and yield — a risk that is rarely justified by the cost savings. For facilities under ISO 9001 or SEMI S2 compliance frameworks, using original spare parts also simplifies change-control documentation and audit trails.

For maintenance teams managing a fleet of identical or similar vacuum tools, procuring two or three units of the 20446-UE24-ACQ1 in a single purchase order reduces per-unit cost, eliminates repeat sourcing effort, and ensures that a second unplanned failure can be resolved within hours rather than weeks. This bulk-spare strategy is standard practice in high-volume fabs and is strongly recommended for any facility where this valve model appears in more than two tool configurations.

Support FAQ

Q1: What is the warranty coverage for the VAT 20446-UE24-ACQ1?
All units ship with a 12-month warranty from the date of shipment. Coverage includes defects in materials and workmanship under normal operating conditions. Each unit undergoes pre-shipment functional verification including actuator response, seal integrity check, and position feedback calibration before dispatch.

Q2: How do I verify compatibility with my existing VMUS-2 vacuum system?
Compatibility is confirmed by matching the full part number 20446-UE24-ACQ1 against your tool’s BOM or the nameplate on the installed valve. The reference numbers 3870-04172 and 99F0065 are cross-reference identifiers used in some OEM documentation. If you have a different suffix variant (e.g., ACQ2 or UE48), contact us before ordering — we can verify interchangeability for your specific application.

Q3: What is the recommended inventory strategy for this valve in a multi-tool facility?
For facilities with 3 or more tools using the VMUS-2 series throttle valve, we recommend maintaining a minimum of 1–2 units on-site as a rotating spare. Given typical lead times for specialty vacuum components, a just-in-time procurement approach carries significant downtime risk. A pre-positioned spare allows same-shift replacement and reduces mean time to repair (MTTR) from days to under two hours.

Q4: Can this valve be refurbished, and what does the pre-shipment test include?
Refurbished units are available and are rebuilt to original VAT specifications using genuine seal kits and actuator components. Pre-shipment testing includes: leak-down test to confirm seal integrity, full actuator stroke verification (open/close/position hold), ACQ1 control signal response check, and visual inspection per VAT quality standards. A test report is available upon request. New original units are also stocked subject to availability.
