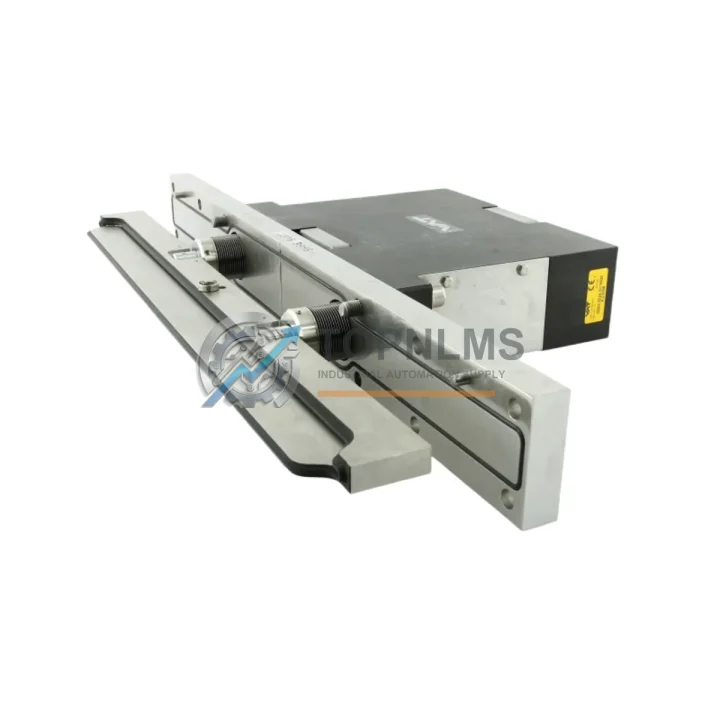

VAT 0200X-ZE24-1011 Replacement for Series 02

Product Overview

VAT 0200X-ZE24-1011 Replacement for Series 02: Seamless Transition & Legacy System Compatibility

Upgrading or replacing a VAT 0200X-ZE24-1011 80-S09/S10 pneumatic vacuum gate valve in an active semiconductor, flat-panel display, or industrial vacuum process line demands zero tolerance for downtime. This replacement unit is sourced, inspected, and dispatched from Xiamen to support engineers managing end-of-life VAT Series 02 valve populations across CVD, PVD, etch, and load-lock chamber applications. Whether your facility is executing a scheduled preventive maintenance swap, responding to an unplanned valve failure, or undertaking a broader chamber retrofit, this unit delivers a verified drop-in solution with full dimensional, pneumatic, and interface compatibility.

The VAT Series 02 gate valve platform has been a cornerstone of high-vacuum process equipment for decades. The 0200X-ZE24-1011 variant — configured with 80 mm clear aperture, S09/S10 pneumatic actuator options, and ZE24 solenoid interface — is widely deployed in OEM tool platforms from Applied Materials, Lam Research, Tokyo Electron, and ULVAC. As original OEM spare inventories tighten and lead times from authorized distributors extend to 16–26 weeks, sourcing a pre-tested replacement unit becomes a critical path decision for fab operations teams.

This unit carries part references 0200X-ZE24-1011 and cross-references 0190-18154 / ABX-X302 / 722A11TGA3FC, covering the full range of internal BOM aliases used across tool generations. Before dispatch, each valve undergoes dimensional verification, seal integrity check, and actuator stroke confirmation to ensure it meets VAT factory performance specifications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VAT 0200X-ZE24-1011 replacement rarely involves the gate valve in isolation. In most chamber retrofit or preventive maintenance scenarios, engineers simultaneously address adjacent components that share the same service interval or failure mode. When replacing this valve in a load-lock or transfer chamber, it is common practice to inspect and replace the VAT Series 02 roughing valve — typically a VAT 0100X or 0150X series unit — which operates on the same pneumatic supply manifold and shares the ZE24 solenoid wiring harness. Replacing both valves during the same scheduled maintenance window eliminates a second chamber vent cycle and reduces cumulative downtime.

The pneumatic supply to the S09/S10 actuator is typically routed through a solenoid valve manifold block, often a Festo MPA or SMC SY series unit, mounted inside the equipment cabinet. If the actuator response time has degraded, inspecting the solenoid manifold and its associated 5/2-way directional control valves is a logical next step before condemning the gate valve body itself. In many tool platforms, the same 24 VDC solenoid bus also drives the VAT Series 01 pendulum valve or throttle valve used for pressure control upstream of the turbomolecular pump — making a coordinated inspection of the full pneumatic circuit worthwhile.

On the vacuum instrumentation side, the gate valve position interlock is typically wired into the chamber PLC or tool controller I/O card. In older Applied Materials or Lam Research platforms, this may be a legacy Allen-Bradley SLC 500 digital input module or a Siemens S7-300 SM321 input card. When migrating to a newer control architecture — such as a Siemens S7-1500 or Allen-Bradley ControlLogix — the 24 VDC reed switch output from the VAT valve remains fully compatible with modern digital input modules, requiring only a wiring adapter or terminal block reassignment rather than a signal conditioner. A Phoenix Contact or Weidmüller DIN-rail terminal block set is typically sufficient to bridge the old and new wiring schemes within the existing control cabinet footprint.

For facilities upgrading the broader vacuum system, the turbomolecular pump controller — such as a Pfeiffer TC 400 or Edwards TIC — communicates gate valve interlock status via dry contact or RS-485 Modbus. The VAT 0200X-ZE24-1011 position feedback signals are fully compatible with these controller interlock inputs without firmware modification. Similarly, if the process tool uses a MKS or Brooks mass flow controller network on a DeviceNet or Profibus segment, the gate valve interlock logic can be mapped to the existing network without adding a new communication node.

Facilities managing a larger valve population across multiple chambers should consider stocking a small buffer of Series 02 gate valves alongside compatible O-ring kits and actuator rebuild sets. VAT offers field-serviceable actuator components for the S09/S10 series, and having a tested spare on the shelf reduces mean time to repair from days to hours. Our team can assist with multi-unit procurement planning and staggered delivery scheduling to match your maintenance calendar.

Retrofit Guidance FAQ

Q: Will this valve fit without modifying the existing pneumatic tubing or fittings?
A: Yes. The S09/S10 actuator port configuration is identical to the original. Standard 6 mm or 1/4″ push-fit pneumatic tubing connects directly to the actuator ports without adapters. Verify your supply pressure is within the 4–6 bar specification before reconnecting.

Q: Do I need to update the PLC program after replacing the valve?
A: No program changes are required. The position feedback signals (open/closed reed switch outputs) maintain the same logic levels and timing characteristics as the original unit. The solenoid coil impedance is matched to the original ZE24 specification, so no changes to the output card current rating or wiring are needed.

Q: Is the flange orientation fixed, or can it be rotated for installation clearance?
A: The Series 02 body allows actuator orientation adjustment in 90° increments during installation. This is particularly useful in tight chamber configurations where the original actuator position conflicts with adjacent plumbing or cable trays. Refer to the VAT Series 02 installation manual for the actuator repositioning procedure.

Q: What communication protocol does the valve position feedback use?
A: The standard ZE24 configuration uses dry contact reed switch outputs — no fieldbus protocol is involved at the valve level. The interlock logic is handled at the PLC or tool controller level. If your tool uses a VAT MONOVAT or VATGARD controller for networked valve management, the replacement unit is compatible with the same RS-232 or RS-485 command set.

Q: Can this valve be used in corrosive process gas environments?
A: The standard Viton/FKM seal configuration is suitable for most CVD and etch process gases. For highly corrosive halogen-based processes (e.g., ClF₃, HF), consult our team regarding FFKM or PTFE-lined seal options available for the Series 02 platform.

Q: What is the lead time and shipping method?
A: Units in stock ship within 1–3 business days from Xiamen via DHL Express or FedEx International Priority. Typical transit time to major semiconductor manufacturing regions (Taiwan, South Korea, Japan, USA, Germany) is 3–5 business days. Expedited same-day dispatch is available for confirmed orders placed before 14:00 CST.

Warranty Assurance

Every VAT 0200X-ZE24-1011 replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, seal integrity failures, and actuator mechanism faults under normal operating conditions. It does not cover damage resulting from improper installation, operation outside specified pressure or temperature ranges, or exposure to incompatible process chemistries without prior consultation.

Pre-shipment testing includes: visual inspection for body and flange damage, actuator stroke verification (open/close cycle count ≥ 10), solenoid coil resistance measurement, and leak check at the bonnet and seat seals. A test report is available upon request for quality-critical procurement processes.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim confirmation, with return shipping label provided at no cost. Our after-sales team responds to warranty inquiries within 24 hours on business days. For urgent field failures, expedited replacement dispatch is available with same-day processing for confirmed warranty cases.

Procurement teams requiring documentation for vendor qualification, incoming inspection, or ERP system entry can request a Certificate of Conformance, packing list with part number cross-reference, and commercial invoice with HS code declaration. All export documentation is prepared in compliance with Chinese customs regulations and destination country import requirements.
