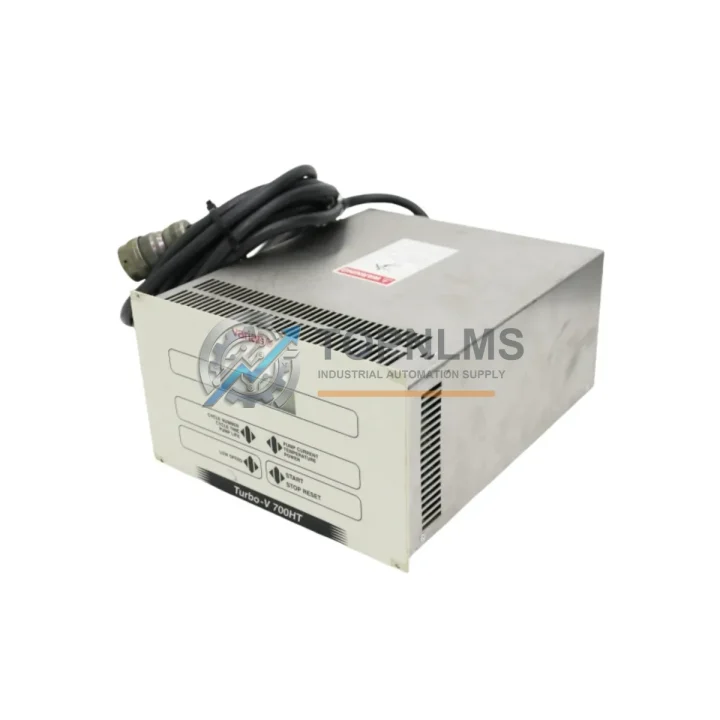

Varian V 700HT Ruggedized Turbo Pump Controller Module

Product Overview

Varian V 700HT Ruggedized Turbo Pump Controller Module for Harsh Industrial Environments

The Varian V 700HT GOT1000 GT1575-VTBA 101VMEJ106-9001 810-800081-012 is a high-performance turbomolecular pump controller engineered for continuous, uninterrupted operation in the most demanding industrial vacuum environments. Designed as part of Varian’s proven Turbo-V HT Series, this controller delivers exceptional electromagnetic interference (EMI) immunity, wide operating temperature tolerance, and robust vibration resistance — making it the preferred choice for semiconductor fabrication, analytical instrumentation, research facilities, and heavy industrial vacuum systems where uptime is non-negotiable.

Whether deployed in cleanroom environments, high-voltage test chambers, or continuous-process production lines, the V 700HT maintains stable rotational speed control and real-time diagnostic feedback under conditions that would compromise lesser controllers. Its ruggedized architecture ensures reliable performance even when subjected to power fluctuations, ambient temperature extremes, and mechanical shock — critical attributes for facilities operating 24/7 without scheduled downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

The V 700HT controller does not operate in isolation — it is a critical node within a broader vacuum and process control architecture. In semiconductor and analytical instrument environments, it is commonly integrated alongside Varian Turbo-V 550 MacroTorr turbopumps and Varian SH-110 dry scroll backing pumps, forming a complete oil-free vacuum train that eliminates hydrocarbon contamination risk. The controller’s RS-485 serial interface enables seamless communication with Siemens S7-300 / S7-400 PLC systems via dedicated gateway modules, allowing operators to monitor pump speed, power draw, and fault status directly from the main control panel.

For facilities running Profibus DP or Modbus RTU communication backbones, the V 700HT integrates cleanly with Siemens ET 200S distributed I/O modules and Phoenix Contact QUINT-series industrial power supplies, ensuring that the controller receives clean, regulated DC power even during grid disturbances. In high-vibration environments such as compressor rooms or heavy press lines, pairing the V 700HT with Varian Turbo-V Ferrofluidic Seal assemblies and vibration-isolation mounting brackets significantly extends bearing life and reduces unplanned maintenance intervals.

Process safety is further reinforced when the V 700HT is used alongside Pilz PNOZ safety relays or Siemens SIRIUS 3SK safety modules, which can trigger controlled pump deceleration sequences upon detection of emergency stop signals or interlock faults — preventing rotor damage and protecting downstream process equipment. For vacuum measurement and closed-loop pressure control, the controller pairs effectively with Pfeiffer Vacuum TPG 261 / TPG 362 gauge controllers and MKS Instruments 627D capacitance manometers, enabling precise process pressure regulation across multiple vacuum stages.

Application in Critical Infrastructure

The Varian V 700HT GOT1000 GT1575-VTBA finds its most demanding deployments in critical infrastructure sectors where vacuum integrity directly impacts product quality, personnel safety, and regulatory compliance. In semiconductor wafer fabrication, the controller manages turbopump spin-up and steady-state operation within CVD, PVD, and etch chambers, where even a momentary loss of vacuum can result in wafer contamination and costly batch failures. Its soft-start ramp control and real-time rotor speed feedback are essential for protecting fragile process chambers during pump-down sequences.

In oil and gas analytical laboratories and petrochemical refineries, the V 700HT supports mass spectrometry and gas chromatography systems that require ultra-high vacuum baselines for accurate trace-gas detection. The controller’s robust EMI shielding ensures measurement integrity even in electrically noisy environments adjacent to variable-frequency drives (VFDs), high-current bus bars, and large motor starters. Similarly, in power generation facilities — including nuclear, thermal, and hydroelectric plants — the controller supports turbine blade coating systems and SF₆ gas handling equipment, where vacuum system reliability is directly tied to plant safety protocols.

In metallurgical and materials processing applications such as vacuum arc remelting (VAR), electron beam melting (EBM), and physical vapor deposition (PVD) coating of cutting tools, the V 700HT sustains the deep vacuum levels required for contamination-free melt pools and dense, adherent coatings. Its wide operating temperature range and thermal protection circuitry make it equally suited for water treatment UV disinfection systems and mining sector gas analysis equipment, where ambient conditions are unpredictable and maintenance access is limited.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the V 700HT GOT1000 GT1575-VTBA?
The 12-month warranty covers all functional defects arising under normal operating conditions, including controller board failures, communication interface faults, and power stage malfunctions. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated input, or physical mishandling. TOPNLMS provides direct RMA support and replacement dispatch within 5 business days of confirmed fault diagnosis.

Q2: How is the V 700HT tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical integrity, power-on functional test verifying control board initialization and communication response, and load simulation to confirm output stage performance. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for OEM and system integrator customers.

Q3: Is the V 700HT compatible with third-party turbopumps or only Varian pumps?
The V 700HT is optimized for Varian Turbo-V HT series pumps, including the Turbo-V 700HT and compatible MacroTorr variants. Compatibility with third-party turbopumps (e.g., Pfeiffer HiPace, Edwards STP series) depends on motor winding specifications and communication protocol matching. TOPNLMS technical support can assist with compatibility verification prior to purchase — contact [email protected] with your pump model details.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for this SKU?
Yes. TOPNLMS maintains a dedicated inventory of Varian Turbo-V HT series controllers and associated spare parts, including the GOT1000 and GT1575-VTBA variants. For customers requiring guaranteed supply continuity — particularly MRO (maintenance, repair, and operations) procurement teams in semiconductor fabs, research institutions, and industrial plants — we offer blanket order agreements and priority stock reservation. Contact our sales team to discuss volume pricing and supply assurance programs.
