VARIAN MKS CDN500-38 E15006731 Ruggedized Control Box Module

Product Overview

VARIAN MKS CDN500-38 E15006731 Ruggedized Control Box Module: Industrial Resilience for Harsh Vacuum Environments

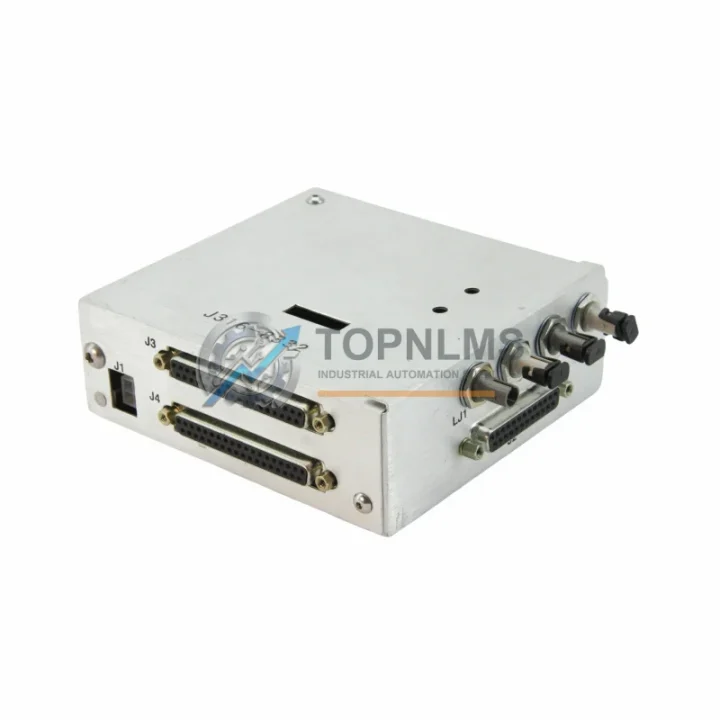

The VARIAN MKS CDN500-38 E15006731 is a ruggedized control box assembly engineered for continuous, fault-tolerant operation in the most demanding semiconductor fabrication and industrial vacuum environments. Designed under VARIAN’s CDN500 series architecture, this module delivers exceptional electromagnetic interference (EMI) shielding, thermal stability, and mechanical robustness — making it the preferred choice for process engineers and maintenance teams who cannot afford unplanned downtime.

Whether deployed in a cleanroom vacuum chamber, a high-temperature diffusion furnace, or a vibration-intensive ion implantation system, the CDN500-38 control box maintains signal integrity and operational continuity under conditions that would compromise lesser components. Its sealed enclosure and precision-engineered internal layout protect sensitive control circuitry from particulate contamination, humidity ingress, and the corrosive process gases common in semiconductor manufacturing.

Rugged Specifications Table

Comprehensive Protection Solutions

The CDN500-38 control box does not operate in isolation — it is a critical node within a broader vacuum and process control architecture. In a typical semiconductor fab or industrial vacuum system, this module interfaces directly with the VARIAN MKS 651C pressure controller and the MKS 600 series throttle valve controller to maintain precise chamber pressure regulation. Upstream, it communicates with VARIAN turbomolecular pump drive units such as the V70LP or V301 series, coordinating pump-down sequences and interlock logic to protect both the process and the equipment.

On the power conditioning side, the CDN500-38 relies on stable DC bus voltage delivered by industrial DIN-rail power supplies — typically 24 VDC units from established brands — to ensure that control logic remains unaffected by line transients or voltage sags common in heavy industrial facilities. The module’s internal relay outputs connect to VARIAN MKS dry pump interfaces and gate valve solenoid drivers, enabling automated vent-and-pump sequences without manual intervention.

For facilities running multi-chamber cluster tools, the CDN500-38 integrates with VARIAN MKS process gas management modules and mass flow controller (MFC) signal conditioners, ensuring that gas delivery and vacuum control remain synchronized. Its communication interface supports legacy RS-232 and RS-485 serial protocols, allowing seamless integration with existing fab host controllers, SCADA systems, and equipment automation frameworks without requiring protocol converters or middleware.

In control cabinet installations, the CDN500-38 is typically mounted alongside VARIAN MKS signal isolation modules, terminal block assemblies, and surge protection devices on a common backplane or DIN rail, forming a compact and serviceable vacuum control sub-system. This modular architecture simplifies both preventive maintenance and emergency spare-part replacement, reducing mean time to repair (MTTR) in high-availability production environments.

Application in Critical Infrastructure

The VARIAN MKS CDN500-38 E15006731 finds its most demanding deployments in critical infrastructure sectors where vacuum integrity is non-negotiable. In semiconductor wafer fabrication, it governs the pressure envelope of ion implantation chambers, where even momentary vacuum loss can result in wafer contamination, equipment damage, and costly process excursions. Its deterministic control logic and hardened I/O ensure that interlock responses occur within specification, protecting both the process tool and the wafer batch.

In flat panel display (FPD) manufacturing and solar cell PVD coating lines, the CDN500-38 manages the vacuum transitions between load-lock and process chambers, coordinating with gate valve actuators and turbomolecular pump controllers to maintain the ultra-high vacuum conditions required for thin-film deposition. The module’s resistance to process gas byproducts — including fluorine-based etch chemistries and metal-organic precursors — makes it a reliable long-term component in these corrosive environments.

Beyond semiconductor applications, the CDN500-38 is deployed in industrial R&D vacuum systems, electron beam welding equipment, vacuum heat treatment furnaces, and particle accelerator beam line vacuum control. In each of these settings, the module’s ability to maintain stable control under high-vibration, high-temperature, and high-EMI conditions translates directly into improved process yield, reduced maintenance intervals, and lower total cost of ownership.

For oil and gas facilities operating vacuum-assisted separation and degassing systems, and for power generation plants using vacuum interrupter switchgear, the CDN500-38’s robust construction and proven field reliability make it a trusted spare-parts investment for maintenance engineers responsible for continuous production uptime.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All VARIAN MKS CDN500-38 E15006731 units shipped by TOPNLMS carry a 12-month quality warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after technical verification. Warranty claims are processed directly through our technical support team at [email protected].

Q2: How is each unit tested before shipment?
Every CDN500-38 control box assembly undergoes pre-shipment functional verification, including power-on self-test, I/O continuity checks, and communication interface validation. Units sourced as refurbished are additionally subjected to burn-in testing and visual inspection for component-level integrity. A test report is available upon request for OEM and volume procurement customers.

Q3: Is this unit a direct drop-in replacement for existing CDN500-series installations?
Yes. The E15006731 is form-fit-function compatible with other CDN500-38 assemblies, including cross-reference part numbers E15010090, E11344270, 0090-B2971, and 0190-17964. No firmware modification or mechanical adaptation is required for standard replacement in VARIAN MKS vacuum control platforms. For non-standard configurations, our technical team can advise on compatibility prior to purchase.

Q4: Can TOPNLMS support long-term or repeat procurement for maintenance programs?
Absolutely. TOPNLMS maintains standing inventory of CDN500-series components and can support scheduled maintenance procurement programs, blanket purchase orders, and emergency spot-buy requirements. We offer consistent lead times, stable pricing for volume commitments, and dedicated account management for industrial customers with ongoing spare-parts needs. Contact us at [email protected] or +86 18359293191 to discuss your program requirements.
