Vacon PC00459G Original Industrial Spare NX Series Compatible: Ensuring System Stability in Demanding Environments

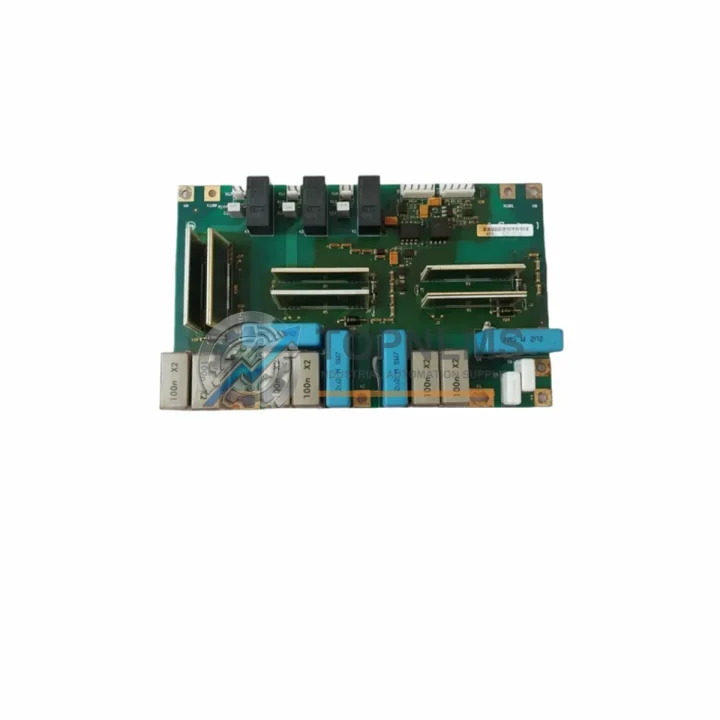

The Vacon PC00459G is an original gate drive trigger board engineered specifically for the Vacon NX Series variable frequency drive (VFD) platform — one of the most widely deployed AC drive families in global industrial automation. Whether you are managing a continuous process line, a water treatment facility, a paper mill, or a heavy-duty HVAC system, the PC00459G is a mission-critical component that directly governs IGBT switching performance, output waveform integrity, and overall drive reliability. Sourcing a genuine replacement board is not merely a maintenance decision — it is a system stability investment.

At TOPNLMS, every PC00459G unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month quality warranty. Our industrial spare parts inventory is maintained to support urgent breakdown scenarios as well as planned preventive maintenance programs, ensuring your procurement team can act decisively when downtime risk is highest.

Critical Technical Specs

Preventive Maintenance Strategy

A gate drive trigger board failure in a Vacon NX Series drive rarely occurs in isolation. In most field cases, the root cause involves sustained thermal stress, DC bus voltage transients, or upstream power quality issues that simultaneously degrade multiple components within the same control cabinet. A disciplined preventive maintenance approach — rather than reactive replacement — is the most effective way to protect production continuity.

When scheduling a planned overhaul that includes the PC00459G, maintenance engineers should simultaneously inspect the Vacon NX power supply board (typically the APFIFF or ASFIFF series), as power rail instability is a leading contributor to gate drive circuit stress. The DC bus capacitor bank should be checked for capacitance drift and ESR degradation — aged capacitors generate voltage ripple that directly impacts IGBT switching waveforms and accelerates gate driver wear.

The IGBT module itself warrants inspection whenever the gate drive board is replaced. A compromised IGBT — showing elevated leakage current or asymmetric switching behavior — will destroy a new gate driver board within hours of restart if not addressed concurrently. Similarly, the NX Series control board (NXOPTA1 or equivalent option board) should be verified for firmware integrity and communication health, particularly in drives that have experienced unexpected fault trips.

Thermal management components are equally important. The cooling fan assembly for the NX Series heatsink should be tested for airflow performance and bearing condition — reduced cooling directly raises junction temperatures on the gate drive circuitry. Thermistor sensors embedded in the heatsink should be resistance-checked to confirm accurate temperature feedback to the drive’s protection logic.

On the input side, inspect the EMC filter module and input choke (line reactor) for signs of insulation degradation or core saturation. These components buffer the drive from grid-side disturbances; a failing input choke exposes the entire power stage — including the PC00459G — to destructive voltage spikes. If the drive is part of a multi-drive panel, the common DC bus fuse assembly and brake resistor connection terminals should also be verified for continuity and thermal discoloration.

For facilities running legacy Vacon NX installations beyond their original design life, proactive stocking of the PC00459G gate drive board, alongside the NX power supply board, control board, and IGBT module, constitutes a minimum viable spare parts kit. This approach eliminates multi-week lead times during emergency breakdowns and is strongly recommended for any drive controlling a critical process pump, compressor, or conveyor system.

Strategic Replacement Solutions

The Vacon NX Series has been in active deployment for over two decades, and many installations are now operating well beyond their original component lifecycle. OEM support for older NX variants is increasingly constrained, making the availability of original spare boards like the PC00459G a decisive factor in whether aging systems can be economically extended or must be fully replaced.

Replacing the PC00459G with a genuine original board — rather than an aftermarket substitute — preserves the precise gate timing characteristics that the NX Series firmware expects. Aftermarket gate drivers with mismatched propagation delays or drive current ratings can introduce shoot-through risk, increased switching losses, and premature IGBT failure. For maintenance teams responsible for system uptime guarantees, the cost differential between original and non-original boards is negligible compared to the liability of a repeat failure.

TOPNLMS maintains stock of the PC00459G to support both emergency breakdown replacement and planned lifecycle refresh programs. Our pre-shipment testing protocol validates gate signal output, isolation integrity, and board-level power rail performance before dispatch. Units are packaged in anti-static ESD-safe materials with full traceability documentation, ready for immediate installation upon receipt.

For procurement teams managing multi-site industrial operations, we offer volume pricing and priority allocation agreements to ensure PC00459G availability is not a bottleneck during scheduled plant shutdowns or annual maintenance windows.

Support FAQ

Q1: How do I confirm the PC00459G is compatible with my specific Vacon NX drive model?
The PC00459G is designed for the Vacon NX Series VFD platform. Compatibility is determined by your drive’s power rating, voltage class, and hardware revision. Please share your drive’s nameplate data or existing board part number with our technical team at [email protected] and we will confirm fitment before shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact us with your order reference and a description of the fault. We will arrange return logistics and provide a replacement or refund upon verification.

Q3: Can I install the PC00459G myself, or is specialist equipment required?
Board-level replacement of the PC00459G requires standard ESD precautions, basic PCB handling skills, and familiarity with VFD cabinet safety procedures — including full DC bus discharge verification before opening the drive. No specialist programming or calibration is required after installation; the NX Series drive recognizes the replacement board automatically on power-up. For sites without in-house drive maintenance capability, we recommend engaging a qualified VFD service technician.

Q4: How should I manage PC00459G inventory for a multi-drive facility?
For facilities operating five or more Vacon NX drives, we recommend maintaining a minimum of one PC00459G per ten drives as a standing spare. Drives in continuous-duty or critical-process applications warrant a higher ratio. Spare boards should be stored in their original ESD packaging in a dry, temperature-controlled environment. Annual inventory audits should verify that stored boards have not exceeded their recommended shelf storage period and that firmware-dependent components remain current with your installed drive versions.
