VACON PC00252 Ruggedized AC Drive Control Board for Harsh Environments

Product Overview

VACON PC00252 Ruggedized AC Drive Control Board for Harsh Environments

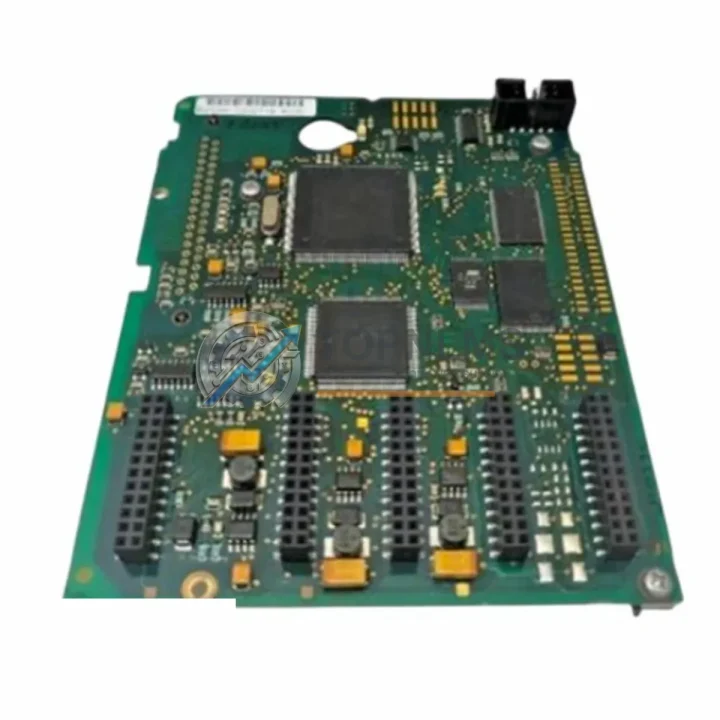

The VACON PC00252 is the core control board of the VACON NX Series AC drive platform — one of the most widely deployed variable frequency drive (VFD) architectures in global heavy industry. Engineered to operate continuously in demanding industrial environments, the PC00252 delivers the processing power, signal integrity, and thermal resilience required to sustain reliable motor control across petrochemical plants, mining operations, water treatment facilities, steel mills, and offshore installations. Whether you are maintaining a critical pump drive, a conveyor system, or a compressor train, the PC00252 is the intelligence at the heart of your VACON NX drive cabinet.

Designed and manufactured in Finland to VACON’s exacting quality standards, the PC00252 control board integrates seamlessly with the full NX Series drive family, including the VACON NXS, NXP, and NXL platforms. Its robust PCB construction, conformal coating, and wide operating temperature range make it a preferred replacement and spare-part choice for maintenance engineers who cannot afford unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

The VACON PC00252 control board does not operate in isolation — it is the command center of a tightly integrated drive system. In a typical NX Series drive cabinet, the PC00252 interfaces directly with the VACON NX Power Unit (IGBT power stage) and the VACON NX I/O Expander Board to manage analog and digital signal routing for motor feedback, process setpoints, and safety interlocks. When paired with a VACON NX Fieldbus Option Board — such as the OPTE3 for PROFIBUS DP or the OPTC3 for CANopen — the PC00252 enables seamless integration into plant-wide DCS and SCADA architectures, allowing centralized supervisory control without sacrificing local drive autonomy.

In safety-critical installations, the PC00252 is frequently deployed alongside VACON NX Safe Torque Off (STO) modules, which provide IEC 62061 SIL 2 / EN ISO 13849-1 PLd-compliant emergency stop functionality without full drive de-energization — a key requirement in continuous process industries. For installations requiring precise motor feedback, the VACON NX Encoder Interface Board (OPTBE or OPTBF) connects directly to the PC00252 option slot, enabling closed-loop vector control for high-precision positioning and tension control applications.

Power quality and upstream protection are equally important. The PC00252-equipped NX drive is typically protected by a VACON NX Line Filter (EMC Filter) and a VACON NX dU/dt Output Filter to suppress voltage spikes and reduce motor insulation stress — particularly important in long-cable installations common in mining and offshore environments. A VACON NX Brake Chopper Unit and associated braking resistor are often installed in the same cabinet to handle regenerative energy during rapid deceleration of high-inertia loads such as centrifuges, hoists, and crushers.

For panel builders and system integrators, the PC00252 is a trusted component in control cabinets that also house Siemens SIMATIC S7-300/S7-400 PLC modules, Phoenix Contact terminal blocks, and Weidmüller surge protection devices — all working in concert to deliver a complete, standards-compliant motor control center (MCC) solution.

Application in Critical Infrastructure

The VACON PC00252 has earned its reputation in some of the world’s most demanding industrial environments. In oil and gas upstream and midstream facilities, NX Series drives equipped with the PC00252 control board regulate submersible pump motors, gas compressors, and wellhead injection systems — often operating continuously for years without intervention in ambient temperatures exceeding 45°C and in the presence of corrosive hydrogen sulfide atmospheres.

In mining and mineral processing, the PC00252 manages the variable-speed drives on ball mills, SAG mills, conveyor belts, and slurry pumps. These applications subject the control board to intense vibration, airborne silica dust, and wide voltage fluctuations from diesel generator sets — conditions that lesser control boards cannot sustain. The PC00252’s conformal-coated PCB and robust connector design are specifically engineered to resist these stresses.

In municipal and industrial water treatment, the PC00252 enables precise flow control on centrifugal pumps and blowers, reducing energy consumption by up to 50% compared to throttle-valve control while simultaneously protecting pump infrastructure from water hammer and cavitation. Its RS-485 communication capability allows direct integration with SCADA systems for remote monitoring and alarm management.

In power generation and utilities — including thermal, hydro, and wind — the PC00252 controls auxiliary drives such as cooling fans, feed pumps, and fuel handling conveyors. Its wide input voltage tolerance and robust EMC performance ensure stable operation even in the electrically noisy environment of a generator hall or switchyard. In steel and metals production, the PC00252 drives rolling mill auxiliary motors, fume extraction fans, and ladle transfer cars, where thermal cycling and electromagnetic interference from arc furnaces present constant challenges to control electronics.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the VACON PC00252?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the PC00252 fails due to a component or workmanship defect within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated specifications, or physical mishandling.

Q2: How is the PC00252 tested before shipment?
Every VACON PC00252 unit dispatched by TOPNLMS undergoes a pre-shipment functional verification process. New and surplus-new units are inspected for physical integrity, connector condition, and component completeness. Refurbished units are bench-tested on a compatible VACON NX drive platform to verify correct initialization, I/O response, and communication port functionality before packaging. A test report is available upon request for critical spare-part orders.

Q3: Is the PC00252 compatible with all VACON NX Series drive variants?
The PC00252 is the standard control board for the VACON NX Series platform and is compatible with NXS, NXP, and NXL drive variants across the full power range. Compatibility with specific firmware versions and option board combinations should be confirmed against your drive’s nameplate data and VACON NX hardware manual. TOPNLMS technical support can assist with compatibility verification prior to purchase — contact us at [email protected].

Q4: Can TOPNLMS support long-term supply of the PC00252 for ongoing maintenance programs?
Yes. TOPNLMS maintains strategic stock of high-demand VACON NX Series spare parts, including the PC00252, to support planned maintenance programs, emergency breakdowns, and capital project builds. We can provide blanket purchase agreements, reserved stock arrangements, and priority dispatch for customers with critical infrastructure requirements. Contact our team to discuss your annual spare-part planning needs.
