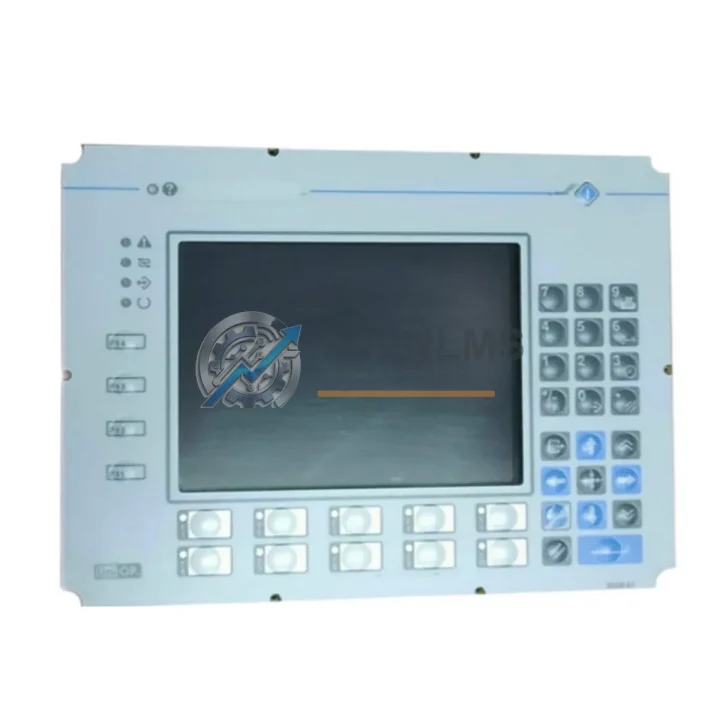

UNIOP BKDC-16-0045 Ruggedized HMI Panel: Industrial Resilience in Harsh Environments

The UNIOP BKDC-16-0045 is a compact, ruggedized HMI operator panel engineered for continuous, reliable operation in the most demanding industrial environments. Designed and manufactured by UNIOP — a globally recognized leader in industrial human-machine interface technology — the BKDC-16-0045 delivers exceptional display clarity, robust input handling, and proven electromagnetic compatibility in settings where standard panels simply cannot survive. Whether deployed on a high-temperature steel mill floor, inside a dust-laden mining control cabinet, or within a vibration-intensive offshore platform enclosure, this operator panel maintains stable communication and precise operator control without compromise.

Built on UNIOP’s BKDC Series platform, the BKDC-16-0045 is purpose-built for integration with PLC-based and DCS-based control architectures. Its compact form factor fits standard DIN-rail and panel-mount enclosures, making it a direct-fit replacement or upgrade for aging operator terminals across a wide range of industrial control systems. The panel supports serial and fieldbus communication protocols commonly used in legacy and modern automation systems, ensuring seamless interoperability with existing infrastructure without costly rewiring or software overhauls.

Rugged Specifications Table

Comprehensive Protection Solutions

The UNIOP BKDC-16-0045 does not operate in isolation — it is the operator-facing nerve center of a broader, integrated control architecture. In a typical industrial control cabinet, this HMI panel works in concert with a UNIOP eTOP series or BKDC-compatible PLC CPU module, coordinating real-time process data display and operator command input. Alongside it, I/O expansion modules — such as digital input/output cards and analog signal conditioners — feed live field data into the control loop, which the BKDC-16-0045 visualizes for the operator with minimal latency.

Power integrity is critical in harsh environments. The BKDC-16-0045 is typically paired with a 24 VDC industrial power supply unit featuring surge protection and wide-input voltage tolerance, ensuring the HMI remains operational even during grid fluctuations common in heavy industrial facilities. Upstream, a DIN-rail mounted circuit breaker or fuse terminal block — such as those from the Phoenix Contact or Weidmüller terminal module families — provides overcurrent protection for the entire panel assembly.

Communication reliability is maintained through RS-485 serial communication modules or PROFIBUS DP interface cards, which connect the BKDC-16-0045 to upstream PLC racks or distributed DCS nodes. In environments with severe electromagnetic interference — such as near variable frequency drives (VFDs) or large motor starters — shielded communication cables and ferrite-core EMI suppression components are recommended alongside the panel to maintain signal integrity. Safety relay modules and safety I/O modules integrated into the same control cabinet ensure that emergency stop commands issued through the BKDC-16-0045 interface are executed with the required SIL-rated response times.

For cabinet-level organization, DIN-rail terminal blocks, cable duct systems, and labeling components complete the installation. When the BKDC-16-0045 is used as a replacement unit in an existing UNIOP BKDC Series installation, the panel’s compact footprint and standardized connector pinout allow for rapid swap-out, minimizing production downtime during scheduled maintenance or emergency replacement scenarios.

Application in Critical Infrastructure

Across critical infrastructure sectors, the UNIOP BKDC-16-0045 has established a track record of dependable performance in environments that would degrade lesser operator panels within months.

In oil and gas upstream and midstream facilities, the BKDC-16-0045 is deployed in wellhead control panels and pipeline SCADA substations, where ambient temperatures fluctuate widely, hydrocarbon vapors are present, and vibration from pumping equipment is constant. Its sealed front panel and robust keypad mechanism resist ingress of dust and moisture, maintaining legible display output and responsive key actuation even after years of continuous service.

In mining and mineral processing operations, the panel is installed in conveyor control stations and crusher automation cabinets, where fine particulate matter and mechanical shock are unavoidable. The BKDC-16-0045’s EMI-hardened design ensures that proximity to large variable-speed drives and high-current motor control centers does not corrupt the communication link between the HMI and the PLC rack.

In power generation and electrical utilities, including coal-fired, hydroelectric, and renewable energy plants, the BKDC-16-0045 serves as the local operator interface for turbine control panels, transformer protection relay cabinets, and switchgear automation systems. Its 24 VDC power input aligns with standard substation auxiliary power systems, simplifying integration.

In water and wastewater treatment facilities, where high humidity, chemical vapors, and continuous 24/7 operation are the norm, the BKDC-16-0045 provides operators with reliable access to pump control, valve sequencing, and alarm acknowledgment functions. Its low power consumption and fanless design eliminate moving-part failure modes, contributing to the extended mean time between failures (MTBF) demanded by municipal utility operators.

In metallurgy and steel production, the panel withstands radiant heat from furnace proximity, heavy vibration from rolling mill equipment, and the electromagnetic noise generated by large induction heating systems — conditions that validate the BKDC Series’ reputation for industrial-grade resilience.
