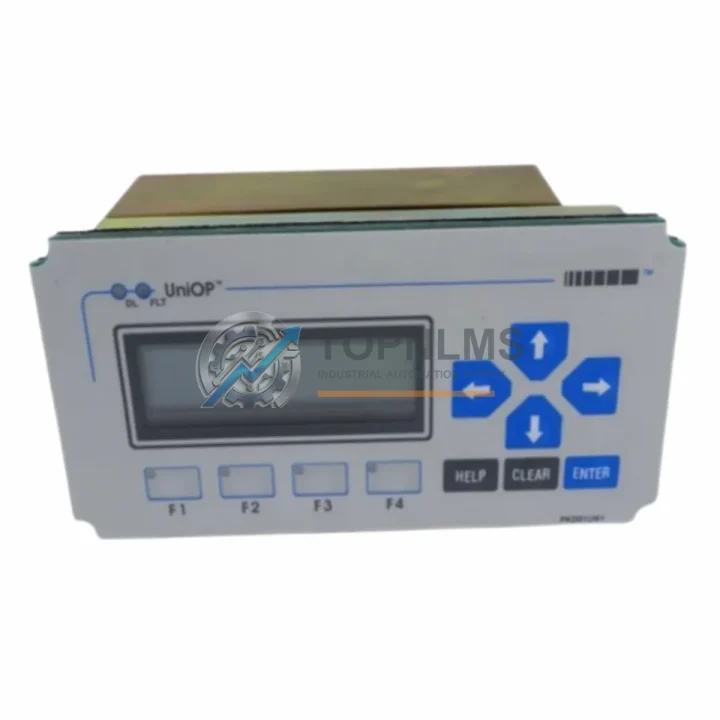

UNIOP MD01R-02 0042 Original Industrial Spare MD01R Compatible

Product Overview

UNIOP MD01R-02 0042 Original Industrial Spare MD01R Compatible: System Stability & Maintenance Value

In modern industrial automation environments, the reliability of human-machine interface (HMI) components is directly tied to production uptime and operational continuity. The UNIOP MD01R-02 0042 is an original spare part from UNIOP’s MD01R series — a compact, panel-mount HMI operator interface widely deployed in manufacturing lines, process control cabinets, and legacy automation systems across Europe and Asia. Sourcing a verified original replacement unit is the single most effective step a maintenance engineer can take to restore system stability after an HMI failure, and to prevent unplanned downtime before it occurs.

At TOPNLMS, every MD01R-02 0042 unit is individually tested prior to dispatch, ships with full documentation, and is backed by a 12-month warranty. Whether you are responding to an emergency panel failure or building a strategic spare-parts inventory for a long-running production line, this unit delivers the compatibility, form-factor accuracy, and electrical integrity required for a drop-in replacement.

Critical Technical Specs

Preventive Maintenance Strategy

An HMI panel failure rarely occurs in isolation. In most industrial control cabinets, the operator interface is the front-end of a tightly integrated system — and when it fails, it is often a signal that adjacent components are under stress. A disciplined preventive maintenance approach treats the MD01R-02 0042 replacement as the starting point of a broader cabinet inspection, not the end of it.

When replacing or inspecting the UNIOP MD01R-02 0042, maintenance teams should simultaneously audit the 24 VDC power supply module feeding the panel — voltage ripple and supply degradation are leading causes of HMI display failure and communication errors. The serial communication cable (RS-232 or RS-485, depending on host PLC configuration) should be inspected for insulation wear, connector corrosion, and secure termination, as intermittent communication faults are frequently misdiagnosed as panel hardware failures.

The host PLC CPU module — whether a Mitsubishi FX/Q-series, Siemens S7-300/400, or equivalent — should be checked for firmware version compatibility with the replacement HMI unit. In older installations, the PLC I/O modules (digital input and output cards) adjacent to the HMI in the same rack should be visually inspected for relay contact wear and terminal block loosening, which can cause erratic signal behavior that appears as HMI malfunction.

For cabinets running continuous process lines, it is good practice to inspect the signal isolator modules and relay output modules in the same electrical loop as the HMI. These components share the same 24 VDC bus and are subject to the same thermal cycling and vibration stresses. A fuse module or circuit protection block protecting the HMI power circuit should also be tested — a slow-blow fuse that has partially degraded will cause intermittent resets that are difficult to diagnose without a spare on hand.

If the control cabinet includes a communication gateway or protocol converter (for example, a PROFIBUS-to-serial bridge or an Ethernet-to-RS485 converter), this device should be power-cycled and its firmware version logged during the same maintenance window. Finally, the terminal strips and DIN-rail mounted components in the cabinet — including grounding bars and cable duct covers — should be inspected for heat discoloration, which is an early indicator of overload conditions that will eventually affect the HMI and surrounding modules.

Maintaining a minimum stock of one spare MD01R-02 0042 unit alongside a spare power supply module and a set of communication cables eliminates the most common causes of extended downtime in MD01R-equipped control systems.

Strategic Replacement Solutions

The UNIOP MD01R series was widely deployed throughout the 1990s and 2000s in European and Asian manufacturing facilities. Many of these systems remain in active production service, supported by a combination of original spare parts and careful maintenance. The MD01R-02 0042 is a direct form-fit-function replacement for worn or failed units in this series, requiring no software reconfiguration when swapping within the same hardware revision.

For facilities managing legacy system life extension, sourcing original UNIOP MD01R-02 0042 units from a verified supplier is significantly more cost-effective than a full HMI platform migration. A platform migration requires new HMI software development, PLC communication driver updates, operator retraining, and extended commissioning time — costs that can easily exceed the value of the production line’s remaining service life. A verified original spare, by contrast, restores full functionality within the time it takes to swap the panel and reconnect the communication cable.

TOPNLMS maintains stock of MD01R-02 0042 units specifically to support maintenance teams operating under time pressure. Each unit is powered on and communication-tested before shipment. Orders placed before the daily cut-off ship the same business day, with express freight options available for emergency breakdown situations. The 12-month warranty covers both component failure and latent defects identified within the warranty period.

Support FAQ

Q1: Is the MD01R-02 0042 a direct drop-in replacement for my existing UNIOP panel?
Yes — within the MD01R series, the MD01R-02 0042 is a direct hardware replacement. No panel cutout modification is required. You should verify the communication protocol (RS-232 vs RS-485) and baud rate settings match your existing configuration before powering up the replacement unit.

Q2: How do you verify the unit before shipment?
Every MD01R-02 0042 unit at TOPNLMS is powered on and subjected to a functional communication test prior to packaging. Units that do not pass the test are not shipped. A test report is available on request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The warranty covers hardware failure under normal operating conditions, including display failure, communication port failure, and power input circuit failure. It does not cover physical damage caused by incorrect installation voltage, reverse polarity, or mechanical impact. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: How should I plan my spare-parts inventory for MD01R-series systems?
For production lines with a single MD01R-equipped control station, we recommend maintaining one cold spare on-site. For multi-station lines or facilities with three or more MD01R panels in service, a minimum of two spare units is advisable. Given the age of the MD01R platform, sourcing spares proactively — rather than reactively after a failure — is strongly recommended, as market availability of original units continues to decline.
