Schneider Electric TSX3710001 Ruggedized Discrete I/O Module

Product Overview

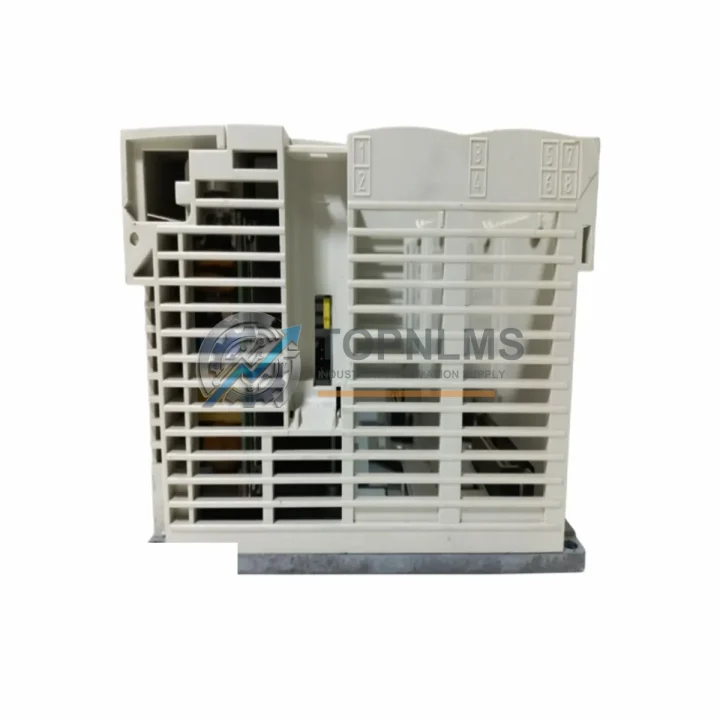

Schneider Electric TSX3710001 Ruggedized Discrete I/O Module for Harsh Environments

The Schneider Electric TSX3710001 is a ruggedized discrete I/O expansion module engineered for the TSX Micro series PLC platform, purpose-built to deliver uncompromising reliability in the most demanding industrial environments. Whether deployed in high-temperature foundries, moisture-laden water treatment facilities, dust-saturated mining galleries, or vibration-intensive heavy manufacturing lines, the TSX3710001 maintains stable signal integrity and deterministic I/O response under conditions that would compromise lesser components. Its robust construction reflects Schneider Electric’s decades of expertise in industrial automation hardware, making it a trusted backbone for control architectures where downtime is not an option.

Designed to integrate seamlessly with the TSX Micro PLC family — including the TSX3722001, TSX3722101, and TSX3740101 CPU modules — the TSX3710001 expands the discrete I/O capacity of the base controller without introducing latency or compatibility risk. Its DIN-rail-mountable form factor fits neatly into standard industrial control cabinets alongside companion components such as the TSX SUP 1011 power supply module, TSX DM 57 programming terminal, and TSX SCM 2116 communication module. This tight ecosystem integration reduces wiring complexity and simplifies commissioning in time-critical plant environments.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated TSX Micro control system, the TSX3710001 does not operate in isolation — it forms part of a layered protection architecture. The module’s discrete inputs receive field signals from proximity sensors, limit switches, and safety interlock circuits, while its transistor outputs drive actuators, solenoid valves, and motor starter coils with precise, repeatable switching. When paired with the TSX SAZ 10 safety relay module, the system gains certified safe-state logic for emergency stop and light curtain integration, meeting the requirements of EN ISO 13849-1 Category 3 architectures.

Power quality is equally critical in harsh environments. The TSX SUP 1011 24 V DC power supply module provides regulated, filtered power to the TSX3710001 and its connected field devices, suppressing voltage spikes and transients common in heavy industrial sites. For applications requiring distributed I/O across large plant footprints, the TSX3710001 can be networked via the TSX SCM 2116 Uni-Telway/Modbus communication module, enabling remote I/O expansion without sacrificing scan-cycle determinism.

Terminal wiring integrity is maintained through Schneider Electric ABE7 pre-wired sub-bases and TWDFCW30K connection cables, which reduce field wiring errors and accelerate maintenance turnaround. In control cabinets where space is at a premium, the TSX3710001’s compact footprint coexists with Zelio Logic smart relays, Altivar 312 variable frequency drives, and Preventa XPS safety modules — all sharing the same 24 V DC bus and DIN rail infrastructure. This architectural coherence is a key reason why maintenance engineers specify genuine Schneider Electric TSX Micro components rather than generic substitutes when planning spare-parts inventories for continuous production lines.

Application in Critical Infrastructure

The TSX3710001 has earned a strong track record across critical infrastructure sectors where control system failures carry severe operational, safety, and financial consequences. In upstream oil and gas facilities, it monitors wellhead pressure switches and controls emergency shutdown valve actuators, operating reliably in ambient temperatures that fluctuate between sub-zero nights and high-heat process environments. Its EMC immunity — validated to IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), and IEC 61000-4-5 (surge) — ensures that high-voltage switching transients from nearby variable frequency drives and transformer banks do not corrupt I/O signals or trigger spurious outputs.

In underground mining operations, where coal dust, silica particulate, and mechanical vibration are constant hazards, the TSX3710001 is typically housed in IP65-rated stainless steel enclosures. Its vibration-resistant terminal connections and conformal-coated PCB construction prevent premature failure from the shock loads transmitted by conveyor drives and rock-crushing equipment. Water treatment plants rely on the module to manage pump sequencing, valve positioning, and chemical dosing interlocks across multiple treatment stages — applications where a single I/O fault can trigger regulatory non-compliance events.

In metallurgical and steel-making facilities, the TSX3710001 controls cooling water flow valves, fume extraction dampers, and ladle transfer interlocks in environments where ambient temperatures regularly exceed 50°C and electromagnetic interference from induction furnaces is severe. Power generation plants — both thermal and hydroelectric — deploy it in turbine governor control panels and switchyard protection circuits, where the module’s deterministic response time and high noise immunity are non-negotiable requirements. Across all these sectors, the ability to source a genuine, tested, and warranted TSX3710001 replacement unit on short notice is a critical factor in minimizing mean time to repair (MTTR) and protecting production continuity.

Security & Quality FAQ

Q1: Does the TSX3710001 come with a warranty, and what does it cover?
Yes. Every TSX3710001 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period, we provide a replacement unit or full refund after technical verification. Our warranty process is straightforward — contact [email protected] with your order number and fault description to initiate a claim.

Q2: How is each unit tested before shipment?
All TSX3710001 modules undergo a multi-point pre-shipment inspection that includes visual inspection for physical damage, power-on functional verification of all discrete I/O channels, and communication handshake testing with a TSX Micro CPU. Units that fail any test stage are quarantined and not shipped. A test report is available upon request for customers with quality management system requirements.

Q3: Is the TSX3710001 compatible with all TSX Micro CPU variants?
The TSX3710001 is designed for the TSX Micro series (TSX 37-xx family) and is compatible with TSX3722001, TSX3722101, TSX3740101, and related CPU modules. It is not directly compatible with TSX Premium or Modicon M340 platforms without an appropriate adapter or migration strategy. If you are unsure about compatibility with your specific control system configuration, our technical team can advise based on your CPU reference and software version.

Q4: Can TOPNLMS support long-term supply and replacement planning for TSX Micro components?
Yes. TOPNLMS maintains a dedicated inventory of TSX Micro series components — including I/O modules, CPU units, power supplies, and communication modules — to support customers with ongoing maintenance contracts, planned shutdowns, and emergency breakdown requirements. We can provide multi-unit quotations, reserved stock agreements, and advance replacement programs for critical infrastructure operators who cannot afford extended lead times from standard distribution channels. Contact us at [email protected] or +86 18359293191 to discuss your supply continuity requirements.
