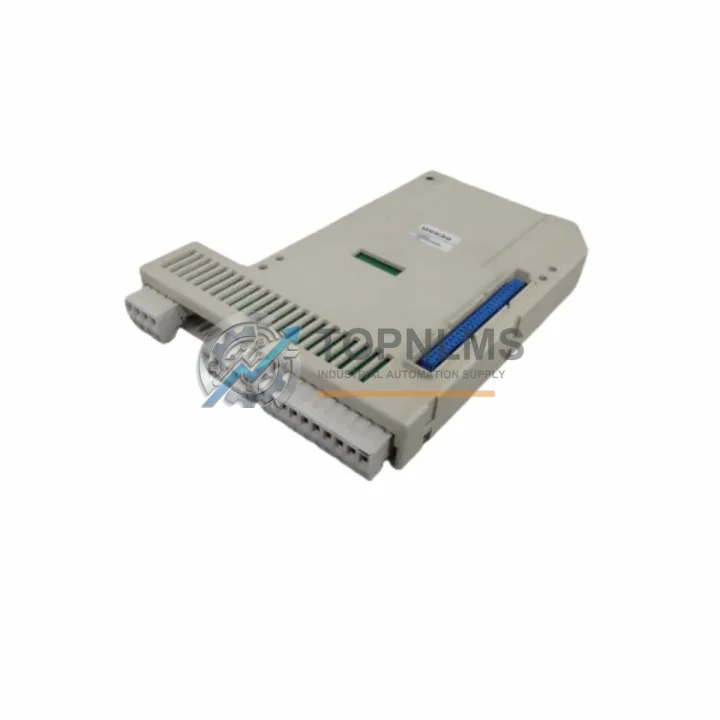

Schneider Electric VW3A66201 Ruggedized I/O Exit Module

Product Overview

Schneider Electric VW3A66201 Ruggedized I/O Exit Module: Industrial Resilience for Harsh Environments

The Schneider Electric VW3A66201 is a precision-engineered I/O Module Exit Board designed as a dedicated accessory for the Altivar series of variable speed drives. Built to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — this module delivers the signal integrity and structural durability that mission-critical automation systems demand.

In modern industrial control architectures, the I/O interface layer is often the most vulnerable point in the signal chain. The VW3A66201 addresses this directly by providing a robust, shielded exit board that maintains clean, noise-free I/O signal routing between the Altivar drive and the broader control system. Whether your installation involves a Modicon M340 PLC, a Modicon M580 PAC, or a distributed I/O rack communicating over Modbus TCP or CANopen, the VW3A66201 ensures that analog and digital signals arrive at their destination without degradation caused by electromagnetic interference (EMI), ground loops, or mechanical stress.

In petrochemical refineries and offshore oil and gas platforms, where continuous uptime is non-negotiable and unplanned shutdowns carry enormous financial and safety consequences, the VW3A66201 serves as a critical link in the drive control chain. Paired with Altivar Process ATV630 or ATV930 drives, it enables precise motor speed regulation for pumps, compressors, and agitators operating under variable load conditions. The module’s robust terminal design withstands the vibration profiles common to rotating machinery environments, and its sealed construction resists ingress from airborne contaminants including fine particulate matter and corrosive vapors.

In power generation and water treatment facilities, where control panels must remain operational across wide ambient temperature ranges and high-humidity conditions, the VW3A66201 integrates seamlessly into Altivar drive cabinets alongside Schneider Electric Harmony safety relays, Preventa XPS safety modules, and Zelio Logic smart relays. This compatibility ensures that safety interlock signals — including emergency stop, drive fault, and process alarm outputs — are transmitted with the fidelity required by IEC 62061 and ISO 13849 functional safety standards.

For metallurgical and steel mill applications, where high-power drives control rolling mills, conveyor systems, and overhead cranes, the VW3A66201 provides the I/O exit interface that connects Altivar drives to supervisory SCADA systems and DCS platforms. Its compatibility with Schneider Electric’s EcoStruxure architecture means it can be monitored and diagnosed remotely via EcoStruxure Machine Advisor, reducing the need for on-site intervention in hazardous areas. Alongside components such as the Altivar ATV71 and ATV61 drive families, Modicon STB distributed I/O modules, and Advantys island bus couplers, the VW3A66201 forms part of a cohesive, interoperable control system.

In mining and mineral processing environments, where drives and their accessories must endure extreme dust concentrations, high mechanical shock, and aggressive chemical atmospheres, the VW3A66201’s compact, panel-mount form factor allows it to be installed within sealed, IP54-rated or higher control enclosures. When used in conjunction with Schneider Electric Acti9 circuit breakers, Canalis busbar systems, and Prisma Plus switchgear, the module contributes to a fully coordinated electrical distribution and motor control solution that meets the rigorous demands of continuous production operations.

From a procurement and supply chain perspective, the VW3A66201 is a high-demand spare part for facilities operating large fleets of Altivar drives. Its role as an exit board means that a single failed unit can take an entire drive offline, making on-hand inventory of this module a standard practice for maintenance engineers responsible for minimizing mean time to repair (MTTR). TOPNLMS maintains verified stock of the VW3A66201, with each unit subject to pre-shipment functional inspection and packaging in anti-static, moisture-barrier materials to ensure it arrives in field-ready condition.

Rugged Specifications Table

Comprehensive Protection Solutions

The VW3A66201 does not operate in isolation — it is most effective when deployed as part of a coordinated Schneider Electric control architecture. In a typical Altivar-based motor control center (MCC), the exit board interfaces with the drive’s internal control card and routes I/O signals to terminal blocks, safety relays, and PLC input modules. Facilities running Modicon M340 or M580 PLCs with BMX DDI or BMX DDO discrete I/O modules will find the VW3A66201 a natural fit, as it maintains signal compatibility across the Schneider Electric ecosystem.

For safety-critical applications, the VW3A66201 is commonly installed alongside Schneider Electric Preventa XPSAC or XPSAL safety relay modules, which monitor emergency stop circuits and safety gate interlocks. The clean I/O signal output from the VW3A66201 ensures that safety relay inputs receive accurate drive status signals, preventing nuisance trips caused by signal noise. In installations where functional safety is governed by SIL 2 or PLd requirements, this signal integrity is not optional — it is a compliance necessity.

Power quality and supply stability are equally important. The VW3A66201 operates within drive cabinets that typically include Schneider Electric Phaseo ABL8 power supplies, which provide regulated 24 VDC control voltage to I/O circuits, HMI panels, and communication modules. Stable control power is a prerequisite for reliable I/O module operation, and the combination of a Phaseo power supply with the VW3A66201 exit board creates a robust, low-noise control power architecture. Surge protection devices such as the Schneider Electric iPRD series are also recommended in installations subject to lightning or switching transients.

For facilities using Profibus DP or CANopen fieldbus networks, the VW3A66201 works in conjunction with Altivar communication cards such as the VW3A3607 (Profibus DP) or VW3A3608 (DeviceNet), enabling the drive to participate in distributed control architectures managed by a Modicon Quantum or Premium PLC. This interoperability reduces wiring complexity, simplifies diagnostics, and supports predictive maintenance strategies by exposing drive parameters — including motor current, speed reference, and fault codes — to the plant-wide SCADA or DCS system.

Application in Critical Infrastructure

The Schneider Electric VW3A66201 has established a strong track record in critical infrastructure sectors where drive reliability directly impacts operational safety and production continuity. In oil and gas upstream and midstream facilities, Altivar drives equipped with VW3A66201 exit boards control electric submersible pumps (ESPs), gas compressor motors, and pipeline booster stations. The module’s ability to maintain clean I/O signal routing in environments saturated with hydrocarbon vapors and subject to frequent electrical transients makes it a preferred choice for instrumentation engineers specifying drive accessories for ATEX-adjacent control panels.

In municipal and industrial water treatment plants, Altivar drives with VW3A66201 modules regulate the speed of centrifugal pumps, blowers, and mixers across a wide range of flow conditions. The ability to interface cleanly with SCADA systems via Modbus TCP — using the drive’s onboard Ethernet port and the I/O signals routed through the VW3A66201 — enables operators to implement energy-saving variable flow control strategies that reduce electricity consumption by 20–50% compared to fixed-speed operation.

In metallurgical plants and steel mills, where high-inertia loads such as rolling mill drives and ladle transfer cars demand precise torque and speed control, the VW3A66201 provides the I/O interface that connects the Altivar drive to the plant’s Level 2 automation system. The module’s robust construction withstands the intense electromagnetic fields generated by large induction furnaces and high-current bus systems, ensuring that control signals remain stable even in the most electromagnetically hostile environments in industrial automation.

Mining operations — including underground coal mines, open-pit copper mines, and mineral processing plants — rely on Altivar drives for conveyor belt control, crusher motor management, and ventilation fan speed regulation. In these applications, the VW3A66201 exit board is a critical spare part that maintenance teams stock in advance to minimize the risk of extended downtime caused by drive I/O board failure. Its compact form factor and straightforward replacement procedure make it accessible to field technicians working under time pressure in remote locations.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the VW3A66201?
Every VW3A66201 sold by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the buyer, subject to inspection of the returned unit.

Q2: How is each unit tested before shipment?
All VW3A66201 units undergo a pre-shipment inspection process that includes visual examination for physical damage, verification of part number and revision markings, and functional continuity checks where applicable. Units are packaged in anti-static bags with moisture-barrier outer packaging to protect against electrostatic discharge and humidity during transit. A packing list and inspection record accompany each shipment.

Q3: Is the VW3A66201 compatible with all Altivar drive variants?
The VW3A66201 is specifically designed for use with Altivar series drives, including the ATV61 and ATV71 families. Compatibility with ATV630 and ATV930 drives should be verified against the specific drive’s accessory compatibility matrix in the Schneider Electric product documentation. TOPNLMS technical support can assist with compatibility verification prior to purchase — contact [email protected] with your drive model and firmware version for confirmation.

Q4: Can TOPNLMS support long-term or repeat procurement of the VW3A66201?
Yes. TOPNLMS specializes in the supply of industrial automation spare parts for long-term maintenance programs. We maintain ongoing stock of high-demand Altivar accessories including the VW3A66201, and can support blanket purchase orders, scheduled deliveries, and emergency expedite requests. For facilities managing large Altivar drive fleets, we recommend establishing a standing supply agreement to ensure availability during peak demand periods or when global supply chain disruptions affect OEM lead times.
