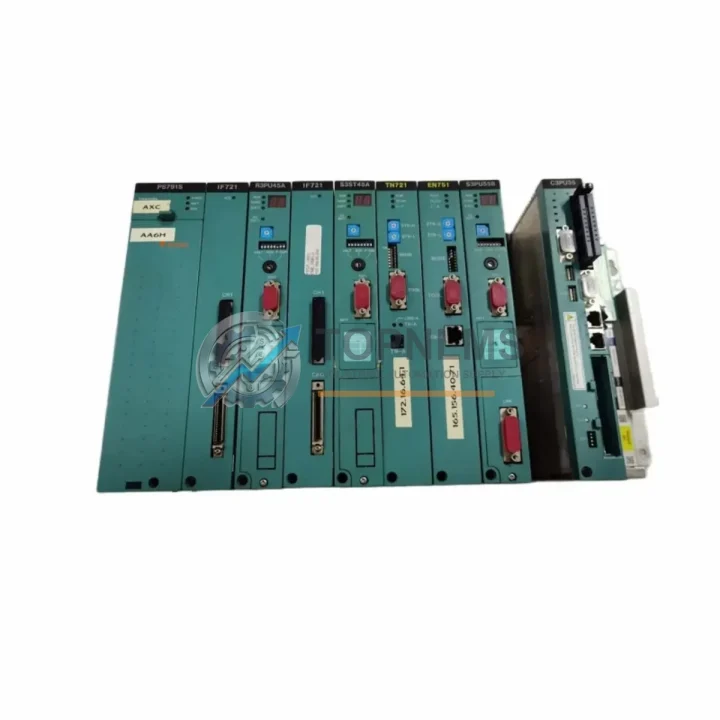

TOSHIBA TN721 GTN721 Replacement Solution for GTN Series

Product Overview

TOSHIBA TN721 GTN721 Replacement & Upgrade Solution for GTN Servo Drive Series

The TOSHIBA TN721 (GTN721) is a servo drive power supply module engineered for the TOSHIBA GTN/TN servo drive series — a platform widely deployed across precision manufacturing, CNC machining centers, injection molding lines, and automated assembly systems throughout Asia and globally. As legacy GTN-series servo systems approach end-of-life or face discontinued spare parts availability, the TN721/GTN721 module remains one of the most sought-after replacement and upgrade components for engineers tasked with maintaining system uptime without a full drive replacement.

At TOPNLMS, we maintain ready inventory of the TN721 / GTN721 power supply module to support urgent field replacements, planned maintenance shutdowns, and phased system modernization projects. Every unit is sourced from verified supply channels, pre-shipment tested, and backed by our 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful GTN-series servo drive restoration or modernization project rarely involves a single component. In practice, field engineers replacing a failed TN721 / GTN721 power supply module often discover that adjacent components in the same drive cabinet require attention. Based on common GTN-series retrofit and upgrade scenarios, the following related components are frequently required alongside the TN721:

The TOSHIBA GTN servo drive main control board is the logical starting point for any system audit — if the power supply module has failed due to sustained overvoltage or thermal stress, the control board should be inspected and tested before recommissioning. Similarly, the GTN-series regenerative braking resistor module is a wear item that degrades in parallel with the power supply under heavy duty-cycle loads, and replacement of both simultaneously reduces the risk of repeat failures.

For systems where the GTN drive communicates with a host PLC — such as a TOSHIBA T-series programmable controller or a third-party Mitsubishi MELSEC Q-series or Siemens S7-300 controller — verifying the integrity of the serial communication cable and interface module between the PLC and the servo amplifier is essential. A degraded communication link can cause erratic positioning errors that are often misdiagnosed as power supply faults.

In multi-axis servo systems, the GTN-series DC bus capacitor bank and the shared power supply bus bar assembly should be inspected whenever a TN721 module is replaced, as capacitor aging directly affects power supply stability across all axes. Engineers working on CNC retrofit projects also commonly source TOSHIBA servo motor encoder cables and feedback signal isolators at the same time, since encoder signal degradation is a frequent co-failure mode with power supply issues in aging GTN installations.

For facilities upgrading from a fully discontinued GTN-series system to a modern TOSHIBA servo platform, the TOSHIBA VFAS3 or VFNC3 series inverter may serve as a migration path for non-precision axes, while the servo axes are retained with refurbished GTN hardware. In such hybrid architectures, a DIN-rail mounted 24VDC control power supply is typically added to power the new control logic independently from the legacy servo bus.

Retrofit Guidance FAQ

Q: Can I replace the TN721 / GTN721 without rewiring the drive cabinet?
A: Yes. The TN721 is a slot-in module that connects via the GTN-series backplane. No field wiring changes are required for a like-for-like power supply replacement. Simply power down the drive, discharge the DC bus, remove the failed module, insert the replacement, and restore power.

Q: Do I need to re-enter servo parameters after replacing the power supply module?
A: No. Servo parameters (gain settings, position loop tuning, torque limits, etc.) are stored in the GTN drive’s main controller or parameter memory unit — not in the power supply module. A TN721 swap does not affect stored parameters.

Q: Is the TN721 compatible with all GTN-series drive frame sizes?
A: The TN721 / GTN721 is designed for specific frame sizes within the GTN series. Please confirm your drive’s frame size and rated output current before ordering. Our technical team can assist with cross-referencing your drive’s nameplate data to confirm compatibility.

Q: What communication protocols does the GTN series support, and does replacing the power supply affect them?
A: The GTN series uses TOSHIBA’s proprietary internal drive bus for inter-module communication. The power supply module does not participate in the communication protocol stack — replacing it has no effect on RS-232, RS-485, or fieldbus communication configurations already set in the drive controller.

Q: How do I verify the TN721 is the root cause of my drive fault before ordering?
A: Common indicators of a failed GTN power supply module include: DC bus undervoltage fault codes, failure to energize the drive ready relay, abnormal heat from the module housing, or visible damage to capacitors or rectifier components. If the drive controller and motor encoder check out but the drive will not power up, the TN721 is the most likely failure point.

Q: Can the TN721 be used in a system that has been upgraded to a newer PLC platform?
A: Yes. The TN721 operates independently of the host PLC platform. Whether your system uses a legacy TOSHIBA T-series PLC or has been migrated to a Mitsubishi, Siemens, or Omron controller, the GTN servo drive and its TN721 power supply module function identically — the servo drive receives position/speed commands via its standard interface regardless of the upstream controller brand.

Warranty Assurance

Every TOSHIBA TN721 / GTN721 module shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Our pre-shipment testing protocol includes functional power-on verification, output voltage measurement, and visual inspection for component integrity. Units that do not pass our outgoing quality check are not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical support team at [email protected] or +86 18359293191, describe the fault symptom, and we will arrange a replacement unit dispatch — typically within 1–3 business days for in-stock items. We do not require the customer to wait for a failed unit to be returned and evaluated before dispatching a replacement for confirmed warranty cases.

For procurement teams, our standard documentation package includes a commercial invoice, packing list, and certificate of conformance. Export documentation for cross-border shipments from Xiamen, China is prepared in compliance with customs requirements for industrial electronic components (HS Code: 8537.10). Lead time for in-stock units is 1–3 business days after payment confirmation, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and urgency.

TOPNLMS maintains a standing inventory of GTN-series components to support both emergency single-unit replacements and bulk procurement for MRO (Maintenance, Repair & Operations) stockpiling programs. Volume pricing is available for orders of 3 units or more — contact us directly for a quotation.
