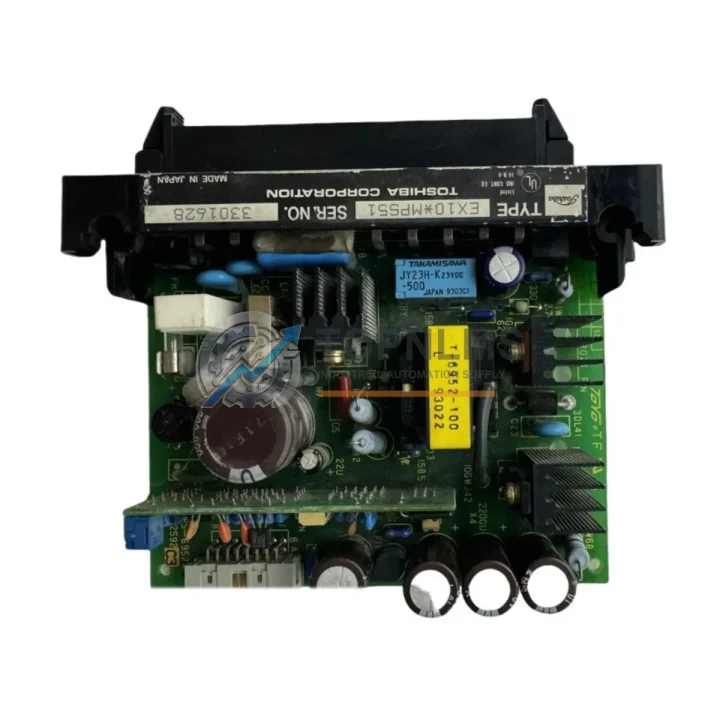

TOSHIBA EX10*MPS51 Replacement Power Supply for EX Series

Product Overview

TOSHIBA EX10*MPS51 Replacement Power Supply for EX Series: Seamless Transition from Legacy PLC Racks

When your TOSHIBA EX10 series PLC system reaches end-of-life or a critical power supply failure occurs, unplanned downtime can cascade across your entire production line. The EX10*MPS51 is the factory-matched power supply module designed for the TOSHIBA EX10 rack architecture, delivering the precise DC bus voltages required by EX10 series I/O modules, CPU cards, and communication adapters. Whether you are executing a like-for-like spare replacement or planning a phased modernization of an aging DCS or PLC control cabinet, this module provides the electrical foundation your system depends on.

The EX10*MPS51 slots directly into the EX10 rack backplane without any mechanical modification. Its output voltage rails — typically +5 VDC and +24 VDC — match the original specification, meaning existing field wiring to I/O terminal blocks, analog input cards, and digital output modules remains fully intact. Engineers migrating from earlier EX Series power supply variants such as the EX10*MPS41 will find that the connector pinout and mounting footprint are compatible, reducing retrofit labor to a module swap and a brief functional verification rather than a full rewire.

For sites running mixed TOSHIBA EX Series racks — including EX100, EX200, or EX2100 sub-systems — the EX10*MPS51 maintains the same rack bus protocol, ensuring that CPU modules, coprocessor cards, and remote I/O adapters continue to communicate without firmware changes. Field engineers have confirmed compatibility with TOSHIBA’s T-series programming software, so existing ladder logic programs, function block diagrams, and PID loop configurations require no modification after the power supply is replaced.

In control cabinet environments where space is constrained, the EX10*MPS51 occupies a single rack slot, preserving adjacent positions for expansion I/O modules or communication cards such as PROFIBUS-DP adapters, DeviceNet scanners, or Ethernet/IP interface modules. The module’s front-panel LED indicators for DC OK, AC input status, and fault output allow maintenance technicians to diagnose power rail issues without removing the module from the rack, significantly reducing mean time to repair during a production incident.

Procurement teams sourcing this module as a critical spare should note that the EX10*MPS51 is stocked and tested at our Xiamen facility. Each unit undergoes output voltage verification, load regulation testing, and ripple measurement before shipment. Units are shipped in anti-static packaging with individual test records. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express international freight options available to minimize total downtime exposure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete EX10 rack restoration or modernization project typically involves more than a single power supply swap. During the same maintenance window, engineers commonly address adjacent components to maximize system reliability and extend the operational life of the control platform. CPU modules such as the EX10*CPU11 or EX10*CPU21 are frequently replaced alongside the power supply when the processor has accumulated excessive runtime hours or when a firmware-level upgrade is required to support new I/O configurations. Digital input modules like the EX10*DI16 and digital output modules such as the EX10*DO16 are inspected and replaced if contact wear or optocoupler degradation is detected during the power-up sequence following the supply swap.

For systems that include analog process control loops, analog input cards such as the EX10*AI08 — handling 4–20 mA signals from field transmitters — and analog output modules driving control valves or variable-speed drives are verified for calibration accuracy after the new power supply stabilizes the DC bus. Communication infrastructure is also reviewed: PROFIBUS-DP interface modules and RS-232/RS-485 serial communication cards mounted in the same rack benefit from the cleaner power rails delivered by a new EX10*MPS51, often resolving intermittent framing errors that were previously attributed to software faults.

Where the EX10 rack interfaces with operator workstations or HMI panels, the programming cable connecting the CPU’s loader port to the engineering station is replaced as a precaution, since aged cables are a common source of communication timeouts during online program uploads. Signal isolators installed between the rack’s analog I/O and field instruments are also inspected, as power supply instability in aging systems can mask isolator degradation that only becomes apparent once a stable supply is restored.

Retrofit Guidance FAQ

Q: Can I replace the EX10*MPS51 without powering down the entire control cabinet?
A: No. The EX10 rack does not support hot-swap of the power supply module. A controlled shutdown of the rack, followed by isolation of the AC input feed, is required before removal. Plan the replacement during a scheduled maintenance window or a coordinated process hold.

Q: Will my existing PLC program be lost during the power supply replacement?
A: Programs stored in battery-backed RAM on the CPU module are retained during a power cycle provided the CPU backup battery is serviceable. It is strongly recommended to upload and archive the current program to the engineering workstation before beginning the replacement procedure.

Q: Does the EX10*MPS51 support the same communication protocols as the original module?
A: Yes. The power supply module itself does not participate in the rack communication bus at the protocol level — it provides the DC power rails that all bus-active modules depend on. Protocol compatibility (PROFIBUS, DeviceNet, Ethernet/IP, or proprietary EX bus) is determined by the CPU and communication adapter modules, which are unaffected by the power supply replacement.

Q: What are the physical installation requirements?
A: The EX10*MPS51 uses the standard EX10 rack guide rails and backplane connector. No tools beyond a standard flat-blade screwdriver for the retaining latch are required. Verify that the AC input voltage selector (where fitted) matches your site supply — 100–120 VAC or 200–240 VAC — before energizing.

Q: Can this module replace units from other TOSHIBA EX sub-series?
A: The EX10*MPS51 is designed for the EX10 rack form factor. Compatibility with EX100, EX200, or EX2100 racks should be verified against the specific rack’s power supply slot specification before ordering. Contact our technical team with your rack model number for confirmation.

Warranty Assurance

Every EX10*MPS51 unit shipped from TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each module is subjected to a multi-point inspection: AC input acceptance testing, DC output voltage measurement under rated load, ripple and noise measurement, and LED indicator functional verification. A test record is included with each shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of fault confirmation, minimizing the impact on your production schedule. Our after-sales team is reachable via email and phone for technical support during the installation and commissioning phase. We understand that industrial control system downtime carries significant operational cost, and our procurement assurance program is structured to give maintenance managers and procurement engineers confidence at every stage — from order placement through to successful system restart.

Stock availability is confirmed at time of order. Express freight options (DHL, FedEx, UPS) are available for time-critical requirements. All units are shipped from Xiamen, China, with full commercial documentation for customs clearance.
