TEL 118100031717 MC-31035D DIG 32-OK01 Y2O3 Panel Upgrade

Product Overview

TEL 118100031717 MC-31035D DIG 32-OK01 Y2O3 Panel Upgrade: Seamless Migration & Legacy System Compatibility

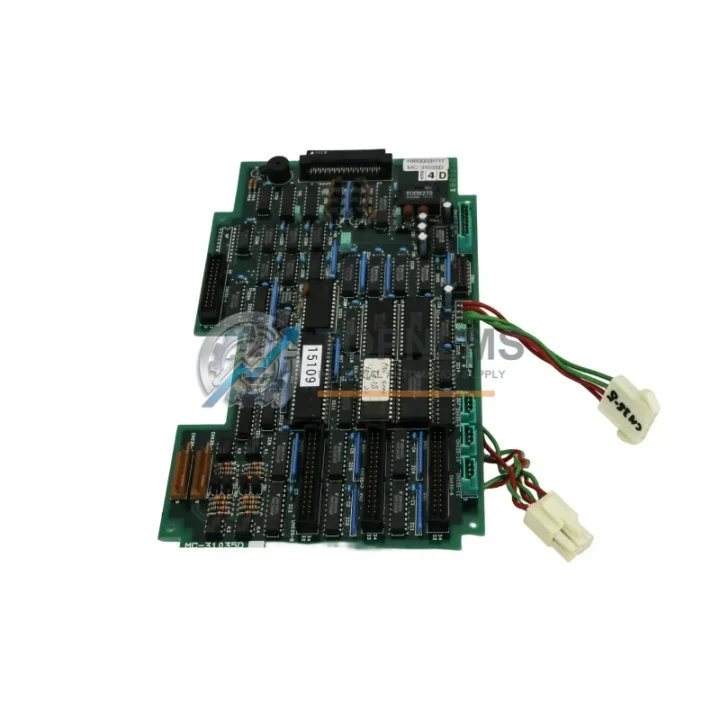

The Tokyo Electron (TEL) 118100031717 MC-31035D DIG 32-OK01 Y2O3 Control Panel Kit is a precision-engineered replacement and upgrade solution designed for semiconductor process equipment operators managing end-of-life or discontinued control panel assemblies within TEL Trias, Vigus, and Tactras platform systems. This kit addresses the critical challenge of maintaining uptime in Y2O3 (yttrium oxide) process chambers where the original MC-31035D panel has reached obsolescence, suffered component failure, or is no longer available through OEM channels.

For fabs and equipment maintenance teams facing unplanned downtime due to a failed or discontinued MC-31035D DIG 32-OK01 panel assembly, this replacement kit provides a validated, drop-in compatible solution. The kit retains the original wiring harness pinout, connector layout, and DIN rail mounting footprint, enabling technicians to complete a panel swap without modifying the existing cabinet wiring or rerouting signal cables. The 32-channel digital I/O configuration (DIG 32-OK01) is preserved, ensuring full compatibility with the chamber’s existing PLC ladder logic and sequence programs without requiring software re-engineering.

Migration from a degraded or failed original panel to this replacement unit typically requires no changes to the process recipe parameters stored in the host controller. The Y2O3 process module’s temperature control loops, gas flow interlocks, and RF power sequencing signals remain fully mapped to the same I/O addresses, eliminating the risk of recipe drift or process parameter mismatch during the changeover. This is particularly important in high-mix fabs where recipe integrity directly impacts yield.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or end-of-life MC-31035D panel assembly rarely involves a single component. In practice, field engineers performing this upgrade on TEL process equipment will typically assess the condition of adjacent assemblies within the same control cabinet. The MC-31035D DIG 32-OK01 panel interfaces directly with the chamber’s I/O backplane, and it is common to simultaneously replace or inspect the associated TEL I/O terminal board and signal conditioning modules that distribute digital signals to the process actuators and sensors.

For systems where the original TEL MC-series power supply module has also degraded — a frequent co-failure mode in aging Y2O3 chambers — sourcing a compatible replacement power supply alongside the control panel kit ensures that the restored system operates within its original voltage and current specifications. Similarly, the TEL backplane interconnect cable assembly connecting the MC-31035D panel to the main controller rack should be inspected and replaced if insulation degradation or connector wear is observed, as these cables are a common source of intermittent faults that can be misdiagnosed as panel failures.

Customers upgrading from older TEL Trias-generation equipment to a Vigus or Tactras platform architecture may also require a TEL communication gateway module to bridge legacy internal bus protocols with the updated system controller. In such cross-generation migrations, the TEL host controller interface board and process module controller (PMC) card may need to be evaluated for compatibility with the replacement panel’s I/O mapping. For fabs standardizing on a unified SEMI E5 / SECS-II communication framework, a SECS/GEM communication adapter compatible with the TEL equipment platform can be integrated during the same maintenance window to modernize host-to-equipment communication without additional downtime.

Where the Y2O3 process chamber is part of a larger cluster tool configuration, the TEL cluster controller module and associated wafer handling robot interface board should be verified for signal compatibility with the replacement panel before returning the chamber to production. Technicians performing the swap in a live fab environment are advised to have a TEL-compatible programming cable and diagnostic interface on hand to verify I/O mapping and confirm signal integrity after installation, prior to running the first qualification wafer.

Retrofit Guidance FAQ

Q: Will I need to rewire the control cabinet when installing this replacement panel?
No. The 118100031717 replacement kit maintains the identical connector pinout and wiring harness interface as the original MC-31035D assembly. Existing cable looms, terminal blocks, and harness routing within the TEL control cabinet are fully reused. No rewiring or cable modification is required.

Q: Do I need to modify the PLC program or process recipes after installation?
No program modification is required. The DIG 32-OK01 I/O channel configuration is preserved, and all digital I/O addresses remain consistent with the original panel. Process recipes, interlock logic, and sequence programs stored in the host controller continue to operate without alteration.

Q: Is this panel compatible with both TEL Trias and Vigus platform systems?
Yes. The MC-31035D DIG 32-OK01 panel is designed for use across TEL Trias, Vigus, and Tactras platform architectures. The backplane bus interface and physical mounting dimensions are consistent across these generations, enabling direct replacement without platform-specific modifications.

Q: What communication protocols does this panel support?
The panel operates on the TEL internal backplane communication bus native to the MC-31035D series. It does not require external fieldbus configuration (e.g., PROFIBUS, DeviceNet, or EtherNet/IP) for standard chamber control functions. Host-level communication (SECS/GEM) is managed by the system controller, not the panel assembly itself.

Q: How much physical space does the replacement panel require in the control cabinet?
The replacement kit uses the same DIN rail mounting footprint and panel dimensions as the original MC-31035D assembly. No cabinet modifications, bracket changes, or additional space allocation are required. The kit is designed for direct physical substitution within the existing cabinet layout.

Q: What is the recommended procedure for commissioning after installation?
After mechanical installation and cable reconnection, perform a powered I/O verification using the TEL diagnostic interface to confirm all 32 digital channels are correctly mapped and responding. Run the chamber’s standard self-test sequence before returning to process. No additional calibration of the panel assembly itself is required.

Warranty Assurance

Every TEL 118100031717 MC-31035D DIG 32-OK01 Y2O3 Control Panel Kit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification and visual inspection to confirm connector integrity, component condition, and assembly completeness. Units that do not meet our outgoing quality standards are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing to minimize the impact on your production schedule. Our after-sales response team is reachable directly via email and phone to coordinate replacement logistics, provide technical documentation, and support your maintenance team through the exchange process. We understand that semiconductor equipment downtime carries significant production cost, and our warranty process is structured to reflect that urgency.

For procurement teams requiring documentation, we can provide a certificate of conformance, packing list, and shipping records upon request. All units are shipped from Xiamen with full export documentation. Lead time for in-stock units is typically 3–5 business days for international destinations, with expedited options available upon request.
