TDK-Lambda JWT100-522/B Original Industrial Spare JWT100

Product Overview

TDK-Lambda JWT100-522/B Original Industrial Spare JWT100: System Stability & Maintenance Value

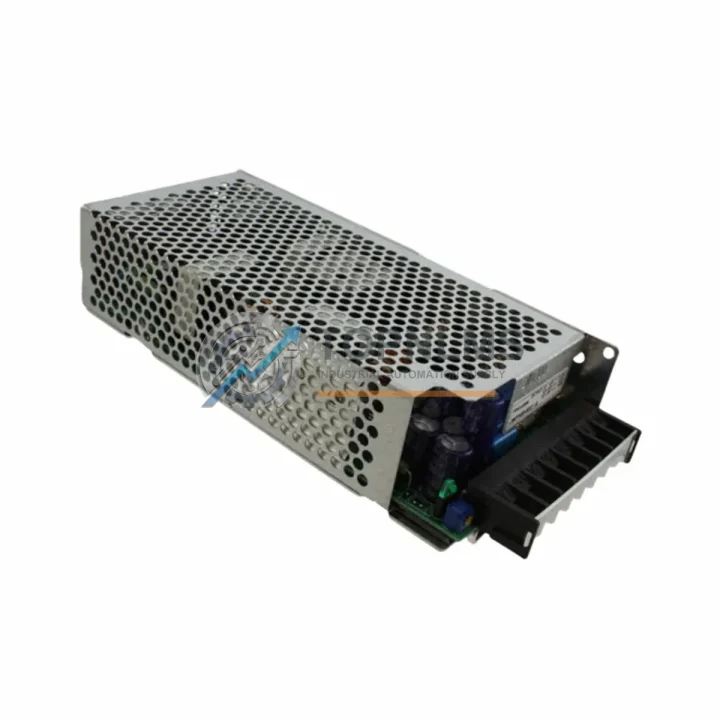

The TDK-Lambda JWT100-522/B is a genuine multi-output industrial power supply module from the JWT100 Series, engineered for continuous-duty operation in demanding factory automation, process control, and machine tool environments. As a critical power infrastructure component, the JWT100-522/B delivers stable, regulated DC outputs to PLCs, DCS controllers, I/O racks, and field instrumentation — making it an essential spare for any maintenance team responsible for minimizing unplanned downtime.

Sourced directly from authorized supply channels and fully tested prior to shipment, every unit supplied by TOPNLMS carries a 12-month warranty, giving procurement and maintenance engineers the confidence to stock this module as a long-term inventory asset.

Critical Technical Specs

Preventive Maintenance Strategy

In any industrial control cabinet, the power supply module is the heartbeat of the entire system. When a TDK-Lambda JWT100-522/B shows signs of aging — output ripple exceeding tolerance, thermal shutdown events, or voltage drift on the ±12V rails — the risk of cascading failure across connected modules becomes significant. A proactive replacement strategy, rather than a reactive one, is the difference between a planned 30-minute swap and a multi-hour production stoppage.

During a scheduled inspection or corrective maintenance event involving the JWT100-522/B, experienced maintenance engineers know to simultaneously audit the surrounding power distribution and signal infrastructure. The TDK-Lambda JWT100 Series power supply typically feeds downstream components including Siemens S7-300/S7-400 CPU modules and their associated PS 307 or PS 405 power supply units, which should be checked for output stability and capacitor health at the same interval. If the control cabinet houses a Siemens ET 200M or ET 200S distributed I/O rack, the interface modules (IM 153-x or IM 151-x) and their digital input/output modules (SM 321, SM 322, SM 323) should be inspected for contact wear and firmware currency.

On the signal side, analog input modules (SM 331) and analog output modules (SM 332) are particularly sensitive to power quality — a degraded JWT100-522/B can introduce noise that manifests as erratic PID loop behavior or false process alarms long before a hard fault is logged. Pairing a JWT100-522/B replacement with a calibration check of connected signal isolators or signal conditioners (such as Phoenix Contact MINI MCR or Pepperl+Fuchs KFD series) is a recognized best practice in process industries.

Terminal blocks and fuse modules within the same power distribution row — particularly Phoenix Contact ST or UK series terminal blocks and associated fuse terminal blocks (PTFIX or similar) — should be torque-checked and visually inspected for discoloration or carbonization, which can indicate sustained overcurrent events that may have stressed the JWT100-522/B over time. If the cabinet includes a PROFIBUS DP or PROFINET communication module (such as a CP 342-5 or CP 343-1), verifying its power draw and bus termination integrity during the same maintenance window avoids a second cabinet opening within the same quarter.

For facilities running legacy TDK-Lambda JWT series power supplies across multiple machines, maintaining a minimum stock of one JWT100-522/B per production line — alongside compatible JWT60 or JWT150 series units for adjacent power rails — is a sound inventory strategy that significantly reduces mean time to repair (MTTR) when an unplanned failure occurs on the night shift.

Strategic Replacement Solutions

The JWT100-522/B is a proven replacement for aging or discontinued multi-output PSU modules in legacy control systems where the original unit is no longer available through OEM channels. Its universal AC input range (85–264 VAC) makes it compatible with both 110V and 220V panel environments without rewiring, and its compact form factor fits standard chassis cutouts used across the JWT100 product family.

For maintenance teams managing end-of-life Siemens, Mitsubishi, Fanuc, or Yokogawa control systems that rely on third-party power supply modules, the JWT100-522/B offers a cost-effective path to system life extension without requiring a full control system upgrade. The module’s multi-output architecture means a single unit can simultaneously power logic circuits, field bus interfaces, and analog signal conditioning boards — reducing the number of discrete PSU modules required in a retrofit scenario.

TOPNLMS pre-tests every JWT100-522/B under load prior to shipment, verifying output voltage accuracy, ripple, and thermal performance. Units are shipped in ESD-safe packaging with full documentation. Typical lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express international shipping available to most industrial regions.
