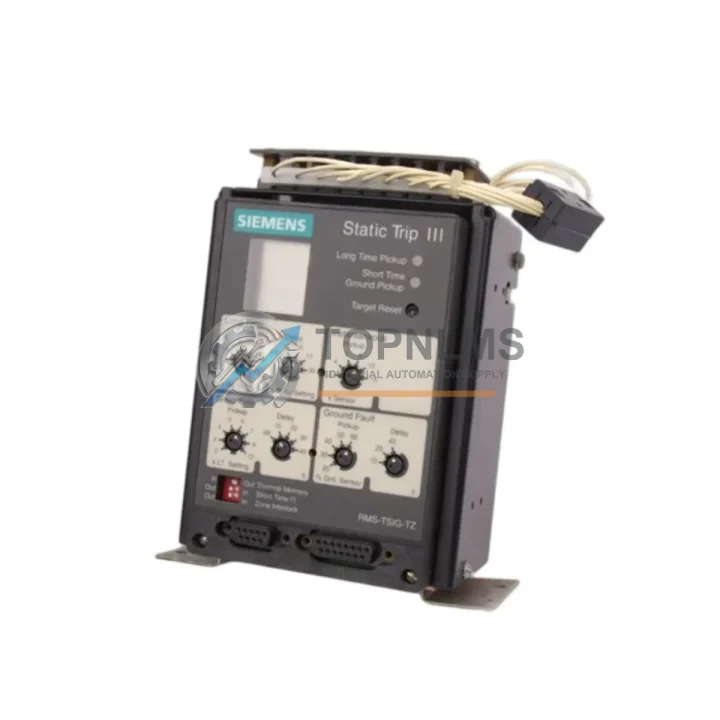

Siemens RMS-TSIG-TZ-C Ruggedized Trip Unit for Harsh Environments

Product Overview

Siemens RMS-TSIG-TZ-C Ruggedized Electronic Trip Unit: Industrial Resilience for Harsh Environments

The Siemens RMS-TSIG-TZ-C is a precision-engineered electronic trip unit designed for the SENTRON 3WL series air circuit breakers, delivering uncompromising protection and measurement accuracy in the most demanding industrial environments. Built to Siemens’ exacting standards for power distribution and motor control infrastructure, this trip unit integrates advanced Zone-Selective Interlock (ZSI) functionality — enabling coordinated, high-speed fault clearance across multi-tier switchgear systems without sacrificing selectivity.

In heavy industrial facilities where continuous uptime is non-negotiable — oil refineries, gas processing plants, underground mining operations, metallurgical smelters, and high-voltage power substations — the RMS-TSIG-TZ-C provides the fault discrimination intelligence that keeps critical loads energized while isolating faults at the nearest upstream breaker. Its true RMS measurement engine accurately captures distorted waveforms caused by variable frequency drives (VFDs), large motor starters, and non-linear loads common in process automation environments, ensuring trip thresholds are never compromised by harmonic content.

Designed to operate reliably across wide temperature ranges and in the presence of vibration, electromagnetic interference (EMI), and high-humidity conditions typical of industrial switchrooms, the RMS-TSIG-TZ-C is the backbone protection device for control cabinets housing Siemens S7-300, S7-400, and S7-1500 PLC systems, as well as distributed I/O racks, PROFIBUS and PROFINET communication modules, and safety relay assemblies. When paired with the SENTRON 3WL frame, it forms a complete, IEC 60947-2-compliant low-voltage power circuit breaker solution rated for the harshest service conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The RMS-TSIG-TZ-C does not operate in isolation — it is a critical node in a layered protection and control architecture. In a typical industrial main distribution board (MDB), it works in concert with the Siemens 3WL1 and 3WL6 series air circuit breakers as the host frame, providing the mechanical interruption capacity while the RMS-TSIG-TZ-C delivers the intelligence layer. Upstream, the Siemens SENTRON PAC3200 power monitoring device provides real-time energy metering and load profiling, feeding data to the plant SCADA system via PROFIBUS DP.

For motor feeder protection downstream, the Siemens 3RV2 motor starter protectors and 3RT2 contactors handle individual drive circuits, while the RMS-TSIG-TZ-C’s ZSI output signal coordinates with these feeders to achieve sub-cycle fault clearance at the incomer level. In cabinet assemblies where Siemens ET 200SP distributed I/O modules and IM 155-6 PN interface modules are installed, the trip unit’s reliable power protection ensures that control voltage rails remain stable during downstream fault events — preventing nuisance resets of the PLC rack and preserving process state.

For facilities running Siemens SINAMICS G120 or S120 variable frequency drives, the true RMS measurement capability of the RMS-TSIG-TZ-C is particularly valuable: harmonic currents generated by the drive’s rectifier stage are accurately measured rather than averaged, preventing false trips and ensuring that overload protection thresholds reflect actual thermal stress on conductors and busbars. The Siemens 3WL COM PROFINET module can be added to the 3WL breaker assembly to bring trip unit data — including fault logs, current measurements, and ZSI status — directly into the TIA Portal engineering environment or a WinCC SCADA visualization layer.

In safety-critical applications, the RMS-TSIG-TZ-C is often deployed alongside Siemens SIRIUS 3SK1 safety relays and 3SE5 position switches to form a complete machine safety and power protection solution. The trip unit’s ground fault detection function provides an additional layer of personnel protection in wet or chemically aggressive environments where insulation degradation is an ongoing risk. Terminal block assemblies from the Siemens SIRIUS 8WH series are commonly used to wire the ZSI interconnect cabling between breaker tiers, ensuring low-impedance signal paths that maintain ZSI coordination integrity across the full fault current range.

Application in Critical Infrastructure

In oil and gas upstream facilities — wellhead control rooms, gas compression stations, and offshore platform power centers — the RMS-TSIG-TZ-C provides the selective fault isolation that prevents a single feeder fault from cascading into a full platform blackout. Its wide operating temperature range and vibration tolerance make it suitable for installation in skid-mounted switchgear exposed to ambient temperature swings and mechanical vibration from compressor and pump machinery.

In underground coal and metal mining operations, where switchgear is installed in explosion-risk zones and subject to coal dust ingress, high humidity, and continuous mechanical shock, the RMS-TSIG-TZ-C’s robust construction and sealed electronics ensure reliable operation over extended maintenance intervals. Its ground fault protection function is particularly critical in mining environments, where earth leakage poses a direct risk to personnel working in confined, conductive spaces.

In power generation and grid-connected substations, the ZSI function enables the RMS-TSIG-TZ-C to participate in coordinated protection schemes alongside upstream utility protection relays, reducing fault clearance time at the low-voltage bus and minimizing the thermal and mechanical stress imposed on busbars, cables, and connected equipment during fault events. Water treatment plants and municipal utilities rely on this capability to maintain continuous operation of pumping stations and chemical dosing systems even during partial grid disturbances.

In metallurgical and steel production facilities, where arc furnaces, rolling mills, and induction heating systems generate severe harmonic distortion and voltage fluctuations, the true RMS measurement of the RMS-TSIG-TZ-C ensures that protection functions remain calibrated to actual load conditions rather than fundamental-frequency approximations. This prevents both nuisance tripping during normal heavy-load operation and delayed tripping during genuine overload conditions — a balance that is essential for maintaining production throughput while protecting capital equipment.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects, including electronic component failures, calibration drift, and mechanical defects in the trip unit assembly. If a fault is identified within the warranty period, TOPNLMS will arrange full replacement or factory-level repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the observed fault. Replacement units are dispatched from Xiamen stock within 3–5 business days of claim verification.

Q2: How is each unit tested before shipment?
Every RMS-TSIG-TZ-C unit undergoes pre-shipment functional verification, including continuity checks, communication interface testing, and visual inspection for physical damage or counterfeit indicators. Units sourced through authorized distribution channels are accompanied by original Siemens packaging and documentation. Batch traceability records are maintained for all stock, enabling full supply chain transparency for quality-sensitive procurement teams.

Q3: Is the RMS-TSIG-TZ-C compatible with all SENTRON 3WL frame sizes and ratings?
Yes. The RMS-TSIG-TZ-C is designed as a universal trip unit for the SENTRON 3WL platform and is compatible across the full range of 3WL frame sizes and current ratings. It is also compatible with the 3WL COM communication module for PROFIBUS DP and PROFINET integration, and with the 3WL measuring module for extended power quality monitoring. Compatibility with specific 3WL variants can be confirmed by sharing your breaker nameplate data with our technical team prior to order.

Q4: Can TOPNLMS support long-term or repeat supply of this part for ongoing maintenance programs?
Yes. TOPNLMS maintains buffer stock of high-demand Siemens SENTRON and SIRIUS components to support planned maintenance, emergency replacement, and MRO (Maintenance, Repair & Operations) procurement programs. For facilities with scheduled breaker maintenance intervals or aging switchgear replacement programs, we can provide forward-stocking agreements and priority allocation to ensure parts availability when needed. Contact our team to discuss volume pricing and supply continuity arrangements.
