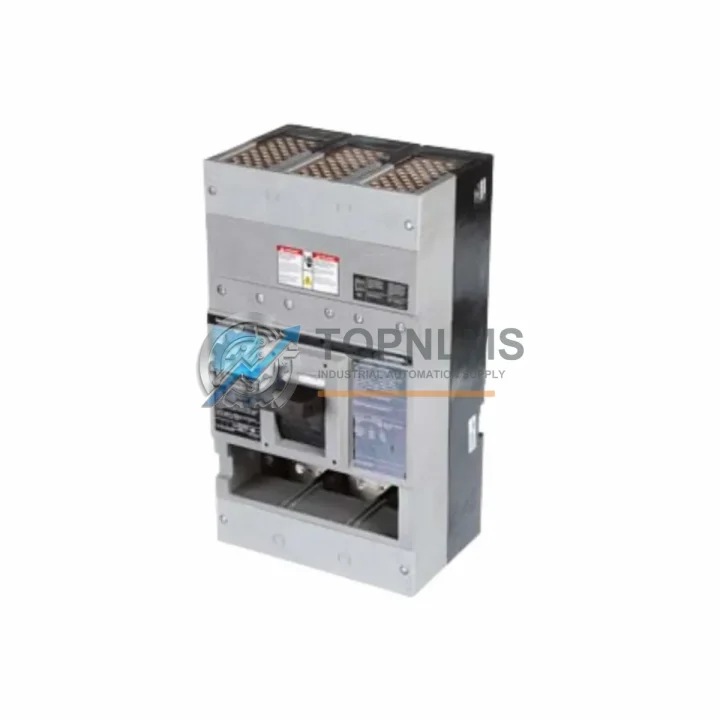

Siemens RD63F200 Ruggedized MCCB Frame: Industrial Resilience for Harsh Environments

The Siemens RD63F200 is a heavy-duty Molded Case Circuit Breaker (MCCB) Frame from the RD6 Series, engineered to deliver uncompromising overcurrent protection in the most demanding industrial environments. Rated at 3-Pole, 600V, 2000A and manufactured in Germany to Siemens’ exacting quality standards, the RD63F200 is the backbone of high-current distribution and motor protection systems across critical infrastructure worldwide.

In environments where temperature extremes, mechanical vibration, airborne particulates, and electromagnetic interference are daily realities — oil refineries, underground mining operations, steel mills, water treatment facilities, and large-scale power distribution substations — the RD63F200 provides the structural integrity and electrical performance that control engineers depend on. Its robust molded case construction resists deformation under thermal cycling, while its precision contact geometry maintains reliable arc interruption even after thousands of operating cycles.

Rugged Specifications Table

Comprehensive Protection Solutions

The RD63F200 MCCB Frame does not operate in isolation — it is a critical node within a broader protection and control architecture. In a typical heavy industrial switchgear lineup, the RD63F200 works in concert with Siemens 3RV motor protection circuit breakers to provide coordinated upstream and downstream fault isolation, ensuring that a fault on a single motor branch does not cascade into a full panel shutdown. Paired with Siemens SIRIUS 3RT contactors, the combination delivers both switching and protection functions within a compact motor control center footprint.

For facilities running Siemens SIMATIC S7-300 or S7-400 PLC systems, the RD63F200 protects the main power distribution feeding the PLC power supply modules and I/O racks. Reliable upstream protection is non-negotiable when a PLC controls a continuous production line — any uncontrolled power interruption risks corrupting process states and triggering costly emergency shutdowns. The RD63F200’s high interrupting capacity ensures that even bolted fault conditions are cleared cleanly, protecting sensitive SITOP power supply units and downstream ET 200 distributed I/O modules from destructive fault energy.

In variable-speed drive applications, the RD63F200 is commonly installed as the main feeder breaker ahead of Siemens SINAMICS G120 or S120 variable frequency drives (VFDs). VFDs are particularly sensitive to upstream power quality and fault events; a properly rated MCCB frame like the RD63F200 provides the necessary short-circuit withstand coordination to protect drive input rectifiers. Similarly, in safety-instrumented systems (SIS), the RD63F200 can serve as the main disconnect ahead of Siemens SIRIUS 3SK safety relays and PROFIBUS or PROFINET communication modules, maintaining the integrity of the safety loop even under fault conditions.

Control cabinet integrators frequently specify the RD63F200 alongside Siemens 8WH terminal blocks and SIVACON S8 busbar systems to build fully coordinated, type-tested switchgear assemblies. This system-level approach — from busbar to breaker frame to terminal — ensures that every component in the cabinet has been validated for mutual compatibility, reducing commissioning risk and simplifying future maintenance.

Application in Critical Infrastructure

The Siemens RD63F200 has earned its place in some of the world’s most demanding industrial installations. In oil and gas processing facilities, where continuous uptime is measured in millions of dollars per hour and where explosive atmospheres demand the highest standards of electrical integrity, the RD63F200 provides the main feeder protection for motor control centers driving compressors, pumps, and separation equipment. Its high interrupting rating ensures that fault energy is contained within the breaker, preventing arc flash propagation in environments where secondary ignition is a life-safety concern.

In underground coal and metal mining operations, electrical equipment must withstand constant mechanical shock, coal dust ingress, and high humidity. The RD63F200’s robust molded case construction and sealed contact chamber make it a preferred choice for mine power distribution panels, where replacement access is difficult and unplanned downtime directly impacts production tonnage. Maintenance teams value the RD63F200’s straightforward draw-out mechanism, which allows frame replacement without disturbing the busbar connections — a critical advantage in confined underground switchrooms.

At thermal and hydroelectric power generation stations, the RD63F200 protects auxiliary power systems feeding cooling water pumps, lubrication systems, and control room HVAC — all of which are essential to safe plant operation. In municipal water treatment and wastewater facilities, it provides reliable protection for high-current pump motor feeders operating in high-humidity, chemically aggressive environments. Metallurgical plants and steel mills rely on the RD63F200 in electric arc furnace (EAF) auxiliary distribution, where harmonic-rich power environments and frequent motor starts demand a breaker frame with proven thermal withstand capability.
