Siemens 6SE7031-7HG84-1JC1 Original Industrial Spare MASTERDRIVES Compatible: Ensuring Drive System Stability and Minimizing Downtime

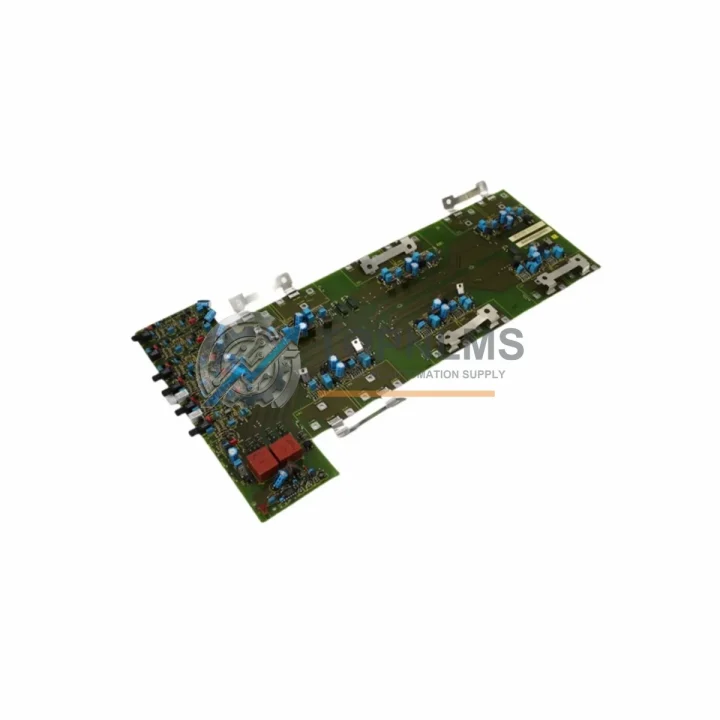

In high-demand industrial environments, the reliability of your variable-speed drive system is not a luxury — it is a production imperative. The Siemens 6SE7031-7HG84-1JC1 is an original gate driver board designed for the SIMOVERT MASTERDRIVES series, one of Siemens’ most widely deployed medium-voltage drive platforms across manufacturing, process automation, steel, cement, and chemical industries. This board governs the IGBT gate firing signals that control the power conversion stage of the drive, making it one of the most critical components in the entire inverter assembly. A failure of this board results in immediate drive shutdown, uncontrolled deceleration, and potential damage to downstream mechanical loads.

Sourcing an original, tested replacement unit — rather than attempting field repair of a failed board — is the fastest and most reliable path to restoring full drive operation. TOPNLMS maintains verified stock of the 6SE7031-7HG84-1JC1 to support emergency replacement, planned maintenance outages, and strategic spare parts inventory programs for facilities operating MASTERDRIVES-based control systems.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a MASTERDRIVES unit is taken offline for inspection or emergency repair, experienced maintenance engineers treat the event as an opportunity to audit the entire drive cabinet — not just the failed component. The gate driver board 6SE7031-7HG84-1JC1 sits at the interface between the control electronics and the power stage, and its failure is often preceded or accompanied by stress on adjacent components.

During a planned or unplanned maintenance window involving this board, it is standard practice to simultaneously inspect the MASTERDRIVES power supply board (6SE7031-series PSU module), which provides the isolated DC rails that feed the gate driver circuits. A degraded power supply can cause intermittent gate misfires long before a hard fault is logged. Similarly, the CUVC or CUMC control unit (e.g., 6SE7090-0XX84-0AB0 or equivalent) should be checked for firmware integrity and communication faults, as control board errors are frequently misdiagnosed as gate driver failures.

The IGBT power module stack itself — the component the gate driver board fires — should be tested for leakage current and gate-emitter resistance if the drive has experienced repeated overcurrent trips. Replacing the gate driver board without verifying the IGBT condition risks immediate re-failure. Alongside this, inspect the DC bus capacitor bank for capacitance drift and ESR increase, particularly in drives that have been in service for more than five years.

On the signal and communication side, verify the integrity of the fiber optic interface cables connecting the control board to the gate driver board — these are a common wear item in high-vibration environments and can cause erratic firing behavior that mimics gate driver failure. The fan and cooling assembly (including the 24V DC fan module and thermal sensors) should be cleaned and tested, as thermal stress is the primary accelerant of gate driver board degradation.

For facilities running multiple MASTERDRIVES units in a common DC bus configuration, it is advisable to maintain at least one spare 6SE7031-7HG84-1JC1 gate driver board alongside a spare MASTERDRIVES I/O expansion board and a set of terminal block assemblies for the control wiring interface. This ensures that any single-point failure in the drive cabinet can be resolved within one shift without waiting for international logistics.

If the drive is integrated into a broader Siemens S7-300 or S7-400 PLC automation system via PROFIBUS-DP, also verify the PROFIBUS communication module (e.g., CBP2 board, 6SE7090-0XX84-0FF5) and the DP/DP coupler or gateway module for correct parameterization after any board replacement, as drive parameter sets may need to be reloaded from the PLC or operator panel.

Strategic Replacement Solutions

The SIMOVERT MASTERDRIVES platform has been in production and field deployment for over two decades. Many facilities continue to operate these drives well beyond their original design lifecycle because the mechanical and process infrastructure built around them represents a far larger capital investment than the drives themselves. Siemens has progressively reduced active production support for older 6SE70-series components, making original spare parts increasingly difficult to source through standard distribution channels.

TOPNLMS specializes in sourcing original and verified-equivalent spare parts for legacy drive systems precisely because the alternative — a full drive replacement — requires not only capital expenditure but also engineering re-commissioning, parameter migration, motor cable re-termination, and potential PLC program modifications. For most facilities, a verified original 6SE7031-7HG84-1JC1 gate driver board represents a fraction of the cost of a drive replacement and can restore full system operation within hours of receipt.

When replacing this board, ensure that the replacement unit matches the hardware revision suffix of the original (the -1JC1 suffix denotes a specific hardware variant). Mismatched hardware revisions can cause compatibility issues with the CUVC/CUMC control firmware. TOPNLMS technical support can assist in cross-referencing hardware revisions and confirming compatibility before shipment, reducing the risk of a second maintenance event.

For facilities planning a phased modernization — transitioning from MASTERDRIVES to SINAMICS S120 or G120 platforms over a multi-year horizon — maintaining a strategic stock of critical spare boards such as the 6SE7031-7HG84-1JC1 provides operational continuity during the transition period, ensuring that legacy lines remain productive while new equipment is commissioned in parallel.
