Siemens 6GK7343-5FA01-0XE0 CP 343-5 Original Industrial Spare S7-300 Compatible

Product Overview

Siemens 6GK7343-5FA01-0XE0 CP 343-5 Original Industrial Spare: System Stability & PROFIBUS Maintenance Value

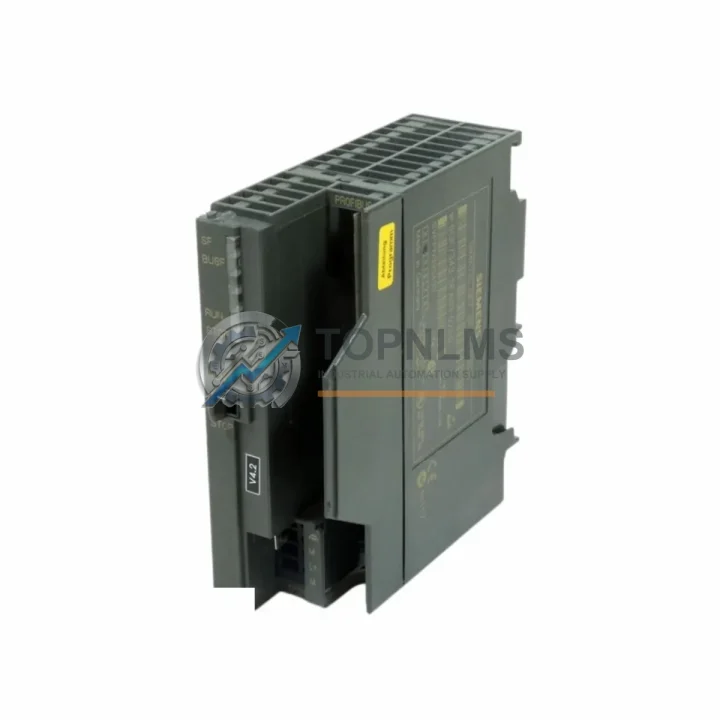

The Siemens 6GK7343-5FA01-0XE0 is an original CP 343-5 PROFIBUS Communications Processor designed for the S7-300 PLC platform. In industrial environments where network communication integrity is mission-critical, this module serves as the backbone of PROFIBUS DP/FMS connectivity between the S7-300 CPU and field devices, distributed I/O racks, drives, and instrumentation. Maintaining a verified original spare of the 6GK7343-5FA01-0XE0 in your inventory is a cornerstone of any responsible preventive maintenance and system continuity strategy.

Unplanned downtime caused by a failed communications processor can cascade across an entire production line. When the CP 343-5 fails, the S7-300 CPU loses visibility over all connected PROFIBUS slaves — including ET 200M remote I/O stations, SINAMICS and MICROMASTER drives, SIRIUS motor starters, and field instruments — bringing operations to a halt. Having a pre-tested, ready-to-deploy replacement on the shelf eliminates the lead time risk and allows maintenance teams to restore communication within minutes rather than days.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for any S7-300-based control system should treat the CP 343-5 as a high-priority spare. During scheduled shutdowns and cabinet inspections, maintenance engineers should simultaneously audit the health of all modules sharing the same S7-300 rack. The PS 307 power supply module (e.g., 6ES7307-1EA01-0AA0) should be checked for output voltage stability and capacitor aging — a degraded power supply is a leading cause of intermittent CP module faults. Alongside the power supply, the S7-300 CPU module (such as the CPU 315-2 DP or CPU 317-2 DP) should be inspected for battery backup status and memory card integrity.

On the PROFIBUS network side, the PROFIBUS bus connector (e.g., 6ES7972-0BA52-0XA0) and PROFIBUS cable condition should be verified — damaged shielding or loose termination resistors are common sources of intermittent communication errors that are often misdiagnosed as CP module failures. If the system uses ET 200M remote I/O stations (IM 153-x interface modules), their backplane connectors and I/O modules should be inspected during the same maintenance window, as a failing remote station can generate excessive PROFIBUS bus load and stress the CP 343-5.

For systems integrating variable frequency drives via PROFIBUS, the PROFIBUS DP adapter cards fitted to SINAMICS G120 or MICROMASTER 440 drives should be checked for firmware currency and connector integrity. In control cabinets with high ambient temperatures, the fan/filter units for the S7-300 rack should be replaced on schedule to prevent thermal stress on the CP module. Additionally, 24 V DC terminal blocks and fuse modules supplying field devices on the PROFIBUS network should be tested for continuity and correct fuse ratings — an intermittent field power fault can cause slave dropouts that appear as CP-level errors.

For older S7-300 installations approaching end-of-life, it is advisable to maintain a broader spares kit that includes the S7-300 DI/DO signal modules (SM 321/SM 322 series), analog I/O modules (SM 331/SM 332), and at least one spare CPU module with a pre-loaded program backup. This holistic approach to spare parts inventory management ensures that any single-point failure — whether at the communications, processing, or I/O layer — can be resolved within a single maintenance shift.

Strategic Replacement Solutions

The 6GK7343-5FA01-0XE0 is a direct replacement for earlier CP 343-5 variants used in legacy S7-300 systems that have been in continuous operation for 10–20 years. Many facilities running original S7-300 racks from the late 1990s and 2000s face the challenge of sourcing verified original spare modules as the installed base ages. The CP 343-5 form factor and backplane interface are fully compatible across all standard S7-300 rack configurations, meaning a replacement module can be installed without mechanical modification.

Replacement procedure is straightforward: with the rack de-energized, the failed CP module is unclipped from the DIN rail and the backplane bus connector is disconnected. The replacement 6GK7343-5FA01-0XE0 is inserted, the bus connector re-engaged, and the rack powered up. Configuration is restored via STEP 7 or TIA Portal by downloading the existing hardware configuration — no re-parameterization of the PROFIBUS network is required if the replacement module carries the same firmware baseline. This plug-and-restore capability minimizes mean time to repair (MTTR) and reduces the skill level required for field replacement.

For facilities managing multiple S7-300 racks across different production cells, a centralized spare parts strategy — maintaining one CP 343-5 unit per 3–5 installed racks — provides an optimal balance between inventory carrying cost and downtime risk. Pre-testing each spare unit on a bench rack before storage ensures that the module is confirmed functional and ready for immediate deployment, eliminating the risk of installing a defective spare during an emergency repair.

Support FAQ

Q1: Is the 6GK7343-5FA01-0XE0 compatible with all S7-300 CPU variants?
Yes. The CP 343-5 is compatible with all standard S7-300 CPUs that support PROFIBUS DP/FMS communication, including the CPU 312, 314, 315-2 DP, 317-2 DP, and 319 series. It occupies one slot on the S7-300 rack and communicates via the backplane bus. Verify your STEP 7 hardware catalog version supports the specific firmware revision of the replacement module.

Q2: What pre-shipment testing is performed on this module?
Each 6GK7343-5FA01-0XE0 unit is powered-on tested and functionally verified before shipment. Basic PROFIBUS communication initialization and backplane bus integrity are confirmed. The module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I verify compatibility before installing the replacement module?
Confirm that your existing STEP 7 or TIA Portal hardware configuration includes the CP 343-5 (6GK7343-5FA01-0XE0) in the hardware catalog. Check the firmware version of the replacement module against your project’s hardware configuration. If the firmware version differs, update via STEP 7 online functions before going live. Always perform a backup of the existing CPU program and hardware configuration before any module replacement.

Q4: What is the recommended spare parts holding strategy for CP 343-5 modules?
For facilities with 1–3 installed CP 343-5 modules, maintain a minimum of one verified spare on-site. For larger installations with 4 or more units, a ratio of one spare per 4 installed modules is recommended. Spares should be stored in anti-static packaging in a climate-controlled environment (0–40 °C, <75% RH non-condensing) and functionally re-verified every 24 months to confirm readiness.
