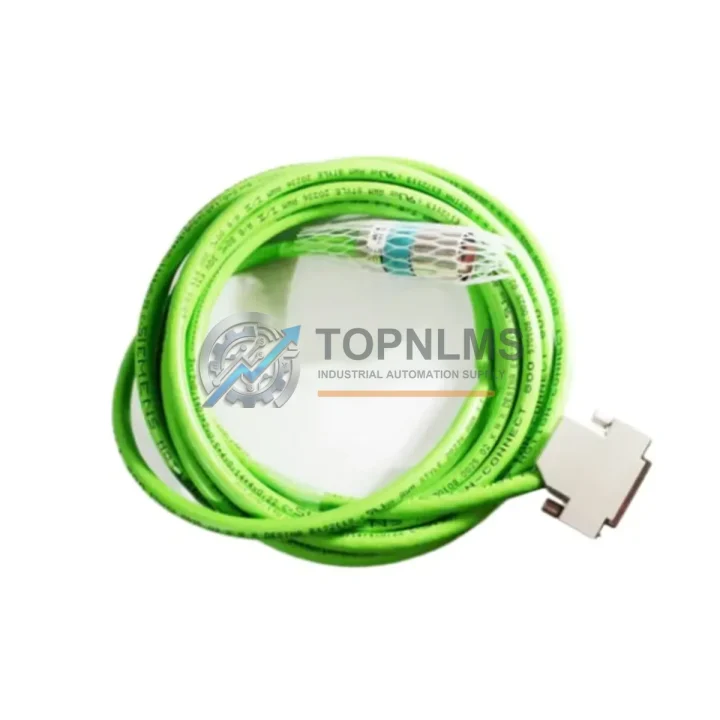

Siemens 6FX8002-2EQ20-1BA0 Original Industrial Spare MOTION-CONNECT 800

Product Overview

Siemens 6FX8002-2EQ20-1BA0 Original Industrial Spare MOTION-CONNECT 800: System Stability and Servo Drive Maintenance Value

The Siemens 6FX8002-2EQ20-1BA0 is an original MOTION-CONNECT 800 trailing servo signal cable engineered for continuous-flex applications in demanding industrial automation environments. Designed to withstand millions of bending cycles without signal degradation, this cable is a critical link between servo drives and motors in SINAMICS-based motion control systems. For maintenance engineers managing aging servo infrastructure or planning preventive replacement cycles, sourcing a genuine 6FX8002-2EQ20-1BA0 directly eliminates compatibility risk and ensures uninterrupted production continuity.

In high-cycle manufacturing lines — automotive assembly, packaging machinery, CNC machining centers, and robotic welding cells — the servo signal cable is one of the highest-wear components in the drive train. Unlike structural components that fail visibly, cable degradation is insidious: intermittent encoder faults, axis following errors, and unexplained E-stops often trace back to a fatigued signal cable long before a complete break occurs. Stocking the 6FX8002-2EQ20-1BA0 as a designated spare eliminates diagnostic ambiguity and dramatically shortens mean time to repair (MTTR) during unplanned downtime events.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your Servo Drive System

A structured preventive maintenance program for SINAMICS-based servo systems should treat the 6FX8002-2EQ20-1BA0 signal cable as part of a broader inspection and replacement cycle — not an isolated component. During scheduled shutdowns, maintenance teams should simultaneously inspect the MOTION-CONNECT 500 power cable (e.g., 6FX5002-5CS01 series) that runs in parallel with the signal cable, as both share the same drag chain and experience identical mechanical stress. A signal cable that has reached its replacement threshold almost always indicates the power cable is approaching the same condition.

At the drive cabinet level, the SINAMICS S120 Control Unit CU320-2 DP and its associated Drive-CLiQ hub module DMC20 should be verified for firmware currency and connector integrity whenever a cable replacement is performed. Loose or corroded Drive-CLiQ connectors are a common secondary fault source that can mimic cable-related encoder errors. Similarly, the SINAMICS S120 Active Line Module (ALM) and Motor Module (booksize or chassis) should be checked for DC link voltage stability and cooling fan condition during the same maintenance window.

For multi-axis systems, it is best practice to replace signal cables on all axes simultaneously rather than on a fault-by-fault basis. This approach prevents the scenario where a newly replaced axis cable exposes latent faults on adjacent axes. Maintenance planners should also stock the SINAMICS S120 Sensor Module Cabinet-Mounted SMC20 as a companion spare — encoder signal conditioning faults are frequently misdiagnosed as cable failures, and having the SMC20 available enables rapid swap-and-test diagnostics without waiting for parts procurement.

Terminal block integrity within the servo cabinet deserves attention during any cable replacement. Siemens SIRIUS 3RT contactors and 3RV circuit breakers in the motor branch circuit should be inspected for contact wear and thermal discoloration. The 24 VDC SITOP power supply module feeding the control electronics should also be load-tested, as an aging power supply with marginal output voltage can cause intermittent encoder communication faults that are indistinguishable from cable degradation at the drive diagnostics level.

For facilities running legacy SIMATIC S7-300 or S7-400 PLC systems coordinating SINAMICS drives via PROFIBUS DP, the CP 342-5 or CP 443-5 communication processor and associated PROFIBUS connectors should be inspected for bus termination integrity. A degraded bus termination resistor can introduce cyclic communication errors that appear as axis faults, masking the true root cause and extending diagnostic time unnecessarily.

Strategic Replacement Solutions: Minimizing Downtime, Preserving System Compatibility

The 6FX8002-2EQ20-1BA0 is a direct OEM replacement for worn or damaged trailing signal cables in existing SINAMICS S120 and S210 installations. Because it is an original Siemens MOTION-CONNECT 800 cable with factory-assembled connectors, it requires no field termination, no pin-out verification, and no encoder parameter re-commissioning — the drive recognizes the motor immediately upon connection. This plug-and-play replacement characteristic is critical in high-pressure downtime scenarios where every minute of lost production carries measurable cost.

For facilities managing end-of-life servo systems where the original motor or drive has been discontinued, the MOTION-CONNECT 800 cable family provides a forward-compatible signal interface that supports both legacy HTL/TTL encoder protocols and modern DRIVE-CLiQ absolute encoder communication. This means the cable investment remains valid even when the motor or drive is upgraded in a future modernization project, protecting the capital expenditure and avoiding redundant cable replacement during system upgrades.

Procurement teams should note that sourcing the 6FX8002-2EQ20-1BA0 through a verified industrial spare parts supplier — rather than through spot-market channels — ensures traceability, authentic Siemens manufacturing standards, and consistent lead times. Each unit shipped from TOPNLMS is individually tested for continuity, shielding integrity, and connector seating before dispatch, with a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions.

Support FAQ

Q1: Is the 6FX8002-2EQ20-1BA0 compatible with my existing SINAMICS S120 booksize drive system?
Yes. The MOTION-CONNECT 800 trailing signal cable series is designed for direct compatibility with SINAMICS S120 booksize and chassis format drive systems, as well as SINAMICS S210 single-axis drives. The pre-assembled connectors match the standard motor feedback interface without any adapter or re-termination. Always verify the cable length suffix in the part number matches your installation distance before ordering.

Q2: How do I verify the cable condition before it fails completely?
SIMAMICS drive diagnostics will log encoder communication faults (e.g., F07801, F07802, A07850) as early indicators of signal cable degradation. Additionally, physical inspection of the cable jacket for cracking, flattening, or kinking in the drag chain travel zone should be performed at each scheduled maintenance interval. Cables showing visible jacket damage should be replaced proactively regardless of current fault status.

Q3: What is your pre-shipment testing and warranty policy?
Every 6FX8002-2EQ20-1BA0 unit is tested for electrical continuity, shield integrity, and connector mechanical fit before dispatch. Units are shipped with original or equivalent protective packaging to prevent transit damage. A 12-month warranty covers manufacturing defects and premature failure under normal industrial operating conditions. Warranty claims are processed with full technical support from our team.

Q4: Should I stock this cable as a preventive spare, and how many units are recommended?
For facilities with 3 or more SINAMICS servo axes sharing a common drag chain infrastructure, we recommend maintaining a minimum of 1–2 units of the 6FX8002-2EQ20-1BA0 as on-site cold spares. For high-cycle applications (>200 cycles/day), a 12-month replacement interval is a conservative benchmark. Bulk procurement pricing is available — contact our team for volume quotation and lead time confirmation.
