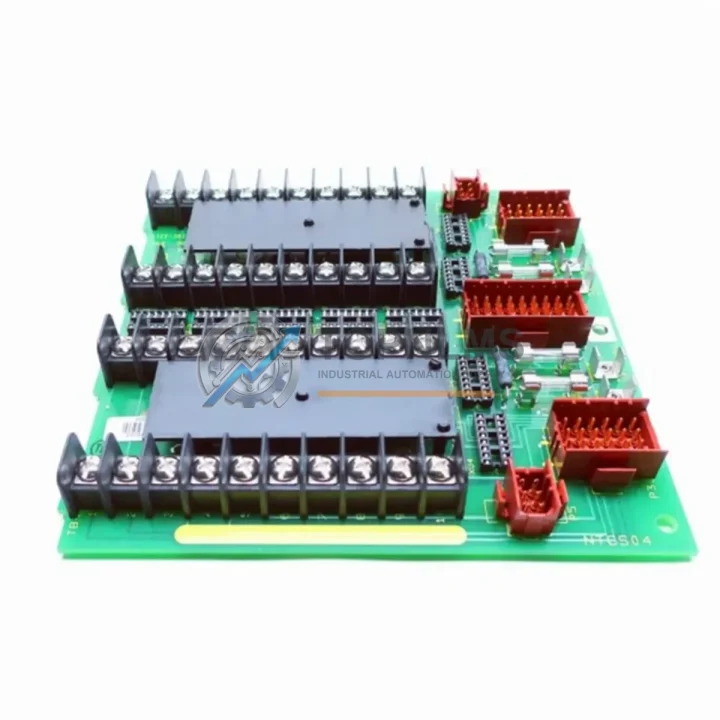

Siemens NTCS04 Ruggedized I/O Termination Module – INSUM Series: Industrial Resilience for Harsh Environments

The Siemens NTCS04 is a Control I/O Termination Module engineered as part of the INSUM (Intelligent Motor Control Unit) series — Siemens’ dedicated architecture for intelligent motor management and low-voltage switchgear integration. Designed to operate reliably in the most demanding industrial conditions, the NTCS04 serves as the critical interface between field-level I/O signals and the motor control center (MCC) bus, ensuring deterministic, noise-immune signal transmission even in environments characterized by high electromagnetic interference, mechanical vibration, thermal cycling, and airborne particulate contamination.

In continuous production facilities — including petrochemical plants, offshore platforms, underground mining operations, steel mills, and municipal water treatment stations — control system uptime is non-negotiable. The NTCS04 is built to sustain that uptime. Its compact, rail-mounted form factor integrates seamlessly into standard control cabinets alongside Siemens SIMATIC S7-300/S7-400 PLCs, ET 200 distributed I/O stations, SIRIUS motor starters, and SENTRON circuit protection devices, forming a cohesive, fully coordinated automation architecture.

Rugged Specifications Table

Comprehensive Protection Solutions

The NTCS04 does not operate in isolation — it is the connective tissue of a broader Siemens INSUM motor management ecosystem. In a typical MCC panel, the NTCS04 termination module interfaces directly with the NTCS01 or NTCS02 INSUM communication modules, which handle PROFIBUS DP or DeviceNet protocol translation between the field bus and the motor control units. Upstream, a Siemens SIMATIC S7-315 or S7-416 CPU processes the aggregated I/O data, executing protection logic and sequencing commands across multiple motor feeders simultaneously.

For power distribution integrity within the same cabinet, Siemens SENTRON 3VA molded-case circuit breakers provide upstream overcurrent and short-circuit protection, while SIRIUS 3RT contactors handle the switching duty for motor loads. The NTCS04’s termination function ensures that all discrete control signals — start, stop, fault reset, and status feedback — are cleanly routed without ground loops or signal degradation, even when installed adjacent to high-current switching devices.

In high-vibration environments such as compressor stations or mining conveyors, the NTCS04’s robust terminal block design and secure rail-locking mechanism prevent intermittent connections that could trigger nuisance trips or, worse, undetected control failures. Paired with Siemens SIRIUS 3RN1 thermistor motor protection relays and 3UF7 SIMOCODE motor management units, the NTCS04 contributes to a layered protection strategy that monitors motor temperature, current imbalance, and run-time hours — all critical parameters in continuous-duty industrial applications.

For installations requiring functional safety compliance, the NTCS04 can be deployed alongside Siemens SIRIUS 3SK safety relays and ET 200SP fail-safe I/O modules to achieve SIL 2 or PLd safety integrity levels per IEC 62061 and ISO 13849-1. Communication continuity is maintained through Siemens SCALANCE X industrial Ethernet switches or PROFIBUS repeaters, ensuring that the INSUM bus remains stable even in electrically noisy environments with variable-frequency drives (VFDs) operating nearby.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the NTCS04 is deployed within Ex-rated motor control centers managing pump motors, compressors, and wellhead control systems. Its deterministic I/O termination ensures that emergency shutdown (ESD) signals propagate without delay, a requirement mandated by IEC 61511 functional safety standards for process industries. The module’s resistance to hydrogen sulfide-laden atmospheres (when housed in appropriately rated enclosures) and its tolerance for wide ambient temperature swings make it a preferred choice for remote unmanned stations.

In underground coal and metal mining, where explosive atmospheres, high humidity, and constant mechanical shock are operational realities, the NTCS04 is integrated into surface-level MCC rooms controlling conveyor drives, ventilation fans, and dewatering pumps. Its reliable I/O termination prevents the false starts and missed stop commands that could result in catastrophic equipment damage or personnel injury.

At thermal and hydroelectric power generation plants, the NTCS04 supports auxiliary motor control systems for cooling water pumps, fuel handling conveyors, and turbine lube oil systems. In these applications, the module operates continuously for years without maintenance intervention, a testament to Siemens’ engineering standards for industrial-grade components.

Municipal water and wastewater treatment facilities rely on the NTCS04 within their SCADA-integrated MCC panels to manage aeration blowers, sludge pumps, and UV disinfection system drives. The module’s compatibility with PROFIBUS DP — via the associated INSUM communication modules — allows plant operators to monitor motor status and energy consumption from a central SIMATIC WinCC HMI, reducing the need for manual field inspections in chemically aggressive environments.

In metallurgical and steel production, where ambient temperatures near furnaces can exceed 50°C and electromagnetic interference from arc furnaces is severe, the NTCS04’s EMC-hardened design ensures signal integrity across the entire I/O termination chain, preventing the spurious commands that could disrupt rolling mill sequencing or ladle crane operations.
