Siemens 6ES7195-7HD10-0XA0 Ruggedized Bus Module for Harsh Environments

Product Overview

Siemens 6ES7195-7HD10-0XA0 Ruggedized Bus Module for Harsh Environments

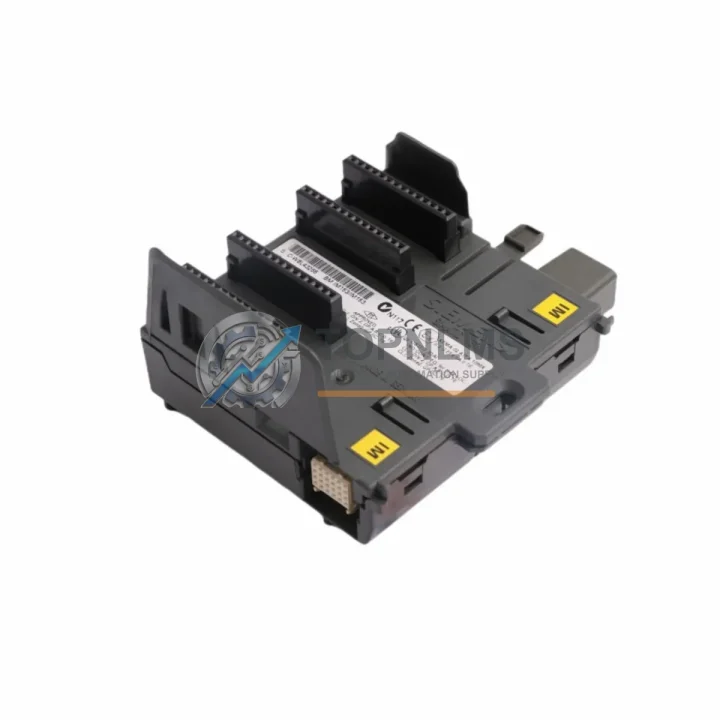

The Siemens 6ES7195-7HD10-0XA0 is a high-integrity backplane bus module engineered for the ET 200M distributed I/O station — one of Siemens’ most widely deployed remote I/O platforms in the SIMATIC S7 ecosystem. Designed to operate reliably under extreme industrial conditions including elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module is a cornerstone component for engineers who cannot afford unplanned downtime. Whether installed in a petrochemical control cabinet, a mining automation panel, or a continuous steel-rolling line, the 6ES7195-7HD10-0XA0 delivers the structural and electrical backbone that keeps distributed I/O systems running without interruption.

As a backplane connector bus module, the 6ES7195-7HD10-0XA0 provides the physical and electrical interconnect between the IM 153-x interface module and the signal modules (SMs), function modules (FMs), and communication processors (CPs) mounted on the ET 200M rack. Its robust mechanical design ensures that even in environments subject to constant vibration — such as those found near heavy presses, compressors, or rotating machinery — the module-to-module signal integrity is maintained. The gold-plated bus contacts resist oxidation in humid or chemically aggressive atmospheres, extending service life well beyond what standard commercial-grade connectors can offer.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7195-7HD10-0XA0 does not operate in isolation — it is the structural foundation upon which a complete ET 200M station is assembled. In a typical distributed control architecture, the interface module IM 153-2 (6ES7153-2BA02-0XB0) connects the remote station to the PROFIBUS DP network, while digital input modules such as the SM 321 6ES7321-1BL00-0AA0 and digital output modules like the SM 322 6ES7322-1BL00-0AA0 handle field-level signal acquisition and actuation. Analog process values — temperature, pressure, flow — are captured by the SM 331 6ES7331-7KF02-0AB0 analog input module, all of which rely on the bus module’s backplane connectivity to communicate with the central SIMATIC S7-300 CPU (such as the CPU 315-2 DP, 6ES7315-2AH14-0AB0).

In safety-critical installations, the ET 200M station is often paired with a SIMATIC S7 F-series safety CPU or a dedicated F-SM fail-safe signal module (e.g., SM 326 6ES7326-1BK02-0AB0) to achieve SIL 2 or SIL 3 compliance under IEC 61511. The bus module’s reliable backplane connection is essential in these configurations — any intermittent contact could compromise the safety function. Similarly, in high-vibration environments, engineers frequently specify the 6ES7390-1AE80-0AA0 profile rail with additional module retaining clips to complement the mechanical stability that the 6ES7195-7HD10-0XA0 provides.

Power supply integrity is equally critical. The SITOP PSU100S 6EP1334-2BA20 24 VDC stabilized power supply is a common companion in ET 200M panels, ensuring that voltage fluctuations from heavy motor loads or welding equipment do not propagate into the control backplane. For communication redundancy in high-availability plants, the CP 342-5 6GK7342-5DA02-0XE0 PROFIBUS communication processor can be added to the same ET 200M rack, sharing the same bus module infrastructure.

Application in Critical Infrastructure

The Siemens 6ES7195-7HD10-0XA0 has proven its reliability across the most demanding sectors of critical infrastructure worldwide. In oil and gas processing facilities, ET 200M stations equipped with this bus module are deployed in Ex Zone 2 marshalling cabinets, where the combination of flammable atmospheres, wide temperature swings, and continuous vibration from compressor trains demands components with zero tolerance for intermittent failure. The module’s robust backplane design ensures that PROFIBUS DP communication between the remote I/O station and the DCS host — often a Siemens PCS 7 system — remains uninterrupted across multi-year production campaigns.

In underground mining operations, where coal dust, water ingress, and mechanical shock are constant threats, the 6ES7195-7HD10-0XA0 is installed inside sealed IP65 or IP67 enclosures as part of conveyor belt control systems, ventilation automation, and emergency shutdown (ESD) panels. Its compatibility with the full range of ET 200M signal modules means that a single standardized hardware platform can serve both routine process control and safety instrumented system (SIS) functions.

Power generation and grid substations represent another key application domain. In coal-fired, hydroelectric, and combined-cycle gas turbine plants, the ET 200M distributed I/O architecture — anchored by the 6ES7195-7HD10-0XA0 bus module — provides the field interface for turbine control, boiler management, and balance-of-plant automation. The module’s compliance with EN 61000-6-2 electromagnetic immunity standards is particularly valuable in high-voltage switchgear environments where conducted and radiated interference levels far exceed those found in typical manufacturing settings.

In water and wastewater treatment plants, the module supports long-term, low-maintenance operation in pump stations and chemical dosing systems where access for maintenance is infrequent and reliability over multi-year intervals is non-negotiable. Metallurgical plants — including electric arc furnace (EAF) steelmaking facilities — rely on the ET 200M platform for ladle handling automation, where thermal radiation and electromagnetic pulses from furnace operations create one of the harshest electrical environments in industry.
