Siemens 6ES7193-1CH00-0XA0 Ruggedized Terminal Block Module: Industrial Resilience for Harsh Environments

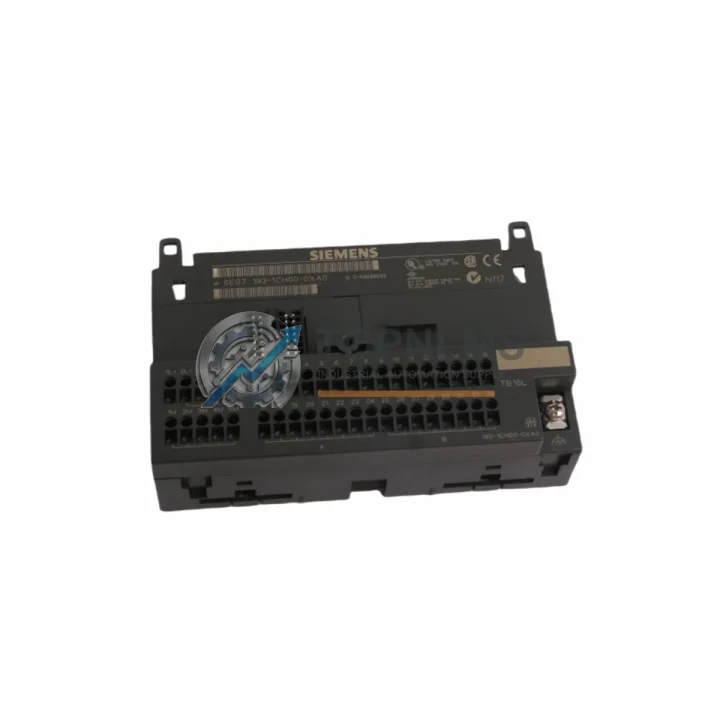

The Siemens 6ES7193-1CH00-0XA0 is a ruggedized terminal block module engineered for the SIMATIC ET 200L and ET 200B distributed I/O families — two of Siemens’ most field-proven decentralized peripheral systems. Designed to operate reliably in the most demanding industrial environments, this module delivers stable, low-resistance signal termination under conditions of elevated temperature, high humidity, mechanical vibration, airborne particulates, and electromagnetic interference. Whether deployed on a continuous production line, inside a sealed control cabinet, or at a remote field station in a hazardous area, the 6ES7193-1CH00-0XA0 maintains signal integrity and system uptime where it matters most.

In modern industrial automation architectures, the terminal block is not a passive component — it is a critical interface between field wiring and the control system. A compromised terminal connection introduces noise, signal drift, or outright failure into the I/O chain, cascading into PLC faults, unplanned shutdowns, and costly production losses. The 6ES7193-1CH00-0XA0 addresses this risk with Siemens’ characteristic engineering precision: robust screw-clamp or spring-cage termination, vibration-resistant housing, and full compatibility with the ET 200L and ET 200B bus structures.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7193-1CH00-0XA0 is rarely deployed in isolation. In a typical SIMATIC ET 200L station, it works in direct conjunction with the 6ES7151-1AA04-0AB0 IM 151-1 interface module, which handles PROFIBUS DP communication between the field station and the central S7-300 or S7-400 PLC rack. The terminal block module provides the physical wiring interface for digital or analog I/O modules such as the 6ES7131-1BH01-0XB0 (8-channel digital input) and 6ES7132-1BH01-0XB0 (8-channel digital output), ensuring that field sensor and actuator signals are cleanly terminated before entering the I/O processing chain.

In control cabinet applications, the 6ES7193-1CH00-0XA0 is frequently installed alongside Siemens SITOP PSU100S 24V DC power supply modules, which provide the stabilized 24 V DC rail required by the ET 200 I/O bus. Reliable power delivery is essential: voltage fluctuations or ripple on the supply rail can cause spurious I/O faults that are difficult to diagnose in the field. Pairing the terminal block with a quality SITOP power supply eliminates this variable from the reliability equation.

For applications requiring safety-rated I/O — such as emergency stop circuits, light curtain monitoring, or two-hand control interlocks — the ET 200 architecture supports integration with Siemens F-DI and F-DO safety I/O modules (e.g., 6ES7136-6BA00-0CA0 for ET 200SP, or equivalent ET 200L safety-rated variants). The 6ES7193-1CH00-0XA0 terminal block provides the field-side wiring interface that connects these safety modules to the physical process, making correct termination a safety-critical task, not merely a convenience.

Communication reliability in noisy industrial environments is further supported by PROFIBUS DP bus connectors (such as the 6ES7972-0BA52-0XA0) and PROFIBUS repeaters where cable runs exceed standard distance limits or cross high-EMI zones. The terminal block’s role in maintaining clean ground references and shielded cable termination directly contributes to PROFIBUS signal quality. Additionally, Siemens S7-300 CPU modules (e.g., CPU 315-2 DP, 6ES7315-2AH14-0AB0) and CP 342-5 PROFIBUS communication processors form the upstream control layer that depends on the integrity of every terminal connection in the distributed I/O network.

Application in Critical Infrastructure

The Siemens 6ES7193-1CH00-0XA0 has established a strong service record across critical infrastructure sectors where unplanned downtime carries severe operational and safety consequences.

Oil & Gas: In upstream wellhead automation and midstream pipeline SCADA systems, ET 200L stations equipped with this terminal block module are used to interface pressure transmitters, solenoid valve actuators, and flame detection sensors with the central DCS or safety instrumented system (SIS). The module’s vibration resistance and wide temperature tolerance make it suitable for installation in outdoor junction boxes and pressurized instrument enclosures.

Mining & Minerals Processing: Continuous mining operations subject control hardware to extreme mechanical shock, coal dust ingress, and high-voltage electromagnetic interference from large drive systems. The 6ES7193-1CH00-0XA0, installed within IP54 or IP65 rated enclosures, provides the reliable I/O termination needed for conveyor belt monitoring, crusher control, and ventilation fan management — systems where a single wiring fault can trigger a site-wide safety shutdown.

Power Generation & Utilities: In thermal power plants and hydroelectric facilities, SIMATIC ET 200 distributed I/O systems are deployed for turbine auxiliary control, cooling water monitoring, and switchgear status acquisition. The terminal block module’s EMC compliance ensures that high-frequency switching noise from power electronics does not corrupt analog measurement signals.

Water & Wastewater Treatment: Municipal water treatment plants operate 24/7 in high-humidity environments with aggressive chemical atmospheres. ET 200L stations using the 6ES7193-1CH00-0XA0 provide reliable I/O termination for pump control, flow metering, and chemical dosing systems, where corrosion-resistant wiring interfaces and stable signal termination are essential for regulatory compliance and public safety.

Metallurgy & Heavy Industry: Steel mills, aluminum smelters, and foundries present some of the harshest electrical environments in industry — high ambient temperatures, radiated heat from furnaces, and massive electromagnetic fields from arc furnaces and induction heaters. The 6ES7193-1CH00-0XA0’s robust construction and Siemens’ proven EMC design philosophy make it a trusted choice for I/O termination in these extreme conditions.
