Siemens 6ES7158-0AD00-0XA0 Original Industrial Spare S7 Compatible: System Stability & Industrial Spare Maintenance Value

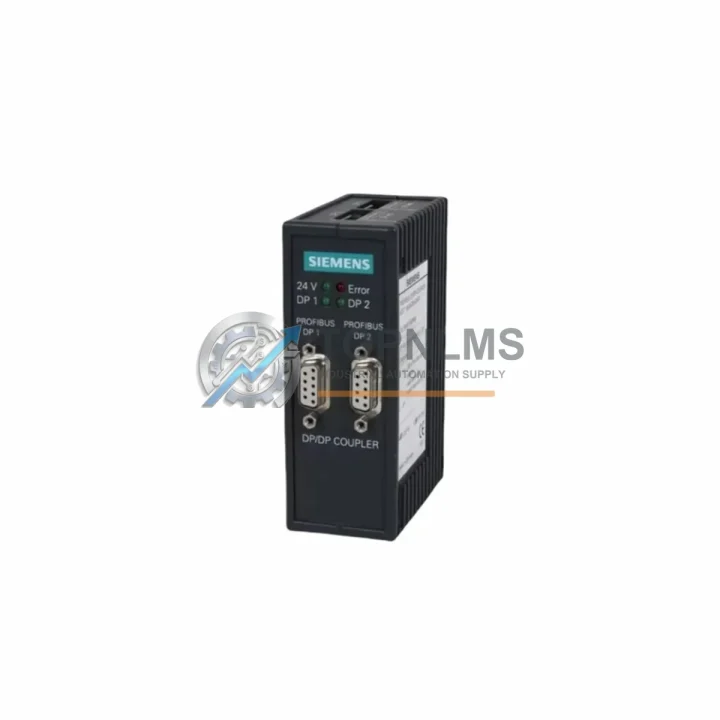

The Siemens 6ES7158-0AD00-0XA0 is an original PROFIBUS DP/DP Coupler module designed for SIMATIC S7 automation networks. In industrial environments where production continuity is non-negotiable, this coupler serves as a critical bridge between two independent PROFIBUS DP segments, enabling seamless data exchange without a master controller intermediary. Whether you are managing a large-scale manufacturing line, a process automation cell, or a legacy S7-300/S7-400 control system, maintaining a verified spare of the 6ES7158-0AD00-0XA0 in your inventory is a foundational element of any responsible preventive maintenance strategy.

Unplanned downtime caused by a failed DP/DP coupler can cascade across an entire production segment. Because the 6ES7158-0AD00-0XA0 operates as a transparent coupling device — passing cyclic data between two PROFIBUS DP masters — its failure effectively isolates one network segment from another, halting communication and triggering fault states across all connected slaves. Fast, like-for-like replacement with an original Siemens spare eliminates reconfiguration risk and restores system operation without reprogramming or hardware substitution.

Critical Technical Specs Table

Preventive Maintenance Strategy

A PROFIBUS DP network is only as reliable as its weakest component. When scheduling a planned shutdown or conducting a control cabinet inspection on an S7-300 or S7-400 system, the 6ES7158-0AD00-0XA0 coupler should be evaluated alongside the broader network infrastructure. Maintenance engineers frequently discover that a degraded coupler is accompanied by worn PROFIBUS connectors (such as the 6ES7972-0BB52-0XA0 bus connector with 90° cable exit), aged network cables, or termination resistors that have drifted out of specification — all of which contribute to intermittent communication faults that are difficult to diagnose under load.

During a cabinet inspection, it is equally important to verify the health of the CPU module powering the DP master — commonly a 6ES7315-2EH14-0AB0 (CPU 315-2 DP) or 6ES7416-2XN05-0AB0 (CPU 416-2) — as CPU firmware faults can mimic coupler failures. The 24 V DC power supply feeding the PROFIBUS segment, such as a 6EP1334-2BA20 SITOP PSU100S, should be load-tested and its output ripple verified. A failing power supply is a common root cause of erratic DP communication that is often misattributed to the coupler itself.

For systems using distributed I/O, the ET 200M interface module (6ES7153-2BA02-0XB0 IM153-2) connected on the slave segment should be inspected for firmware currency and connector integrity. Signal modules such as the 6ES7321-1BL00-0AA0 (SM321 32-channel DI) or 6ES7322-1BL00-0AA0 (SM322 32-channel DO) should be checked for channel faults that may indicate wiring degradation rather than module failure. Where analog signals are involved, the 6ES7331-7KF02-0AB0 (SM331 8-channel AI) is a frequent companion module whose calibration should be verified during any planned maintenance window.

Communication health across the PROFIBUS segment can be further assessed using a PROFIBUS diagnostic repeater (6ES7972-0AB01-0XA0), which provides segment-level diagnostics without interrupting live production. Pairing this diagnostic capability with a spare 6ES7158-0AD00-0XA0 coupler in your maintenance kit ensures that if a fault is confirmed, replacement can occur within the same maintenance window — eliminating a second unplanned outage.

For facilities managing aging S7 infrastructure, proactive stocking of the 6ES7158-0AD00-0XA0 alongside related interface and communication modules is a recognized best practice in industrial spare parts lifecycle management. The cost of a single unplanned production stoppage typically exceeds the value of a complete spare parts kit by an order of magnitude.

Strategic Replacement Solutions

The 6ES7158-0AD00-0XA0 is a direct original replacement for earlier PROFIBUS DP/DP coupler variants used in SIMATIC S7 networks. It maintains full backward compatibility with existing PROFIBUS DP master configurations, requiring no changes to GSD files, hardware configuration in STEP 7 or TIA Portal, or network addressing. This plug-and-play replacement characteristic is critical in time-sensitive maintenance scenarios where engineering resources may not be immediately available to perform a full reconfiguration.

For facilities transitioning from older S7-300 architectures toward PROFINET-based systems, the 6ES7158-0AD00-0XA0 provides a cost-effective bridge strategy — maintaining PROFIBUS DP segment integrity while the broader migration is planned and executed in phases. This approach avoids the capital expenditure of a full network replacement while preserving production stability during the transition period.

All units supplied by TOPNLMS are sourced as original Siemens components, individually tested for electrical integrity and communication function prior to shipment. Each unit ships with full packaging, documentation reference, and a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
