Siemens 6ES7157-0AC83-0XA0 Replacement for ET 200M: Smooth Migration from Legacy PROFIBUS Systems

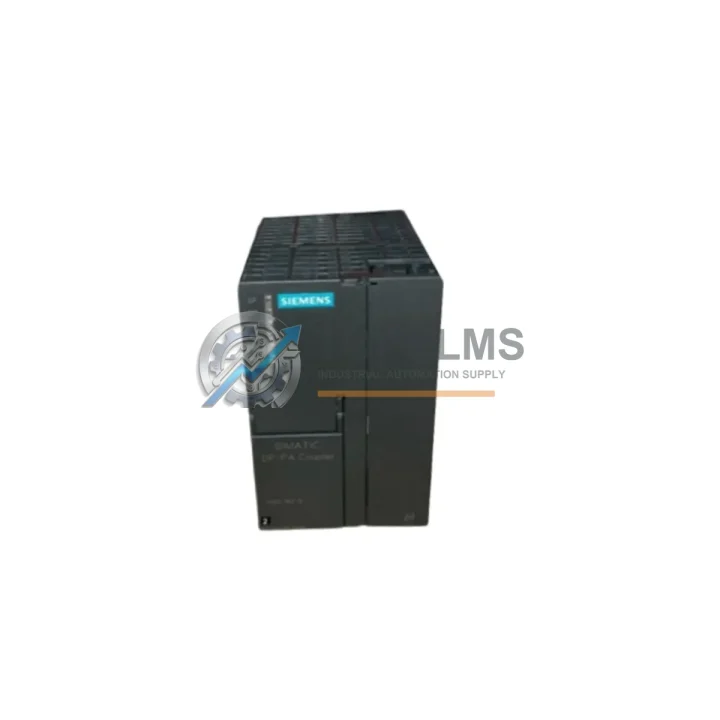

The Siemens 6ES7157-0AC83-0XA0 is a PROFIBUS DP/PA Coupler module designed for the SIMATIC ET 200M distributed I/O station. As industrial facilities transition away from aging PROFIBUS PA field device networks and legacy DP master configurations, this coupler serves as a critical bridge — enabling a smooth, low-risk migration path without requiring full system redesign. Whether you are replacing a failed unit, upgrading from an earlier-generation coupler such as the 6ES7157-0AC80-0XA0 or 6ES7157-0AC82-0XA0, or consolidating spare parts inventory ahead of a planned shutdown, the 6ES7157-0AC83-0XA0 delivers the compatibility and reliability your process demands.

This module connects the PROFIBUS DP backplane of the ET 200M rack directly to a PROFIBUS PA segment, allowing PA field instruments — including pressure transmitters, flow meters, and positioners — to communicate transparently with the S7-300 or S7-400 CPU upstream. The coupler handles all necessary signal conversion, power conditioning for the PA bus, and protocol bridging, eliminating the need for external segment couplers or additional power supplies in most standard cabinet configurations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy PROFIBUS PA architecture to a modernized ET 200M station involves more than swapping the coupler module. In practice, engineers replacing the 6ES7157-0AC83-0XA0 often simultaneously address adjacent components that have reached end-of-life or require reconfiguration.

The ET 200M station itself is typically anchored by an interface module such as the IM 153-2 or IM 153-4 PN, which manages communication between the S7-300 backplane and the distributed rack. When the coupler is replaced, it is advisable to verify the firmware revision of the interface module and confirm GSD file compatibility with your PROFIBUS master — particularly if the upstream controller is a CPU 315-2 DP, CPU 317-2 DP, or a CP 342-5 communications processor handling the DP master role.

On the PA field side, the segment topology must be reviewed. Devices such as Endress+Hauser Promass Coriolis flow meters, Siemens SITRANS P pressure transmitters, or Yokogawa EJA differential pressure transmitters connected to the PA trunk will continue to operate without re-addressing, provided the segment coupler’s power budget is recalculated after the swap. A PA segment terminator — typically a passive RC network — must remain correctly positioned at both ends of the trunk cable to prevent signal reflections.

For sites running parallel DP and PA segments within the same control cabinet, the SM 321 digital input module and SM 331 analog input module installed in adjacent slots of the ET 200M rack are unaffected by the coupler replacement. Their wiring, parameter assignments, and process image mappings remain intact, which significantly reduces commissioning time during the retrofit.

If the migration scope extends to the controller level — for example, transitioning from a legacy S7-300 CPU to a more capable S7-400 or SIMATIC S7-1500 platform — the 6ES7157-0AC83-0XA0 remains compatible with the existing PA field devices, allowing a phased approach: upgrade the controller first, retain the PA field instruments and coupler, then modernize the field layer in a subsequent maintenance window. This staged strategy minimizes production downtime and capital expenditure.

Power distribution within the cabinet should also be reviewed. The PS 307 power supply module feeding the ET 200M rack must deliver sufficient current for the coupler and all connected PA devices. In high-density installations, a dedicated PA power conditioner or segment power supply may be required to supplement the backplane supply, particularly when more than 10 PA field devices are connected to a single segment.

Programming changes are minimal for a like-for-like coupler replacement. The hardware configuration in STEP 7 or TIA Portal requires only a module swap in the rack view, with no changes to the OB, FB, or FC program blocks. If upgrading from a predecessor coupler revision, re-importing the updated GSD file and performing a hardware download is sufficient to restore full communication.

Retrofit Guidance FAQ

Q: Can I replace the 6ES7157-0AC80-0XA0 or 6ES7157-0AC82-0XA0 directly with the 6ES7157-0AC83-0XA0?
A: Yes. The -0AC83- revision is the current production replacement for earlier -0AC80- and -0AC82- variants. The physical slot footprint, backplane connector, and PA terminal layout are identical. No mechanical modifications to the rack or cabinet are required.

Q: Do I need to modify my STEP 7 hardware configuration?
A: For a direct revision upgrade, update the GSD file in your hardware catalog and perform a hardware configuration download. No changes to the software program (OBs, FBs, DBs) are necessary. TIA Portal users should import the updated GSDML file before compiling the hardware configuration.

Q: Will my existing PA trunk cable wiring remain valid?
A: Yes. The PA trunk cable connections (positive and negative bus conductors, shield) terminate on the same screw terminal block positions. Polarity and shielding practices remain unchanged. Verify that the segment terminator at the far end of the PA trunk is still active after the swap.

Q: What is the maximum number of PA devices supported per segment?
A: Up to 32 PA devices per segment, subject to the total current draw on the PA bus not exceeding the coupler’s power budget. In practice, 10–15 devices per segment is typical for process plant installations to maintain adequate signal margins.

Q: Is the module compatible with PROFIBUS DP masters other than Siemens CPUs?
A: The 6ES7157-0AC83-0XA0 operates as a standard PROFIBUS DP slave on the DP side, making it compatible with any IEC 61158-compliant DP master, including third-party PLCs and DCS controllers that support PROFIBUS DP V1.

Q: How long does commissioning take after a coupler replacement?
A: For a like-for-like swap with no program changes, experienced engineers typically complete the physical replacement, hardware download, and PA segment verification within 2–4 hours, including functional testing of all connected PA field devices.
