Siemens 6ES7134-6HD00-0BA1 Replacement for ET 200SP: Smooth Migration & Legacy System Compatibility

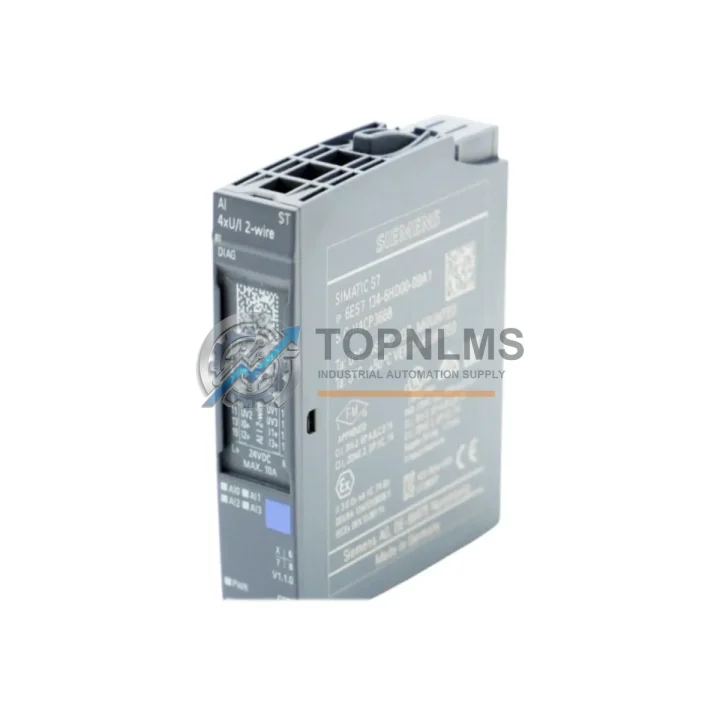

The Siemens 6ES7134-6HD00-0BA1 is a 4-channel analog input module designed for the ET 200SP distributed I/O system, operating within the SIMATIC S7-1500 and S7-300/S7-400 control architectures via PROFINET and PROFIBUS-DP communication backbones. As production lines age and original equipment manufacturers discontinue legacy variants, sourcing a verified replacement or upgrade path for this module becomes a critical procurement decision — one that directly affects plant uptime, control system integrity, and maintenance budgets.

At TOPNLMS, we specialize in supplying industrial automation components for exactly these migration scenarios. Whether your facility is retiring an older S7-300 rack-based analog input card such as the 6ES7331-7KF02-0AB0, or consolidating distributed I/O from a legacy ET 200M station running 6ES7153-2BA02-0XB0 interface modules, the 6ES7134-6HD00-0BA1 offers a compact, rail-mounted upgrade path that integrates directly into your existing ET 200SP BaseUnit infrastructure without requiring new cabinet space or major rewiring.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 6ES7134-6HD00-0BA1 rarely involves a single module swap. In practice, engineers replacing aging ET 200M or S7-300 analog input cards must also evaluate the surrounding system components to ensure end-to-end compatibility.

The ET 200SP architecture requires a compatible BaseUnit — typically the 6ES7193-6BP00-0BA0 (BU15-P16+A0+2D) — to host this analog input module. If your existing cabinet uses older terminal blocks or marshalling panels, the push-in terminal design of the ET 200SP BaseUnit simplifies field wiring and reduces installation time significantly compared to the screw-terminal front connectors used on S7-300 analog cards.

For the PROFINET backbone, the ET 200SP Interface Module 6ES7155-6AU01-0BN0 (IM 155-6 PN ST) serves as the head station connecting the ET 200SP island to the S7-1500 CPU or existing PROFINET switch infrastructure. If your plant currently runs PROFIBUS-DP, a DP/PN Coupler or a gateway module may be required to bridge legacy field devices during a phased migration, allowing the new ET 200SP island to coexist with older PROFIBUS segments without a full cutover.

On the power side, the ET 200SP system requires a 24 VDC load group power module — such as the 6ES7138-6CB01-0BA0 PM-E DC24V — to supply field-side power to actuators and sensors connected to the analog input channels. Verifying that your existing 24 VDC panel supply has sufficient current capacity for the expanded ET 200SP island is a standard pre-commissioning step.

For facilities still running SIMATIC S7-300 CPUs such as the CPU 315-2 PN/DP (6ES7315-2EH14-0AB0), the migration path typically involves either upgrading the CPU to an S7-1500 series controller or retaining the S7-300 CPU while replacing the I/O layer with ET 200SP distributed stations. In either case, the analog signal wiring from field instruments — pressure transmitters, temperature sensors, flow meters — can often be reused directly, as the 4–20 mA and ±10 V signal ranges are preserved across generations.

Where signal isolation is required between legacy field devices and the new ET 200SP analog inputs, signal isolators or loop-powered barriers can be inserted in-line without modifying the ET 200SP module configuration. This is particularly relevant in hazardous area installations or where ground loop interference has been identified as a historical issue on the existing analog wiring.

Programming migration from STEP 7 Classic to TIA Portal is supported by Siemens’ migration tools, and the hardware configuration for the 6ES7134-6HD00-0BA1 is available in the TIA Portal hardware catalog from V14 SP1 onward. Channel parameter assignments — including measurement range, filter time, and diagnostic enable — are configured identically to other ET 200SP analog input modules, reducing the learning curve for engineers already familiar with the platform.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing an S7-300 analog input card with the 6ES7134-6HD00-0BA1?
A: In most cases, yes. The 4–20 mA and ±10 V signal ranges are compatible. However, the wiring termination point changes from the S7-300 front connector to the ET 200SP BaseUnit push-in terminals, so field cables will need to be re-terminated at the BaseUnit.

Q: Is the 6ES7134-6HD00-0BA1 compatible with PROFIBUS-DP systems?
A: The module itself communicates via the ET 200SP backplane bus. PROFINET connectivity is provided by the ET 200SP Interface Module. For PROFIBUS-DP integration, a DP/PN coupler or gateway is required at the network level.

Q: What TIA Portal version is required for hardware configuration?
A: TIA Portal V14 SP1 or higher. The module is listed in the hardware catalog under ET 200SP analog input modules.

Q: Does the module fit in the same cabinet space as the replaced S7-300 card?
A: The ET 200SP form factor is significantly more compact than S7-300 rack modules. A full ET 200SP island with BaseUnits and Interface Module typically occupies less DIN rail space than an equivalent S7-300 rack, making it suitable for cabinet retrofits where space is constrained.

Q: Can I mix this module with other ET 200SP I/O modules on the same island?
A: Yes. The ET 200SP system supports mixed I/O islands combining digital input, digital output, analog input, analog output, and communication modules on a single Interface Module, up to the maximum module count supported by the IM variant in use.

Warranty Assurance

Every 6ES7134-6HD00-0BA1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including power-on testing and visual inspection for physical integrity. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing for customers experiencing production-critical downtime. Our after-sales response target is within 24 hours of a warranty claim submission. We maintain stock of key ET 200SP components to support rapid replacement dispatch.

For procurement teams requiring documentation, we can provide test records, packing lists, and commercial invoices upon request. Bulk orders and long-term supply agreements are available for MRO and system integrator customers.

Contact our technical sales team to confirm availability, request a quotation, or discuss your specific migration requirements before placing an order.
