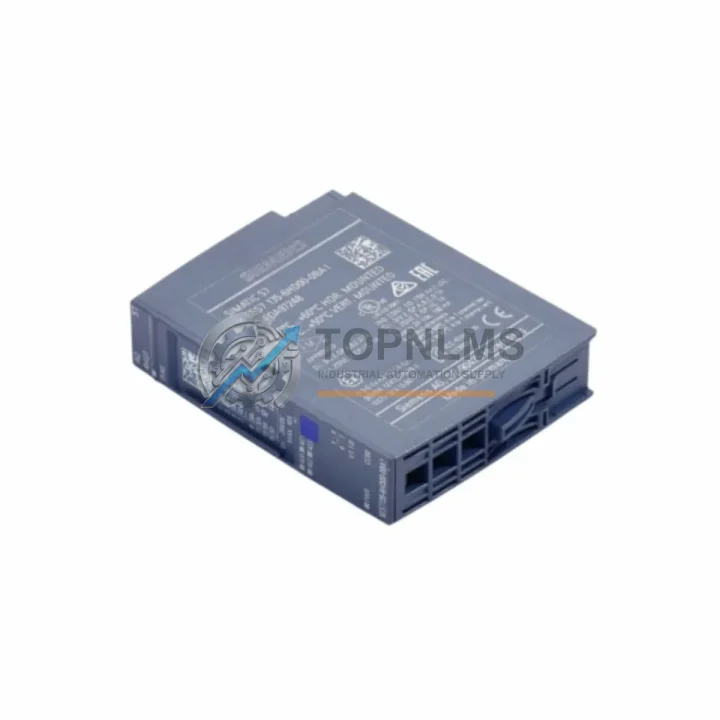

Siemens 6ES7135-6HD00-0BA1 Ruggedized Analog Output Module

Product Overview

Siemens 6ES7135-6HD00-0BA1 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The Siemens 6ES7135-6HD00-0BA1 is a high-precision analog output module engineered for the SIMATIC ET 200SP distributed I/O system — one of the most widely deployed control architectures in global industrial automation. Designed to deliver four channels of configurable voltage or current output (AQ 4xU/I ST), this module is built to sustain continuous, reliable operation in environments where temperature extremes, mechanical vibration, airborne particulates, elevated humidity, and electromagnetic interference are everyday realities. Whether installed in a compact control cabinet on a petrochemical platform, integrated into a DCS-linked marshalling panel in a power generation facility, or mounted in a distributed I/O rack on a high-speed automotive assembly line, the 6ES7135-6HD00-0BA1 delivers the signal fidelity and operational stability that mission-critical processes demand.

In heavy industrial settings — including mining, metallurgy, water treatment, oil and gas, and cement production — analog output modules are the interface between the controller and the physical process. The 6ES7135-6HD00-0BA1 converts digital setpoints from the SIMATIC S7-1500 or S7-1200 CPU into precise 0–10 V or 4–20 mA signals that drive control valves, variable-frequency drives (VFDs), electro-pneumatic positioners, and proportional hydraulic actuators. Signal integrity is maintained even in the presence of strong electromagnetic fields generated by large motors, welding equipment, and high-voltage switchgear — a direct result of Siemens’ proven EMC design philosophy embedded in the ET 200SP platform.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7135-6HD00-0BA1 does not operate in isolation — it is a precision component within a broader, interdependent control architecture. In a typical ET 200SP station, it is paired with a BaseUnit BU15-P16+A10+2D (6ES7193-6BP20-0BA0), which provides the mechanical mounting interface, backplane bus connection, and terminal wiring points. The interface module — commonly the IM 155-6 PN ST (6ES7155-6AU01-0BN0) — bridges the ET 200SP rack to the PROFINET network, enabling the S7-1500 CPU to address each analog output channel with deterministic cycle times suited to closed-loop control.

On the digital side, companion modules such as the 6ES7131-6BF01-0BA0 (DI 8×24VDC ST) and 6ES7132-6BF01-0BA0 (DQ 8×24VDC/0.5A ST) handle discrete process signals — limit switches, solenoid valve commands, and motor contactor feedback — within the same compact rack. For applications requiring functional safety, the F-DI and F-DQ safety modules from the ET 200SP F-series can be integrated into the same station, allowing the 6ES7135-6HD00-0BA1 to coexist with SIL 2/3-rated safety I/O under a unified TIA Portal engineering environment.

Power integrity is maintained by Siemens SITOP PSU8200 24 V DC power supplies, which provide regulated, filtered DC power with active buffering to protect the entire ET 200SP station — including the analog output module — against mains voltage dips and transient surges common in heavy industrial facilities. Surge protection devices and EMC filter modules installed at the cabinet entry point further reduce conducted interference before it reaches sensitive analog circuitry. For communication redundancy in critical infrastructure, the IM 155-6 PN HF interface module supports media redundancy protocol (MRP), ensuring that a single cable fault does not interrupt analog output signals to field actuators.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 6ES7135-6HD00-0BA1 is deployed to modulate control valve positioners on wellhead choke manifolds, gas compression skids, and pipeline pressure regulation stations. The module’s 4–20 mA current output mode is preferred in these environments because current loops are inherently immune to the voltage drop caused by long cable runs — often exceeding several hundred meters in field installations. Its ability to operate reliably at elevated ambient temperatures and in the presence of hydrocarbon vapors (when housed in appropriate Ex-rated enclosures) makes it a trusted component in ATEX Zone 2 classified areas.

In electric power generation and grid substations, the module drives analog setpoints to automatic voltage regulators (AVRs), turbine governor actuators, and reactive power compensation systems. The stringent EMC immunity requirements of IEC 61000-6-2 — which the ET 200SP platform meets — are essential in substation environments where high-voltage switching events generate intense electromagnetic transients. Water and wastewater treatment plants rely on the 6ES7135-6HD00-0BA1 to control variable-speed pump drives, chemical dosing pumps, and aeration blower VFDs, where continuous 24/7 operation and resistance to high-humidity, corrosive-atmosphere conditions are non-negotiable.

In metallurgical and steel production facilities, the module is integrated into rolling mill control systems, furnace temperature regulation loops, and ladle crane automation panels. The combination of high-resolution 16-bit output, fast conversion times, and robust mechanical design allows it to maintain tight process tolerances even when subjected to the intense vibration and radiated EMI generated by large induction furnaces and high-current bus bars. Mining operations — from conveyor drive control to flotation cell reagent dosing — similarly depend on the module’s rugged construction and long-term availability as a Siemens standard catalog item.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Customers are required to return the defective unit with the original invoice. Warranty claims are processed within 5 business days of receiving the returned item. Contact [email protected] to initiate a claim.

Q2: How is each unit tested before shipment?
Every 6ES7135-6HD00-0BA1 unit undergoes pre-shipment functional verification, including power-on self-test, channel output accuracy check across the full 0–20 mA and 0–10 V ranges, and visual inspection for physical damage or counterfeit indicators. Units sourced from authorized distribution channels are accompanied by original Siemens packaging and traceable lot codes. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6ES7135-6HD00-0BA1 compatible with existing S7-300/S7-400 systems?
The 6ES7135-6HD00-0BA1 is a native ET 200SP module and is not directly interchangeable with S7-300 SM or S7-400 SM analog output modules. However, it can be integrated into S7-300/S7-400 systems via an ET 200SP station connected through a PROFIBUS DP or PROFINET interface module, allowing legacy systems to benefit from the ET 200SP’s compact form factor and enhanced diagnostics without a full CPU migration.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. The 6ES7135-6HD00-0BA1 is an active Siemens catalog product with a published lifecycle status. TOPNLMS maintains buffer stock specifically to support MRO (maintenance, repair, and operations) customers who require guaranteed availability for planned shutdowns, emergency replacements, and multi-year spare parts programs. Customers with recurring procurement needs are encouraged to contact us to discuss framework agreements and reserved inventory arrangements.
