Siemens 6ES7134-4JB00-0AB0 Ruggedized Analog Input Module

Product Overview

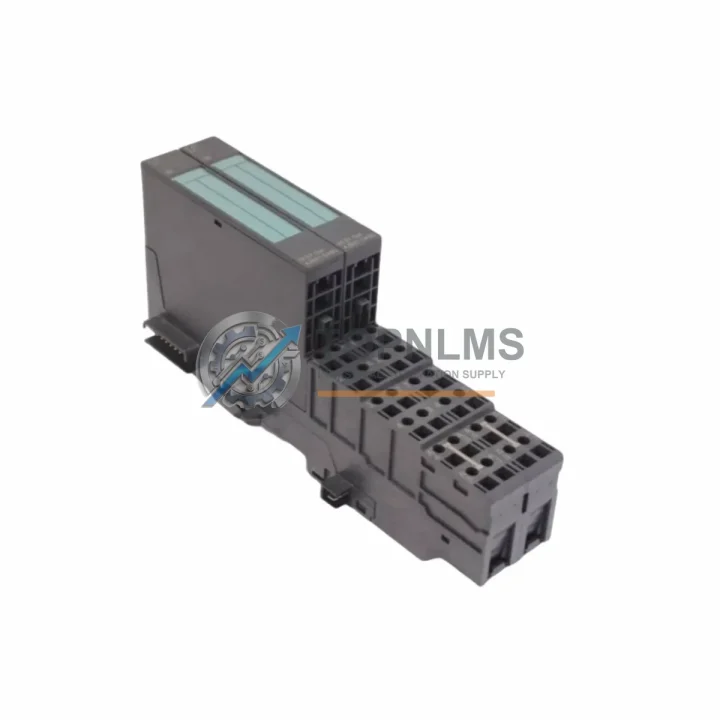

Siemens 6ES7134-4JB00-0AB0 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Siemens 6ES7134-4JB00-0AB0 is a 2-channel analog input electronic module designed for the ET 200S distributed I/O system — one of Siemens’ most widely deployed field-level automation platforms. Built to operate reliably in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and operational continuity that mission-critical industrial processes demand.

In continuous production environments — from petrochemical refineries and offshore platforms to underground mining operations and steel rolling mills — analog signal accuracy is non-negotiable. The 6ES7134-4JB00-0AB0 accepts standard analog input signals (voltage and current) and converts them with high resolution for processing by the ET 200S interface module and the upstream SIMATIC S7-300 or S7-400 PLC controller. Its compact rail-mount form factor integrates seamlessly into existing ET 200S station assemblies without requiring additional wiring infrastructure changes.

Designed to meet the rigorous demands of IEC 61131-2 and CE certification standards, this module is engineered for long-term deployment in safety-sensitive control cabinets. Its robust housing and conformal-coated PCB design provide resistance to condensation and corrosive atmospheres, making it a dependable choice for water treatment facilities, power generation substations, and chemical processing plants where environmental exposure is a constant operational challenge.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7134-4JB00-0AB0 does not operate in isolation — it is one component within a tightly integrated ET 200S station architecture. In a typical control cabinet deployment, this analog input module works alongside the IM 151-1 interface module (6ES7151-1AA05-0AB0), which manages PROFIBUS DP communication back to the central SIMATIC S7-300 CPU. Digital I/O modules such as the 6ES7131-4BF00-0AA0 (4-channel digital input) and 6ES7132-4BF00-0AA0 (4-channel digital output) share the same ET 200S rail, enabling a mixed-signal station that handles both discrete and analog field signals from a single compact assembly.

For power distribution within the cabinet, the PM-E 24 V DC power module (6ES7138-4CA01-0AA0) provides regulated bus power to the entire ET 200S station, ensuring stable supply voltage even when upstream industrial power sources experience transient fluctuations. In high-vibration environments such as compressor rooms or heavy press lines, the terminal modules (6ES7193-4CA30-0AA0 series) provide secure, vibration-resistant wiring termination for each electronic module, eliminating the risk of signal loss due to connector loosening.

Where process safety is paramount — such as in SIL-rated loops for emergency shutdown systems — the 6ES7134-4JB00-0AB0 can be paired with Siemens SIMATIC Safety analog input modules (F-AI series) within the same ET 200S station to create a hybrid standard/safety I/O architecture. Communication integrity is maintained through the PROFIBUS DP protocol, with the IM 151-1 interface module providing deterministic cycle times essential for real-time process control. For installations requiring PROFINET connectivity, the IM 151-3 PN interface module (6ES7151-3AA23-0AB0) offers a direct migration path without replacing the existing electronic modules.

Surge protection devices and EMC filter modules installed at the cabinet entry points further shield the 6ES7134-4JB00-0AB0 from conducted interference originating from variable frequency drives (VFDs), motor starters, and high-current switching equipment operating in the same facility. This layered protection approach — from cabinet-level shielding to module-level EMC compliance — ensures that analog measurement accuracy is maintained even in electrically noisy industrial environments.

Application in Critical Infrastructure

The Siemens 6ES7134-4JB00-0AB0 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream operations, ET 200S stations equipped with this analog input module monitor wellhead pressure transmitters, flow meters, and temperature sensors in remote field junction boxes, transmitting real-time process data to SCADA systems via PROFIBUS DP. The module’s wide storage temperature range and vibration tolerance make it suitable for installation in outdoor marshalling cabinets exposed to desert heat or arctic cold.

In coal-fired and gas-fired power generation plants, the 6ES7134-4JB00-0AB0 is deployed in boiler control systems to acquire analog signals from thermocouples, RTDs, and pressure transducers monitoring steam temperature, drum pressure, and feedwater flow. Its high-resolution 13-bit conversion ensures that small process deviations are detected early, enabling the DCS or PLC to initiate corrective action before a process excursion escalates into a safety event.

Water and wastewater treatment facilities rely on this module for continuous monitoring of pH sensors, dissolved oxygen probes, turbidity meters, and chemical dosing flow transmitters. The module’s resistance to high-humidity environments — common in pump stations and filtration halls — ensures long-term measurement reliability without the signal drift that can compromise treatment quality compliance. In metallurgical plants and aluminum smelters, where electromagnetic interference from arc furnaces and rectifier banks is severe, the module’s EMC-hardened design maintains signal integrity across the analog input channels, supporting precise temperature and current control in electrolytic reduction cells.

Mining operations — both surface and underground — deploy ET 200S systems with the 6ES7134-4JB00-0AB0 for conveyor belt load monitoring, ventilation fan speed feedback, and hydraulic pressure measurement in longwall mining equipment. The module’s compact form factor allows installation in space-constrained underground electrical rooms, while its robust construction withstands the constant mechanical vibration inherent to mining environments.

Security & Quality FAQ

Q1: What warranty coverage is provided for the 6ES7134-4JB00-0AB0?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Each module undergoes functional testing prior to dispatch, including power-on verification and channel integrity checks. If a unit fails within the warranty period under normal operating conditions, TOPNLMS will arrange replacement or repair at no additional cost to the buyer.

Q2: How is compatibility with existing ET 200S stations verified before shipment?
The 6ES7134-4JB00-0AB0 is a standard Siemens catalog module with a fixed hardware revision. TOPNLMS verifies the firmware version and hardware revision marking on each unit before shipment. Compatibility with IM 151-1 and IM 151-3 interface modules, as well as STEP 7 and TIA Portal GSD/GSDML configuration files, is confirmed based on Siemens’ published compatibility matrices. Buyers are encouraged to provide their existing station configuration for pre-shipment compatibility review.

Q3: Is long-term supply continuity available for this module?
Yes. TOPNLMS maintains buffer stock of high-demand ET 200S modules, including the 6ES7134-4JB00-0AB0, to support customers with ongoing maintenance and spare parts programs. For customers managing aging SIMATIC S7-300/ET 200S installations, we offer scheduled procurement agreements to ensure availability of critical spare modules without lead-time risk. Contact our team to discuss volume pricing and reserved stock arrangements.

Q4: What field safety considerations apply when replacing this module in a live system?
The ET 200S system supports hot-swapping of electronic modules when the station is configured for module replacement during operation (MRO mode) and the process safety requirements permit it. However, TOPNLMS strongly recommends following your site’s Management of Change (MOC) procedure and isolating the affected analog loop before module replacement in safety-instrumented systems. All replacement modules supplied by TOPNLMS are shipped in anti-static packaging with protective covers on the bus connectors to prevent ESD damage during handling.
