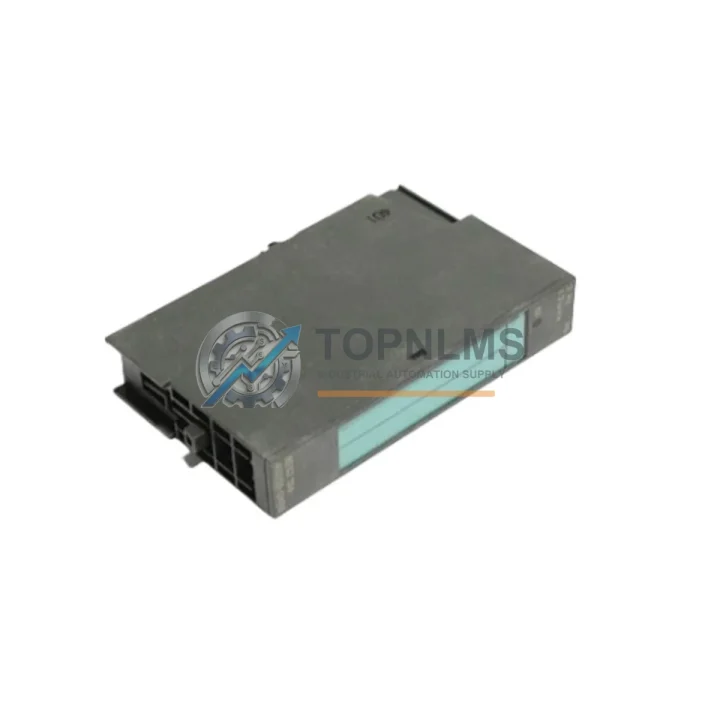

Siemens 6ES7134-4GB50-0AB0 Ruggedized Analog Input Module

Product Overview

Siemens 6ES7134-4GB50-0AB0 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Siemens 6ES7134-4GB50-0AB0 is a 2-channel analog input module engineered for the ET 200S distributed I/O system — one of Siemens’ most widely deployed field-level automation platforms. Designed to operate reliably in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and operational continuity demanded by mission-critical industrial installations.

In continuous production environments — from petrochemical refineries and offshore platforms to underground mining operations and high-voltage power substations — analog signal accuracy is non-negotiable. The 6ES7134-4GB50-0AB0 accepts standard process signals (voltage and current) and converts them with high resolution for processing by the SIMATIC S7-300 or S7-400 CPU via the ET 200S interface module. Its compact terminal module design enables hot-swappable replacement without interrupting adjacent channels, minimizing unplanned downtime during maintenance windows.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7134-4GB50-0AB0 is rarely deployed in isolation. In a fully configured ET 200S station, it operates alongside the 6ES7138-4CA01-0AA0 power module, which provides stable 24 V DC bus supply even under fluctuating grid conditions common in heavy industrial sites. Signal integrity from field transmitters is further protected when paired with the 6ES7134-4FB01-0AB0 2-channel analog input module for temperature measurement, allowing the control system to monitor both process variables and thermal conditions simultaneously.

For digital control loops in the same cabinet, the 6ES7131-4BF00-0AA0 8-channel digital input module and 6ES7132-4BF00-0AA0 8-channel digital output module handle discrete I/O tasks — motor start/stop commands, valve position feedback, and safety interlock signals — while the analog module manages continuous process variables such as pressure, flow, and level. The 6ES7193-4CA40-0AA0 terminal module provides the mechanical and electrical base for the 6ES7134-4GB50-0AB0, enabling tool-free replacement in live panels.

Communication integrity across the plant floor is maintained through the 6GK7343-1EX30-0XE0 PROFIBUS CP module or PROFINET interface modules, ensuring that analog data from the ET 200S station reaches the S7-300 CPU without latency or packet loss — critical in closed-loop control applications. For installations requiring functional safety, the 6ES7138-4FC01-0AB0 F-power module and compatible F-I/O modules can be integrated into the same ET 200S rack, enabling SIL 2-rated safety loops without requiring a separate safety PLC chassis.

In control cabinets where space is constrained and thermal management is critical, the 6ES7134-4GB50-0AB0’s slim 15 mm profile allows dense I/O packing alongside SITOP power supplies, circuit breakers, and surge protection devices — all within a single DIN-rail assembly that meets IEC 61439 panel-building standards.

Application in Critical Infrastructure

In oil and gas upstream operations, the 6ES7134-4GB50-0AB0 is deployed in wellhead control panels and separator skids where 4–20 mA transmitters report pressure and differential flow. The module’s high common-mode rejection ratio ensures accurate readings even when long cable runs from field instruments introduce ground loop noise — a persistent challenge in remote installations with poor earthing infrastructure.

In underground coal and metal mining, the ET 200S system — anchored by this analog input module — monitors conveyor belt tension, ventilation fan speed feedback, and hydraulic pressure in roof support systems. The module’s certified vibration and shock resistance means it continues to function accurately even when mounted in proximity to blasting zones or heavy machinery with significant mechanical transmission.

At thermal and hydroelectric power generation facilities, the 6ES7134-4GB50-0AB0 reads turbine bearing temperature signals and generator cooling water flow rates, feeding real-time data to the plant DCS for predictive maintenance algorithms. Its compatibility with PROFIBUS DP ensures seamless integration into legacy Siemens TDC or PCS 7 architectures without requiring gateway hardware.

In municipal water treatment and wastewater plants, the module handles analog inputs from pH sensors, dissolved oxygen probes, and chlorine dosing flow meters — all of which require stable, drift-free signal conditioning across seasonal temperature extremes. The module’s wide storage temperature range and humidity tolerance make it equally suitable for outdoor junction boxes in tropical climates.

For metallurgical and steel mill applications, where electromagnetic interference from arc furnaces and induction heaters is severe, the 6ES7134-4GB50-0AB0’s EMC-hardened design — compliant with EN 61000-4-2 through EN 61000-4-6 — maintains signal fidelity without requiring additional shielding beyond standard cable practices.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping and re-testing are handled by our technical team.

Q2: How is each unit tested before shipment?
Every 6ES7134-4GB50-0AB0 unit undergoes pre-shipment functional verification: power-on self-test, channel-by-channel analog signal injection at 0%, 50%, and 100% of rated input range, and visual inspection for connector integrity and label authenticity. Units that do not pass all test points are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with both PROFIBUS DP and PROFINET architectures?
Yes. The 6ES7134-4GB50-0AB0 is a slot module that operates within the ET 200S station regardless of the interface module used. It is fully compatible with IM 151-1 (PROFIBUS DP), IM 151-3 PN (PROFINET), and IM 151-7 CPU (standalone) interface modules. No firmware changes or hardware modifications are required when migrating between communication protocols at the station level.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains dedicated stock of ET 200S series modules, including the 6ES7134-4GB50-0AB0, to support customers with multi-year maintenance contracts and planned spare parts programs. For volume procurement or scheduled delivery agreements, contact our sales team to discuss allocation, lead times, and pricing. We support both one-time emergency replacement orders and structured annual supply agreements.
