Siemens 6ES7132-6BH01-0BA0 Ruggedized Digital Output Module

Product Overview

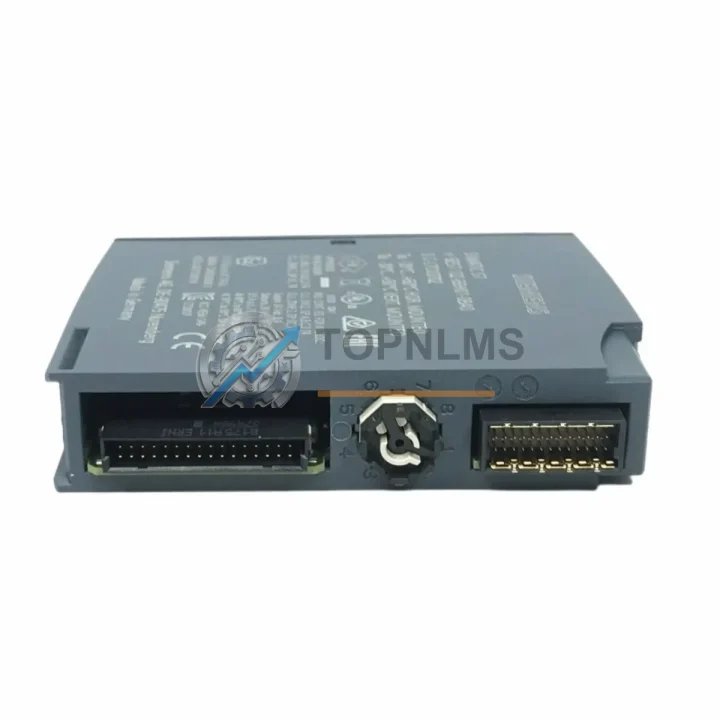

Siemens 6ES7132-6BH01-0BA0 Ruggedized Digital Output Module: Industrial Resilience for Harsh Environments

The Siemens 6ES7132-6BH01-0BA0 is a high-density digital output module engineered for the ET 200SP distributed I/O system — one of Siemens’ most compact and field-proven SIMATIC automation platforms. Designed to deliver 16 channels of 24 VDC / 0.5 A digital output in a slim, rail-mounted form factor, this module is built to sustain continuous, fault-tolerant operation across the most demanding industrial environments, including high-temperature process lines, high-humidity coastal facilities, dust-laden mining galleries, vibration-intensive heavy machinery, and electromagnetically noisy power generation sites.

Where conventional I/O hardware degrades under thermal cycling, mechanical shock, or conducted EMI, the 6ES7132-6BH01-0BA0 maintains signal integrity and output switching accuracy. Its ST (Standard) output type provides short-circuit and overload protection on every channel, reducing unplanned downtime and protecting downstream field devices such as solenoid valves, contactors, indicator lamps, and relay coils. The module integrates seamlessly into SIMATIC ET 200SP stations managed by a CPU 1510SP-1 PN, CPU 1512SP-1 PN, or any compatible SIMATIC S7-1500 controller via PROFINET, making it a natural fit for both greenfield installations and brownfield upgrades.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7132-6BH01-0BA0 does not operate in isolation — it is the output backbone of a tightly integrated control architecture. In a typical ET 200SP station, it works alongside the Siemens 6ES7131-6BH01-0BA0 digital input module (DI 16×24VDC HF), which captures field signals from proximity sensors, limit switches, and safety interlocks. Together, these two modules form a complete I/O pair capable of handling the full signal loop in a single compact rail segment.

For analog process control loops — common in temperature regulation, pressure management, and flow metering — the 6ES7134-6GD01-0BA1 analog input module (AI 4×U/I/RTD/TC ST) and the 6ES7135-6GB00-0BA1 analog output module (AQ 2×U/I ST) extend the ET 200SP station’s capability without requiring additional fieldbus segments. When the application demands functional safety, the 6ES7136-6DC00-0CA0 F-DQ 4×24VDC/2A PM HF fail-safe digital output module can be installed in the same station, sharing the same PROFINET head module and power bus, enabling SIL 2 / PLd safety functions alongside standard I/O.

Power integrity is critical in harsh environments. The 6ES7138-6AA01-0BA0 power module (PM-E 24VDC ST) provides potential group isolation and load-side short-circuit protection for groups of I/O modules, preventing a single wiring fault from cascading across the entire station. For communication redundancy in high-availability lines, the 6GK7243-1BX30-0XE0 CM 1241 RS485 communications module or a PROFINET media redundancy ring (MRP) configuration ensures that a single cable break does not interrupt production. In cabinet environments where space is at a premium, the 6ES7193-6BP20-0DA0 BaseUnit and the 6ES7193-6BP00-0BA0 server module complete the mechanical and electrical assembly of the ET 200SP station.

For drive-level integration, the 6ES7132-6BH01-0BA0 is routinely used to issue run/stop, direction, and fault-reset commands to Siemens SINAMICS G120 variable frequency drives via hardwired digital I/O, complementing the PROFINET drive control channel with a deterministic hardware interlock layer — a requirement in many functional safety assessments for conveyor systems, pump stations, and compressor trains.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 6ES7132-6BH01-0BA0 is deployed in wellhead control panels and pipeline SCADA outstations where ambient temperatures fluctuate between sub-zero nights and high-summer peaks. Its wide supply voltage tolerance (20.4–28.8 VDC) accommodates the voltage sag common in remote solar/battery-backed power systems, while its transistor output type eliminates the contact wear and arc erosion associated with relay-based output modules in high-cycle valve actuation applications.

In underground mining operations, where coal dust, silica particulate, and mechanical vibration are constant threats, the module is installed inside sealed IP54 or IP65 control enclosures. Its DIN-rail snap-fit mounting and tool-free wiring via push-in terminals on the BaseUnit reduce maintenance time during shift changes, and its hot-swap capability (when used with the appropriate BaseUnit) allows module replacement without de-energizing the entire station — a critical feature in continuous longwall or conveyor operations where stopping the line carries significant production cost.

In power generation and grid substations, the module controls circuit breaker auxiliary contacts, transformer tap-changer relays, and cooling fan starters. Its compliance with IEC 61000 EMC standards ensures reliable operation in environments saturated with high-frequency switching transients from power electronics and high-voltage bus bars. Water treatment plants rely on the module to sequence dosing pump contactors, UV disinfection lamp ballasts, and sluice gate actuators across geographically distributed pump stations connected via PROFINET over fiber.

In steel and aluminum smelting facilities, where radiated heat from furnaces and induction heaters creates sustained high-temperature conditions, the module’s 0–60 °C operating range and conformal-coated PCB (on select production batches) provide the thermal margin needed for 24/7 continuous casting line control. Metallurgical plants also benefit from the module’s fast output response time, which supports precise timing of mold oscillation, cooling water valve sequencing, and ladle transfer crane interlocks.
