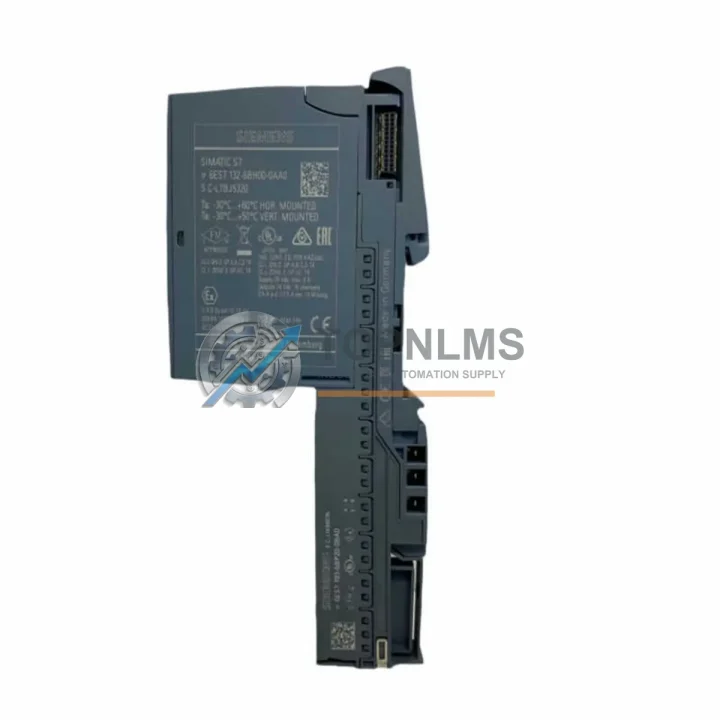

Siemens 6ES7132-6BH00-0AA0 Original Industrial Spare ET 200SP Compatible

Product Overview

Siemens 6ES7132-6BH00-0AA0 Original Industrial Spare ET 200SP Compatible: System Stability & Industrial Spare Parts Maintenance Value

In modern manufacturing and process automation environments, the reliability of every I/O module in a distributed control cabinet directly determines the uptime of the entire production line. The Siemens 6ES7132-6BH00-0AA0 is an original ET 200SP series 8-channel 24 VDC digital output module, engineered for high-density signal control in demanding industrial applications. Whether you are managing a scheduled shutdown inspection, responding to an unplanned fault, or building a strategic spare parts inventory to extend the life of an aging SIMATIC S7-1500 or S7-1200 system, this module represents a critical, field-proven component that maintenance teams worldwide rely on.

Sourced directly from authorized supply chains and fully tested prior to dispatch, each unit supplied by TOPNLMS carries a 12-month warranty, giving procurement engineers and plant maintenance managers the confidence to stock and deploy with minimal risk. Our pre-shipment inspection covers output channel integrity, terminal block seating, firmware compatibility markers, and housing condition — ensuring the module arrives ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy

A digital output module failure in an ET 200SP station rarely occurs in isolation. In practice, maintenance engineers conducting a cabinet inspection after a nuisance trip or scheduled downtime should treat the 6ES7132-6BH00-0AA0 replacement as an opportunity to audit the health of the entire I/O station and associated control loop. Begin by verifying the ET 200SP BaseUnit (BU15-P16+A10+2B) for terminal wear and push-in connector fatigue — a degraded BaseUnit can cause intermittent channel faults that are misdiagnosed as module failures.

Next, inspect the 24 VDC load power supply module (such as the 6ES7138-4CA01-0AA0 PM-E power module) feeding the output station. Voltage sag under load is a common root cause of output channel dropout. If the station includes analog output channels alongside digital outputs, the 6ES7132-6BF00-0AA0 analog output module should be checked for calibration drift, particularly in temperature-sensitive process loops.

For stations handling motor starter or contactor control, the associated relay output modules (e.g., 6ES7132-6GD51-0BA0) and their downstream 24 VDC contactor coils should be inspected for coil resistance and contact wear. Communication integrity between the ET 200SP station and the S7-1500 CPU depends on the PROFINET interface module (e.g., 6ES7155-6AU01-0BN0 IM 155-6 PN ST) — verify its firmware version and check for CRC error counters in the diagnostic buffer.

While the cabinet is open, it is good practice to inspect the 24 VDC system power supply (such as a SITOP PSU100S 6EP1334-2BA20) for output ripple and thermal performance. Aging capacitors in the PSU are a leading cause of unexplained I/O faults in systems that have been in service for more than five years. Additionally, check the digital input modules (e.g., 6ES7131-6BH01-0AA0 DI 8×24VDC ST) paired with this output module — input filter time settings and wiring integrity directly affect the control logic response time. Finally, review the terminal marking strips and cable labeling on the BaseUnit wiring to ensure field wiring documentation matches the current as-built configuration, reducing the risk of miswiring during future replacements.

Strategic Replacement Solutions

The 6ES7132-6BH00-0AA0 is a direct, pin-compatible replacement for earlier ET 200SP digital output variants used in SIMATIC S7-1500 distributed I/O architectures. Its standardized 15 mm form factor and plug-in BaseUnit design mean that field replacement requires no rewiring — the BaseUnit remains mounted and wired, and the module is simply swapped, dramatically reducing mean time to repair (MTTR) during unplanned outages.

For plants operating legacy S7-300 or S7-400 systems with ET 200M distributed I/O, migration to the ET 200SP platform using the 6ES7132-6BH00-0AA0 as the output module of choice offers a clear path to system modernization without full PLC replacement. The ET 200SP’s compact footprint allows higher channel density in the same cabinet space, and its PROFINET-native communication eliminates the need for PROFIBUS DP adapters in new panel builds.

Stocking one or two units of the 6ES7132-6BH00-0AA0 as a critical spare reduces the risk of extended production downtime caused by supply chain delays. Given the typical lead time for new Siemens modules through standard distribution channels, having an on-shelf spare can mean the difference between a two-hour repair and a two-week shutdown.

Support FAQ

Q1: Is the 6ES7132-6BH00-0AA0 compatible with both S7-1500 and S7-1200 controllers?
Yes. The module operates as an ET 200SP distributed I/O station connected via PROFINET, and is fully compatible with SIMATIC S7-1500 and S7-1200 CPUs, as well as ET 200SP CPUs, provided the correct BaseUnit and GSD/GSDML device description file are used in TIA Portal configuration.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects, functional failure under normal operating conditions, and channel output faults confirmed by bench testing. It does not cover damage caused by incorrect wiring, overvoltage events, or physical impact. All warranty claims are processed with return shipping support and replacement dispatch within 5 business days of fault confirmation.

Q3: How is the module tested before shipment?
Each unit undergoes a pre-shipment inspection covering output channel continuity, BaseUnit connector integrity, housing and label condition, and firmware marker verification. Units that do not pass inspection are not dispatched.

Q4: Can this module replace an older ET 200SP digital output variant with a different firmware revision?
In most cases, yes. The 6ES7132-6BH00-0AA0 is backward compatible within the ET 200SP DQ 8×24VDC family. However, it is recommended to verify the TIA Portal hardware catalog version and update the GSD file if necessary to ensure the CPU recognizes the module without configuration mismatch errors.
