Siemens 6ES7132-6BF01-0AA0 Original Industrial Spare ET 200SP Compatible

Product Overview

Siemens 6ES7132-6BF01-0AA0 Original Industrial Spare ET 200SP Compatible: System Stability & Maintenance Value

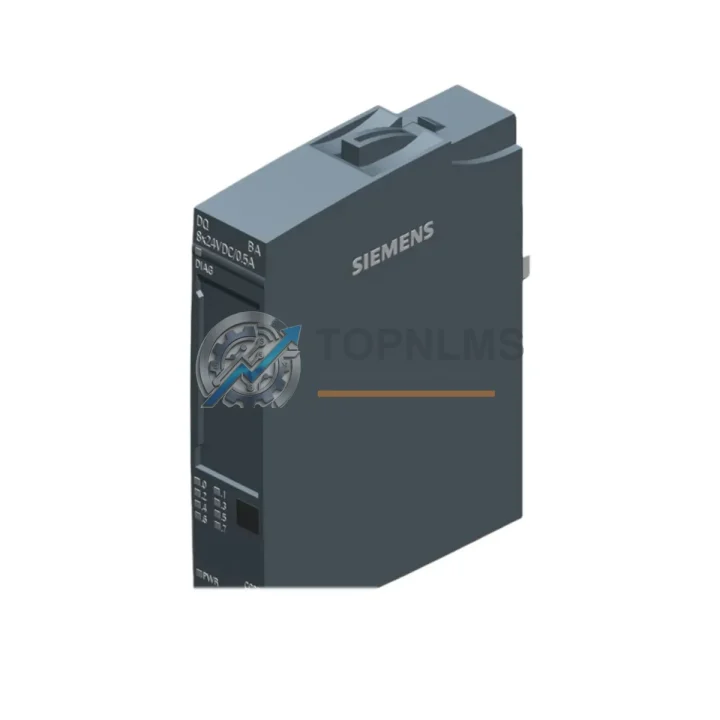

The Siemens 6ES7132-6BF01-0AA0 is a digital output module (DQ 8×24VDC/0.5A) designed for the SIMATIC ET 200SP distributed I/O system. In industrial environments where production continuity is non-negotiable, this module plays a critical role in maintaining reliable signal output to actuators, solenoid valves, motor starters, and control relays across a wide range of manufacturing and process automation applications. Whether you are managing a scheduled maintenance window or responding to an unplanned line stoppage, having a verified original spare on hand is the single most effective way to minimize mean time to repair (MTTR) and protect your operational uptime.

The ET 200SP platform is widely deployed in automotive assembly, food and beverage processing, pharmaceutical manufacturing, water treatment, and discrete parts production. The 6ES7132-6BF01-0AA0 integrates directly into the ET 200SP backplane without additional configuration tools, making it one of the fastest field-replaceable units in the SIMATIC distributed I/O family. Its compact form factor, push-in terminal technology, and hot-swappable design allow maintenance teams to execute module replacement in under five minutes — a decisive advantage during high-pressure shutdown scenarios.

Critical Technical Specs

Preventive Maintenance Strategy

A digital output module failure rarely occurs in isolation. In most ET 200SP control cabinets, the 6ES7132-6BF01-0AA0 operates alongside a full suite of I/O and power components that share the same backplane, power rail, and communication bus. When performing scheduled maintenance or responding to a fault, experienced maintenance engineers treat the affected module as a trigger for a broader cabinet inspection — not just a single-point swap.

Begin any ET 200SP service visit by verifying the 6ES7193-6BP00-0BA0 BaseUnit for signs of terminal wear, discoloration, or loose push-in connections. A degraded BaseUnit can cause intermittent output faults that mimic module failure and are frequently misdiagnosed. Next, inspect the 6EP1333-3BA10 SITOP PSU100S 24VDC power supply feeding the ET 200SP rack — output voltage drift outside the 20.4–28.8 VDC tolerance window will cause false diagnostics on all connected output modules simultaneously.

For systems with mixed I/O, check the adjacent 6ES7131-6BF01-0AA0 digital input module (DI 8×24VDC) and any installed 6ES7134-6GD01-0BA1 analog input modules. These modules share the same backplane power rail and communication path; a failing neighbor can generate bus errors that appear as output module faults in the TIA Portal diagnostic buffer. If the cabinet includes relay-switched outputs for higher-current loads, inspect the 6ES7132-6HD01-0BB1 relay output module for contact wear — relay modules typically reach end-of-life before solid-state output modules in high-cycle applications.

Communication integrity is equally important. Verify the 6GK7543-1AX00-0XE0 PROFINET interface module or the installed 6ES7155-6AU01-0BN0 ET 200SP IM 155-6 PN interface module for firmware currency and cable seating. A loose RJ45 connection or outdated firmware version can cause the entire ET 200SP station to drop off the PROFINET network, making all output modules appear failed when the root cause is upstream. While the cabinet is open, check the 6ES7193-6PA00-0AA0 server module and any installed 6ES7193-6AR00-0AA0 potential distributor modules for proper seating and terminal integrity.

Finally, for systems operating in dusty or high-humidity environments, inspect the 6ES7592-1AM00-0XB0 front connector and terminal blocks for oxidation. Pairing your output module replacement with a full terminal inspection and torque check on all 24VDC field wiring is a best practice that prevents callback visits and extends the service interval of the entire control station.

Strategic Replacement Solutions

The 6ES7132-6BF01-0AA0 is a direct, plug-and-play replacement for aging ET 200SP digital output modules in existing SIMATIC installations. Because the ET 200SP platform uses a BaseUnit-separated terminal concept, replacing this module requires no rewiring of field cables — the BaseUnit remains in place, and the new module clicks in within seconds. This design eliminates the risk of wiring errors during emergency replacements, a common source of secondary faults in traditional terminal-block I/O systems.

For facilities managing legacy S7-300 or S7-400 distributed I/O systems, migrating output functions to the ET 200SP platform with the 6ES7132-6BF01-0AA0 offers a clear path to modernization without requiring a full PLC replacement. The ET 200SP communicates natively over PROFINET and PROFIBUS DP, making it compatible with both current S7-1500 controllers and older S7-300/400 CPU platforms via appropriate interface modules. This backward compatibility protects capital investment in existing control infrastructure while delivering the diagnostic depth and hot-swap capability of the current SIMATIC generation.

Stocking one or two units of the 6ES7132-6BF01-0AA0 as a critical spare reduces your worst-case repair time from days (procurement lead time) to minutes (shelf-to-rack swap). For multi-line facilities with multiple ET 200SP stations, a standardized spare parts kit covering the most common output and input module variants is a proven strategy for achieving sub-one-hour MTTR targets on I/O-related faults.

Support FAQ

Q1: Is the 6ES7132-6BF01-0AA0 compatible with both S7-1200 and S7-1500 controllers?
Yes. The ET 200SP system communicates over PROFINET IO, which is supported by S7-1200 (firmware V4.0+) and all S7-1500 CPUs. Compatibility with S7-300/400 is available via PROFIBUS DP using the appropriate ET 200SP interface module. Always verify the GSD/GSDML file version in your TIA Portal project matches the installed interface module firmware.

Q2: How is the module tested before shipment?
Every unit undergoes functional verification prior to dispatch, including output channel continuity, backplane communication handshake, and visual inspection for physical damage. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can I replace the module without powering down the ET 200SP station?
Yes. The 6ES7132-6BF01-0AA0 supports hot-swapping when the ET 200SP station is configured for this feature in TIA Portal. The BaseUnit remains powered and the field wiring stays connected; only the module itself is removed and replaced. Confirm hot-swap capability is enabled in your hardware configuration before performing live replacement in safety-critical applications.

Q4: What is the recommended spare parts stocking strategy for ET 200SP installations?
For facilities with 5 or more ET 200SP stations, industry best practice recommends maintaining at least one spare unit per module type per 10 installed units, with a minimum of one spare per site regardless of quantity. High-cycle output modules driving solenoids or motor starters should be prioritized for stocking due to their higher wear rate compared to input modules or analog modules.
