Siemens 6ES7132-4BD01-0AA0 Replacement for ET 200S: Smooth Transition & Legacy System Upgrade

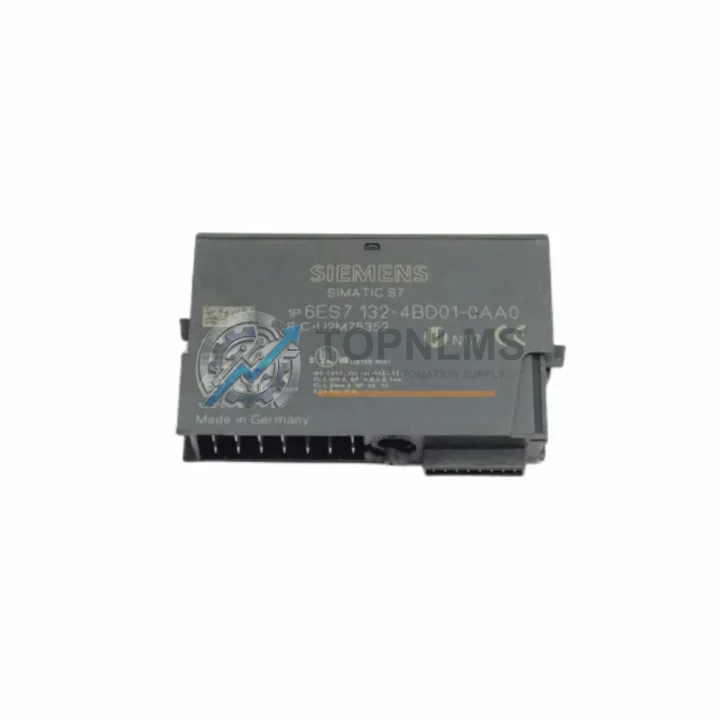

When your SIMATIC ET 200S distributed I/O station faces end-of-life pressure or an unplanned failure of the 6ES7132-4BD01-0AA0 4-channel 24 VDC digital output module, production continuity depends on sourcing a verified replacement that slots in without rewiring, reprogramming, or mechanical rework. The 6ES7132-4BD01-0AA0 is a standard 4DO × 24 VDC / 0.5 A module designed for the ET 200S modular terminal block architecture. It occupies a single slot on the ET 200S power module rail and communicates through the backplane bus managed by the IM 151 interface module. Because the ET 200S platform has been progressively superseded by the ET 200SP and ET 200MP families, many facilities are now managing a mixed installed base — some stations still running ET 200S hardware alongside newer SIMATIC S7-1500 or S7-300 controllers. This guide addresses both scenarios: direct like-for-like replacement of the 6ES7132-4BD01-0AA0 within an existing ET 200S station, and a structured migration path toward the ET 200SP or ET 200MP platform.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ET 200S modernization project rarely involves a single module. In practice, field engineers replacing the 6ES7132-4BD01-0AA0 typically encounter a broader set of components that require attention during the same maintenance window.

The most common starting point is the interface module. If the station is running an IM 151-1 Standard for PROFIBUS DP communication, the interface module itself may be approaching end-of-life alongside the output module. Upgrading to an IM 151-3 PN for PROFINET IO allows the entire ET 200S station to be integrated into a modern PROFINET topology without replacing every I/O module at once — a cost-effective intermediate step. For facilities already committed to a full platform migration, the IM 155-6 PN ST interface module for ET 200SP provides a natural landing point, supporting PROFINET with media redundancy and a significantly reduced footprint.

On the input side, the 6ES7131-4BD01-0AA0 4-channel 24 VDC digital input module is the logical companion to the 6ES7132-4BD01-0AA0 in most ET 200S stations. Both modules share the same terminal block system and backplane bus, so a station refresh that addresses the output module should also audit the input modules for wear or obsolescence. Similarly, analog I/O modules such as the 6ES7134-4FB01-0AB0 (4AI) and 6ES7135-4FB01-0AB0 (2AO) are frequently found in the same ET 200S rack and benefit from simultaneous replacement to avoid a second maintenance outage.

Power distribution within the ET 200S station is managed by the PM-E 24 VDC power module (6ES7138-4CA01-0AA0). If the station has been in service for more than five years, replacing the PM-E alongside the output module eliminates a common failure point and ensures the load voltage rail is stable for the newly installed module. For stations with mixed AC/DC loads, the PM-E 24..48 VDC / 24..230 VAC variant should be evaluated.

Wiring continuity is another practical concern. The ET 200S uses dedicated terminal modules — TM-E15S26-A1 or TM-E15C26-A1 depending on screw or push-in preference — that remain in place when the electronic module is swapped. This hot-swap-friendly architecture means the 6ES7132-4BD01-0AA0 can be replaced without disconnecting field wiring, provided the terminal module is undamaged. Inspecting and, if necessary, replacing the terminal module during the same service visit is strongly recommended.

For facilities migrating to the ET 200SP platform, the BaseUnit BU15-P16+A0+2D serves as the wiring carrier for the new 4DO module, and the 6ES7132-6BF00-0CA0 electronic module slots directly into it. The ET 200SP’s push-in terminal technology and color-coded BaseUnits simplify re-termination and reduce the risk of wiring errors during commissioning. A SIMATIC S7-1500 CPU, such as the CPU 1515-2 PN, paired with an ET 200SP station provides a future-proof architecture that supports TIA Portal V17/V18 engineering, OPC UA communication, and integrated motion control — capabilities that the original ET 200S / S7-300 combination cannot match.

Finally, for sites where the programming interface is still required for legacy S7-300 or S7-400 systems, a PC adapter USB A2 or MPI/PROFIBUS programming cable ensures that the existing Step 7 or TIA Portal project can be uploaded, modified, and downloaded to the controller without additional hardware investment during the transition period.

Retrofit Guidance FAQ

Q: Can I replace the 6ES7132-4BD01-0AA0 without modifying the PLC program?
A: Yes. A like-for-like replacement of the same order number requires no hardware configuration changes in Step 7 or TIA Portal. The module is recognized automatically by the IM 151 interface module upon power-up.

Q: Is the wiring compatible with the replacement module?
A: The ET 200S terminal module (TM-E) remains in place during module swap. Field wiring connected to the terminal module does not need to be disconnected, making the replacement a tool-free, wiring-safe operation in most installations.

Q: What communication protocols are supported?
A: The 6ES7132-4BD01-0AA0 itself is protocol-agnostic — it communicates via the ET 200S internal backplane bus. The station’s communication protocol (PROFIBUS DP or PROFINET IO) is determined entirely by the IM 151 interface module. No changes to the output module are required when switching the interface module from PROFIBUS to PROFINET.

Q: Will the replacement module fit in the existing cabinet space?
A: Yes. The 6ES7132-4BD01-0AA0 has a fixed form factor within the ET 200S system. A direct replacement occupies identical physical space. If migrating to ET 200SP, the BaseUnit + electronic module combination is typically narrower per channel, potentially freeing cabinet space.

Q: How do I handle the transition from Step 7 to TIA Portal during migration?
A: Siemens provides a migration tool within TIA Portal that can import Step 7 V5.x projects. For ET 200S to ET 200SP migration, the hardware configuration must be updated to reflect the new module order numbers and BaseUnit assignments, but the logic blocks (OBs, FBs, FCs, DBs) can be reused with minimal modification.

Q: What is the lead time for the 6ES7132-4BD01-0AA0?
A: In-stock units ship within 1–3 business days from Xiamen. Express international shipping is available to minimize plant downtime. Contact us for urgent requirements.
