Siemens 6ES5430-4UA12 Replacement/Upgrade for SIMATIC S5

Product Overview

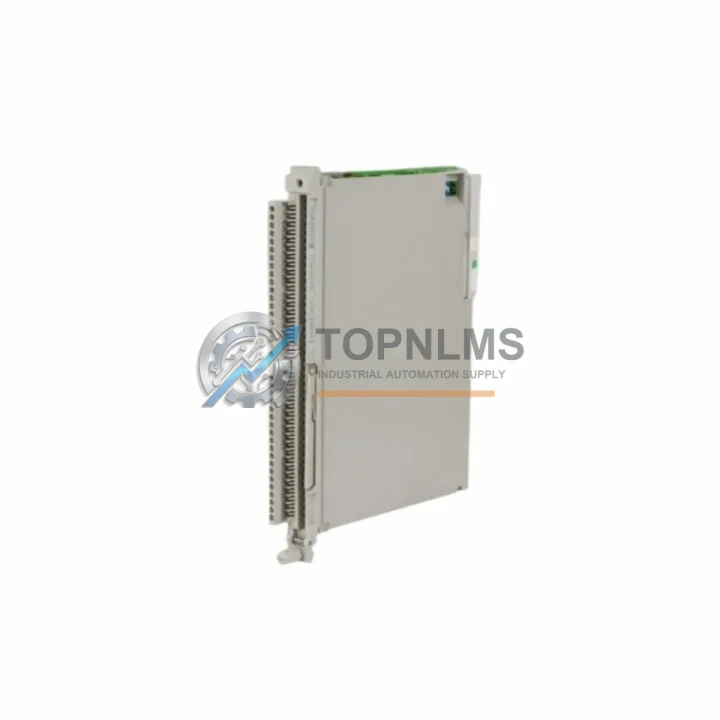

Siemens 6ES5430-4UA12 Replacement/Upgrade Solution for SIMATIC S5: Smooth Transition to Modern Control

The Siemens 6ES5430-4UA12 is a 32-channel digital input module designed for the SIMATIC S5 programmable logic controller platform — one of the most widely deployed industrial automation systems in process manufacturing, automotive assembly, utilities, and discrete production environments worldwide. As Siemens has officially discontinued the SIMATIC S5 product line, facilities still operating legacy S5 racks face increasing pressure to source reliable replacement modules, manage aging spare-parts inventories, and plan structured migration paths to current-generation platforms such as the SIMATIC S7-300 or SIMATIC S7-400.

At TOPNLMS, we maintain verified stock of the 6ES5430-4UA12 to support both immediate drop-in replacement needs and phased system modernization projects. Every unit is inspected, function-tested, and shipped with a 12-month warranty, giving procurement engineers and plant maintenance teams the confidence to order without on-site risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating a SIMATIC S5 installation to a modern control architecture is rarely a single-module swap. In practice, a successful retrofit of a system built around the 6ES5430-4UA12 digital input module involves coordinating several interdependent components across the control cabinet and field wiring infrastructure.

For facilities performing a like-for-like replacement within an existing S5 rack, the process is straightforward: the 6ES5430-4UA12 slots directly into the same subrack position, uses the same 48-pin front connector, and requires no changes to the STEP 5 program logic or I/O address assignments. This makes it the preferred solution for minimizing planned downtime during a scheduled maintenance window. Plants running S5-115U or S5-135U CPUs — such as the 6ES5944-0UA11 or 6ES5948-0UA11 — can continue operating without any software modification.

For facilities planning a phased migration to SIMATIC S7, the 6ES5430-4UA12 serves as a bridge module, keeping the S5 rack operational while new S7 hardware is commissioned in parallel. In this scenario, engineers typically introduce a SIMATIC S7-300 CPU (such as the CPU 315-2 DP) alongside an IM 360 / IM 361 interface module pair to expand the S7 rack, while the legacy S5 rack continues to handle existing I/O through the 6ES5430-4UA12 until field wiring is progressively migrated to SM 321 digital input modules (6ES7321-1BH02-0AA0 or equivalent).

Communication protocol compatibility is a critical consideration. The S5 platform uses a parallel backplane bus architecture, while modern S7 and S7-1500 systems rely on PROFIBUS DP or PROFINET IO. If your migration plan includes connecting legacy S5 field devices to a new S7 CPU, a CP 5431 FMS/DP communication processor or a DP/AS-Interface Link 20E gateway can bridge the protocol gap without requiring immediate field rewiring. For installations where PROFIBUS DP is already in use, the existing network infrastructure and DP slaves can often be retained and re-addressed under the new CPU.

Power supply compatibility should also be verified during any S5 retrofit. The 6ES5430-4UA12 draws its logic supply from the S5 subrack backplane, which is typically fed by a PS 951 or PS 955 power supply module. If the power supply is aging or undersized for an expanded I/O configuration, replacing it with a current-production SITOP PSU100S 24V DC stabilized power supply ensures reliable operation and simplifies spare-parts management going forward.

For field-side wiring, the 48-pin front connector on the 6ES5430-4UA12 accepts standard 0.5–1.5 mm² conductors. In cabinets where terminal density is a concern, pairing the module with Siemens SIRIUS 8WA terminal blocks or equivalent DIN-rail terminal assemblies allows clean, labeled wiring runs that simplify future troubleshooting. Signal isolation between field devices and the PLC input circuit is handled internally by the module’s optocoupler isolation stage, but for long cable runs or noisy industrial environments, external signal isolators or surge protection modules (such as those from the SIPROTEC accessory range) are recommended upstream of the input terminals.

Programming and commissioning support for the 6ES5430-4UA12 is handled through STEP 5 software (v7.2 or later), which remains available for legacy system maintenance. For engineers transitioning to S7, the STEP 7 Migration Tool can convert existing STEP 5 programs to STL or LAD format compatible with SIMATIC Manager or TIA Portal, preserving I/O address mappings and reducing re-engineering time. HMI panels connected to the S5 system via MPI or PROFIBUS — such as the SIMATIC OP7, OP17, or TP 170B — can typically be retained during the transition period and reconfigured for S7 communication using WinCC flexible or TIA Portal HMI configuration tools.

Retrofit Guidance FAQ

Q: Can I install the 6ES5430-4UA12 without rewiring the field terminals?
Yes. The 6ES5430-4UA12 uses the same 48-pin front connector and I/O address structure as its predecessor modules. Provided the subrack slot address is unchanged, no field wiring modifications are required. Simply remove the old module, insert the replacement, and restore power.

Q: Is the STEP 5 program compatible without modification?
Yes, for direct replacement within the same S5 rack. The module occupies the same I/O address space and the CPU reads it identically. No program changes are needed for a like-for-like swap.

Q: What communication protocols does this module support?
The 6ES5430-4UA12 communicates via the native SIMATIC S5 parallel backplane bus. It does not natively support PROFIBUS DP or PROFINET. For protocol bridging during S7 migration, a CP 5431 FMS/DP or equivalent gateway module is required.

Q: Will this module fit in my existing S5 subrack?
Yes, provided your subrack is an EU 183, EU 185, EU 187, or EU 188 model. The module occupies one standard S5 slot. Verify available slot count and power budget before installation if the rack is near capacity.

Q: How do I handle the migration from S5 to S7 without a full shutdown?
The recommended approach is a phased migration: keep the S5 rack operational with the 6ES5430-4UA12 handling existing I/O while commissioning the new S7 hardware in parallel. Use IM 360/361 interface modules to expand the S7 rack, and progressively migrate field wiring to SM 321 input modules over scheduled maintenance windows. This approach minimizes production downtime and allows thorough testing at each stage.

Q: What physical space does the module require in the control cabinet?
The 6ES5430-4UA12 is a standard single-width S5 module. No additional DIN rail space is required beyond the existing subrack footprint. If the control cabinet is being redesigned as part of a broader modernization project, the S7-300 rack system offers a more compact form factor that may allow cabinet consolidation.

Warranty Assurance

Every 6ES5430-4UA12 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes functional verification of all 32 input channels, backplane connector integrity check, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are not shipped.

In the event of a Dead on Arrival (DOA) or in-warranty failure, TOPNLMS provides a direct replacement unit at no additional cost. Our after-sales response target is within 24 business hours of a warranty claim submission. Replacement units are shipped from our Xiamen warehouse, with express logistics options available for urgent production-critical situations.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export compliance documentation for cross-border shipments is available upon request. We support payment via T/T bank transfer and major trade finance instruments standard in B2B industrial procurement.

TOPNLMS maintains ongoing stock of SIMATIC S5 series modules to support long-term maintenance contracts and blanket purchase orders. If your facility requires a multi-unit procurement or a standing supply agreement for S5 spare parts, contact our sales team to discuss volume pricing and reserved inventory arrangements.
