Siemens 6DR2410-4 Replacement for SIPART DR Series: Smooth Transition, Zero Compromise

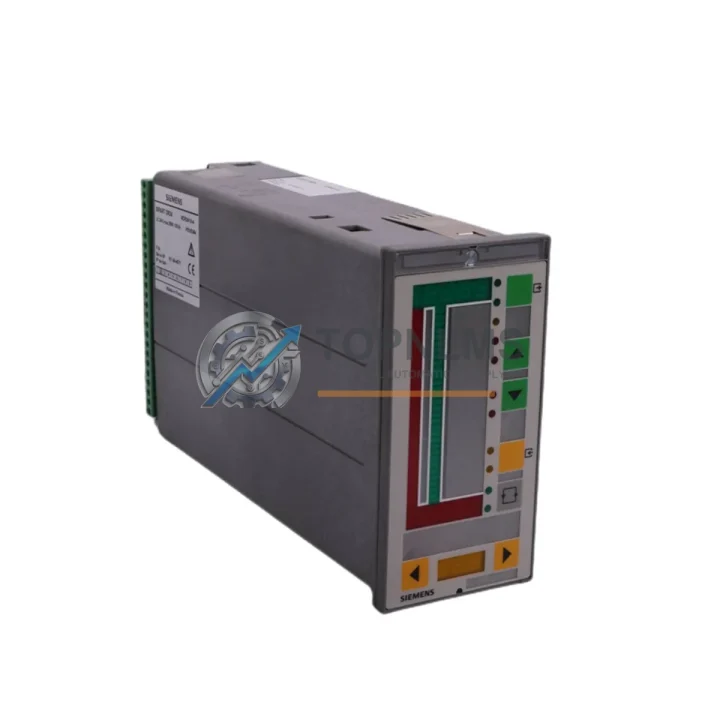

The Siemens 6DR2410-4 is a single-loop PID process controller from the SIPART DR24 series, designed for precise closed-loop control of temperature, pressure, flow, and level in continuous industrial processes. As the SIPART DR24 platform approaches end-of-life and spare parts become increasingly scarce, facilities running legacy process control loops face a critical decision: source a verified original replacement or risk extended downtime waiting for an obsolete unit. TOPNLMS stocks the 6DR2410-4 as a tested, ready-to-ship replacement to bridge that gap — ensuring your process lines stay operational while you plan a longer-term migration strategy.

Whether your plant operates a single control loop or a distributed array of PID stations, the 6DR2410-4 delivers the same 24VDC supply compatibility, analog input/output signal handling, and front-panel operator interface that your technicians already know. Replacing a failed unit requires no re-engineering of the control cabinet wiring, no reprogramming of upstream SCADA setpoints, and no modification to existing signal conditioners or transmitters feeding the loop. The physical form factor matches the original DIN-rail or panel-mount cutout, so installation is a direct swap with minimal downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging SIPART DR24 installation to a refreshed control architecture involves more than swapping the controller itself. When your maintenance team opens the control cabinet to replace the 6DR2410-4, it is the ideal moment to audit the surrounding components and address any latent reliability risks before they cause the next unplanned shutdown.

Start with the signal chain feeding the controller. If your 4–20 mA transmitters — whether pressure, temperature, or flow — are more than ten years old, consider replacing them alongside the controller. Aging transmitters with drifting zero points will undermine even a perfectly calibrated PID loop. Signal isolators and barriers between the field transmitters and the controller input terminals should also be inspected; a faulty Siemens 6DR4004-6A signal conditioner or equivalent isolator module can introduce ground loops that mimic controller faults.

On the output side, the 6DR2410-4 drives final control elements — typically pneumatic or electric actuators — through its 4–20 mA output. If the positioner connected to your control valve is a legacy Siemens SIPART PS2 (6DR5…) series, verify that the input impedance and signal range remain compatible. Many sites take the opportunity to upgrade the positioner at the same time, eliminating a second potential failure point in the loop.

Power supply integrity is equally critical. The 6DR2410-4 operates on 24 VDC, sourced from a panel-mounted SITOP power supply or equivalent. A Siemens SITOP PSU100S 24V/5A (6EP1334-2BA20) or similar unit should be load-tested during the replacement window. A marginal power supply that holds voltage under light load may sag under the combined draw of the controller, transmitters, and solenoid outputs, causing intermittent resets that are difficult to diagnose after the fact.

Communication infrastructure also deserves attention during a SIPART DR24 replacement. If the controller is networked via RS-485 to a SIMATIC S7-300 or S7-400 PLC acting as a supervisory controller, verify that the CP 341 or CP 343 communication processor firmware is current and that the Modbus RTU or PROFIBUS DP configuration matches the replacement unit’s address settings. Updating the communication module at the same time as the controller prevents address conflicts and ensures the SCADA historian receives clean data from day one.

For sites planning a longer-term migration toward a fully integrated DCS architecture, the 6DR2410-4 can serve as a stable interim solution while the engineering team evaluates SIMATIC PCS 7 migration paths or SINAMICS drive integration. During this transition period, maintaining a small buffer stock of 6DR2410-4 units — alongside compatible I/O terminal blocks such as the Siemens 6ES7392 series and DIN-rail mounted relay output modules — provides the operational flexibility to respond to any loop failure within hours rather than days.

Finally, do not overlook the front-panel operator interface. The 6DR2410-4 features a local display and keypad for setpoint adjustment and manual/auto switching. If operators have been working around a failed display on the legacy unit, the replacement is an opportunity to retrain staff on the correct use of the local interface, reducing the risk of operator-induced process upsets during the commissioning period.

Retrofit Guidance FAQ

Q1: Can the 6DR2410-4 directly replace older SIPART DR21 or DR22 controllers without rewiring?
In most cases, the analog signal wiring (4–20 mA input/output) is directly compatible. However, the terminal block layout on DR21/DR22 units differs from the DR24 series, so a wiring adapter plate or terminal re-labeling is recommended. The PID parameter set (P, I, D, setpoint range) must be re-entered manually on the new unit, as there is no automatic parameter transfer between generations.

Q2: Is the RS-485 communication protocol on the 6DR2410-4 compatible with my existing SIMATIC S7 PLC?
Yes. The 6DR2410-4 supports Modbus RTU over RS-485, which is natively supported by Siemens CP 341 and CP 343 communication modules. Ensure the baud rate, parity, and device address in the replacement unit match the configuration stored in your PLC function block. No hardware changes to the communication cable are required.

Q3: What physical space does the 6DR2410-4 require, and will it fit my existing panel cutout?
The 6DR2410-4 uses a standard 96×96 mm panel cutout per DIN 43700. If your existing installation uses this cutout size, the replacement is a direct physical fit. Mounting depth behind the panel is approximately 150 mm — verify clearance for rear terminal connections before installation.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every 6DR2410-4 unit shipped by TOPNLMS undergoes functional testing including power-on verification, analog input/output signal calibration check, display and keypad operation, and communication port continuity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair support is provided with a typical response time of 1–3 business days. Contact [email protected] for warranty claims or pre-purchase technical consultation.

Warranty Assurance

TOPNLMS provides a 12-month warranty on every Siemens 6DR2410-4 unit. Before shipment, each controller is powered on and subjected to a functional verification routine covering analog I/O signal integrity, display operation, keypad response, and communication port continuity. Units that do not pass all checks are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS offers replacement dispatch within 1–3 business days of fault confirmation. Our after-sales team is reachable via email and phone to support troubleshooting, compatibility verification, and return logistics. We understand that a failed process controller in a production environment is not a routine inconvenience — it is a production stoppage — and our response protocols are designed accordingly.

For bulk procurement, long-term supply agreements, or multi-unit orders requiring batch testing documentation, please contact our sales team directly. We maintain buffer stock of high-demand SIPART DR24 series components to support emergency procurement requirements with same-week dispatch capability.
