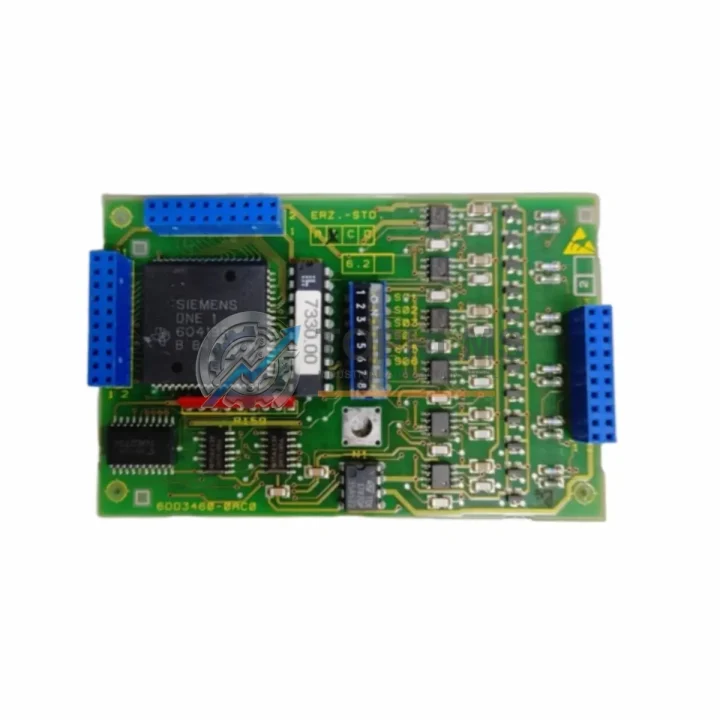

SIEMENS 6DD3460-0AC0 Ruggedized Pulse Sensor Board

Product Overview

SIEMENS 6DD3460-0AC0 Ruggedized Pulse Sensor Board for Harsh Industrial Environments

The SIEMENS 6DD3460-0AC0 is a precision-engineered Pulse Sensor Board designed for the SIMADYN D digital control system platform — one of Siemens’ most robust and field-proven closed-loop control architectures deployed across heavy industry worldwide. Built to withstand the relentless demands of continuous production environments, this module delivers stable, interference-resistant pulse signal acquisition in conditions where lesser components fail: extreme temperature swings, high ambient humidity, pervasive industrial dust, mechanical vibration, and intense electromagnetic interference (EMI) generated by high-power drives and switching equipment.

In applications where signal integrity is non-negotiable — such as speed feedback loops on large AC/DC drives, shaft encoder monitoring on rolling mills, or turbine control in power generation — the 6DD3460-0AC0 provides the deterministic, low-latency pulse counting that SIMADYN D’s real-time control algorithms depend upon. Its hardened PCB design and conformal coating make it a trusted choice for engineers specifying spare parts for oil & gas platforms, mining hoists, steel plant drives, and water treatment pump stations.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6DD3460-0AC0 does not operate in isolation — it is a critical node within a broader SIMADYN D control architecture. In a typical heavy-industry control cabinet, this Pulse Sensor Board works in concert with the SIEMENS 6DD1600-0AK0 PM5 Processor Module, which handles the real-time closed-loop computation, and the 6DD1607-0AA0 AM1 Analog Input/Output Module, which conditions process signals from field transmitters. Reliable pulse data from the 6DD3460-0AC0 feeds directly into speed and position control loops managed by these processor cards.

On the power side, the SIMADYN D rack is typically energized by a SIEMENS 6DD1682-0BC0 Power Supply Module, which provides the regulated 5 V and 24 V DC rails that all signal boards — including this pulse sensor board — depend upon for stable operation. Any instability in the power supply directly compromises pulse counting accuracy, making a quality PSU an essential companion component.

For drive-side integration, the 6DD3460-0AC0 is commonly paired with SIEMENS SIMOREG DC-MASTER 6RA70 series DC converters and MASTERDRIVES MC 6SE70 series AC inverters, where it captures encoder feedback from motors driving rolling mills, extruders, hoists, and compressors. Communication between the SIMADYN D system and plant-level SCADA or DCS is typically handled via SIEMENS 6DD1684-0GD0 PROFIBUS DP Communication Modules, ensuring that pulse data and drive status are visible at the control room level.

In safety-critical installations, the pulse sensor board operates alongside SIEMENS 3TK28 series Safety Relay Modules and SIRIUS 3SK1 Safety Controllers, which monitor emergency stop circuits and overspeed conditions. Terminal connectivity within the cabinet is typically managed through SIEMENS SIRIUS 8WA series terminal blocks and 6ES7 392 series front connectors, ensuring clean, vibration-resistant wiring that preserves signal integrity from encoder to processor.

Application in Critical Infrastructure

In steel and metals processing, the 6DD3460-0AC0 is a cornerstone of rolling mill drive control, where precise speed synchronization between multiple motor drives — each monitored by a dedicated pulse sensor board — determines product dimensional accuracy and surface quality. A single degraded pulse board can introduce speed drift that causes strip breaks or gauge deviations, making reliable spare stock essential for continuous casters and hot strip mills.

In oil and gas upstream and midstream facilities, SIMADYN D systems control compressor trains, pipeline pumps, and wellhead drives in environments characterized by hydrocarbon vapors, salt-laden air, and wide ambient temperature ranges. The 6DD3460-0AC0’s robust signal conditioning ensures that encoder feedback from large induction motors driving gas compressors remains accurate even under these chemically aggressive conditions.

In mining and mineral processing, hoist drives, conveyor systems, and ball mill drives rely on SIMADYN D for closed-loop torque and speed control. The vibration and shock loads inherent to these applications — combined with coal dust or mineral particulate contamination — demand components with proven mechanical and electrical robustness. The 6DD3460-0AC0’s conformal-coated PCB resists contamination ingress that would degrade unprotected boards.

In power generation and utilities, turbine governor systems and boiler feed pump drives use SIMADYN D for high-precision speed control. Here, the pulse sensor board’s EMI immunity is paramount: large generators and transformers create intense magnetic fields that can corrupt pulse signals on lesser-specified boards, leading to governor instability. In water and wastewater treatment, pump station drives controlled by SIMADYN D benefit from the 6DD3460-0AC0’s long service life and availability as a stocked spare, minimizing the risk of extended downtime in facilities that operate 24/7 with no scheduled production breaks.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 6DD3460-0AC0 unit shipped by TOPNLMS carries a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Prior to dispatch, each board undergoes functional verification testing. If a unit fails within the warranty period, TOPNLMS provides a replacement or full refund — contact [email protected] with your order reference to initiate a claim.

Q2: How do you verify compatibility with my existing SIMADYN D rack before I order?
The 6DD3460-0AC0 is a direct OEM-specification Pulse Sensor Board for the SIEMENS SIMADYN D platform. It is compatible with standard SIMADYN D subrack configurations used with SIMOREG and MASTERDRIVES drive families. If you have a specific rack revision or firmware version concern, share your system configuration with our technical team at [email protected] and we will confirm compatibility before you commit to purchase.

Q3: Is long-term supply availability guaranteed for this discontinued or legacy module?
SIMADYN D is a mature platform, and OEM production of certain modules has been phased down. TOPNLMS maintains dedicated inventory of high-demand SIMADYN D boards — including the 6DD3460-0AC0 — specifically to support customers running legacy systems who cannot afford the cost and disruption of a full control system upgrade. We actively source and quality-check stock to ensure continued availability for planned maintenance and emergency breakdown scenarios.

Q4: What safety precautions should be observed when replacing this board in the field?
Always de-energize the SIMADYN D rack and associated drive system before removing or inserting any board. Follow SIEMENS SIMADYN D system documentation for rack isolation procedures. Observe ESD (electrostatic discharge) precautions — handle the board only with a grounded wrist strap and on an ESD-safe surface. Verify that the replacement board’s hardware revision is compatible with your rack’s backplane before powering up. TOPNLMS technical support is available to guide your maintenance team through the replacement process.
