Siemens 6DM1001-2WA23-0 Replacement for SIMOREG DC Master

Product Overview

Siemens 6DM1001-2WA23-0 Replacement for SIMOREG DC Master: Smooth Transition & Legacy System Compatibility

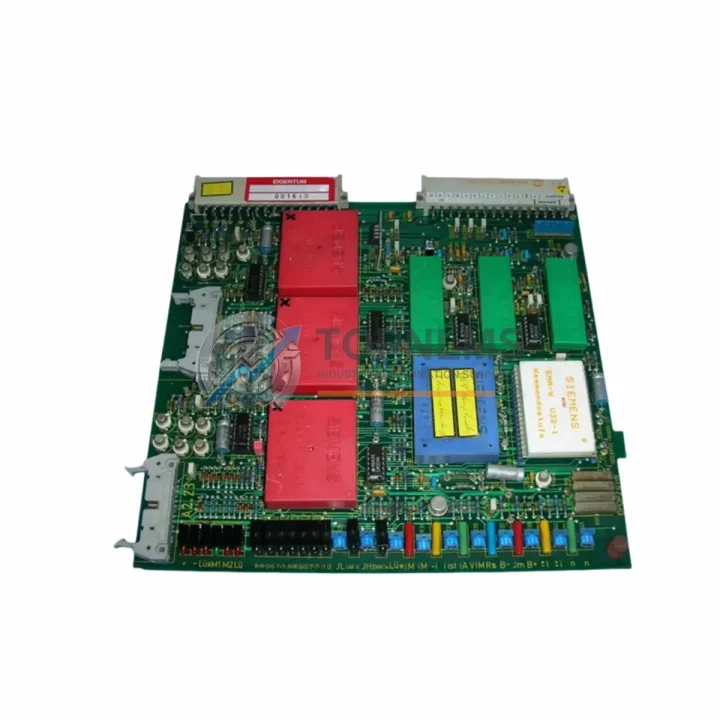

The Siemens 6DM1001-2WA23-0 is a DC drive controller module from the SIMOREG DC Master series — a platform widely deployed across steel mills, paper machines, extruders, winding systems, and heavy industrial drives worldwide. As this series approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement units that preserve existing wiring infrastructure, motor field circuits, and PROFIBUS DP communication topology without triggering a full drive cabinet redesign.

TOPNLMS supplies the 6DM1001-2WA23-0 as a direct replacement module, fully tested prior to shipment and backed by a 12-month warranty. Each unit is inspected against original Siemens specifications for armature current rating, field current output, firing angle control, and digital I/O interface compatibility. Whether you are replacing a failed board in an emergency shutdown scenario or building a strategic spare inventory ahead of a planned maintenance window, this module ships from Xiamen with full documentation support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMOREG DC Master replacement rarely involves a single module in isolation. In practice, the 6DM1001-2WA23-0 controller board operates within a broader drive cabinet ecosystem. During retrofit and modernization projects, engineers commonly address adjacent components in the same service window to reduce future downtime risk.

On the communication side, the SIMOREG DC Master relies on a PROFIBUS DP interface module — typically a CBP2 communication board — to exchange speed references, torque setpoints, and status words with the upstream PLC or DCS. If the host controller is a Siemens S7-300 or S7-400 series PLC, the PROFIBUS DP network configuration remains unchanged after the controller board swap, provided the drive node address and baud rate parameters are restored correctly. For sites migrating from S7-300 to S7-1500, the PROFIBUS segment can be retained via a PN/DP coupler while the new controller is commissioned in parallel.

On the power supply side, the SIMOREG DC Master cabinet typically includes a 24 VDC SITOP power supply module that feeds the electronics board and I/O circuits. It is good practice to inspect and replace aging SITOP units during the same intervention, as power supply degradation is a common secondary cause of controller board failures in high-cycle industrial environments.

For field wiring, the 6DM1001-2WA23-0 connects to motor armature and field terminals through the drive’s internal terminal strip. No rewiring is required for a direct replacement. However, if the project scope includes upgrading the motor feedback path, a pulse encoder interface module (such as the SBP or SMC30 encoder evaluation board used in SINAMICS platforms) may be introduced as part of a phased modernization plan.

Sites running legacy SIMOREG K or SIMOREG D series drives alongside the DC Master platform should note that the 6DM1001-2WA23-0 is not cross-compatible with those older backplane architectures. In mixed-fleet environments, it is common to maintain separate spare pools for each drive generation. TOPNLMS can supply modules across multiple SIMOREG generations to support consolidated procurement.

For HMI integration, many SIMOREG DC Master installations use a Siemens OP7 or OP17 operator panel connected via the drive’s RS-485 USS protocol port. These panels continue to function normally after the controller board replacement, provided the USS baud rate and drive address parameters are re-entered during commissioning. Sites upgrading to a modern HMI platform such as the SIMATIC HMI KTP700 Basic can retain the existing PROFIBUS DP connection without additional hardware.

Signal isolation is another consideration in older DC drive installations. Where analog speed references or tachometer feedback signals pass through the cabinet, signal isolator modules (4–20 mA or ±10 V types) protect the new controller board from ground loop interference — a common issue in retrofit projects where the original cable shielding has degraded over decades of service.

Retrofit Guidance FAQ

Q: Can I reuse the existing armature and field wiring?
Yes. The 6DM1001-2WA23-0 replacement uses the same terminal layout as the original module. No rewiring of power cables is required. Verify terminal torque values per the SIMOREG DC Master hardware manual before energizing.

Q: Do I need to reload drive parameters after replacement?
Yes. Drive parameters are stored on the controller board, not in a separate memory card on this module generation. Before removing the failed board, use DriveMonitor or STARTER software to export the full parameter set (P0–P999 range). Re-upload after the replacement board is installed and the drive has completed its initialization sequence.

Q: Is PROFIBUS DP communication restored automatically?
PROFIBUS DP communication resumes once the node address (P918) and baud rate are correctly set on the replacement board. The upstream PLC or DCS does not require reconfiguration, as the GSD file and hardware configuration remain valid.

Q: Will the replacement board fit the existing SIMOREG DC Master cabinet?
Yes. The 6DM1001-2WA23-0 is a direct mechanical replacement. No cabinet modifications, additional mounting hardware, or backplane adapters are required.

Q: What if my site runs a mixed SIMOREG and SINAMICS environment?
The 6DM1001-2WA23-0 is specific to the SIMOREG DC Master platform and is not interchangeable with SINAMICS S120 or G120 drive components. For sites running both platforms, maintain separate spare inventories. TOPNLMS can assist with sourcing across both product families.

Q: How long does commissioning typically take after board replacement?
For experienced drive engineers with a saved parameter backup, commissioning typically takes 2–4 hours including parameter restore, no-load test, and loaded trial run. Allow additional time if the parameter backup is unavailable and parameters must be re-entered manually from the original commissioning record.

Warranty Assurance

Every 6DM1001-2WA23-0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, I/O channel check, and communication interface validation. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault assessment. Our after-sales response target is 24 hours for initial fault acknowledgment and 5 business days for replacement dispatch. Warranty coverage applies to manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

For procurement teams managing critical spare inventories, TOPNLMS offers batch quotation, multi-unit stocking agreements, and export documentation including commercial invoice, packing list, and certificate of origin. All shipments from Xiamen are traceable with full logistics documentation to support customs clearance in target markets.

Contact our technical sales team to confirm stock availability, request a datasheet, or discuss volume pricing for your maintenance program.
