Siemens 6DM1001-2LA02-2 Replacement for SIMOREG DC Master

Product Overview

Siemens 6DM1001-2LA02-2 Replacement for SIMOREG DC Master: Smooth Transition & Legacy System Compatibility

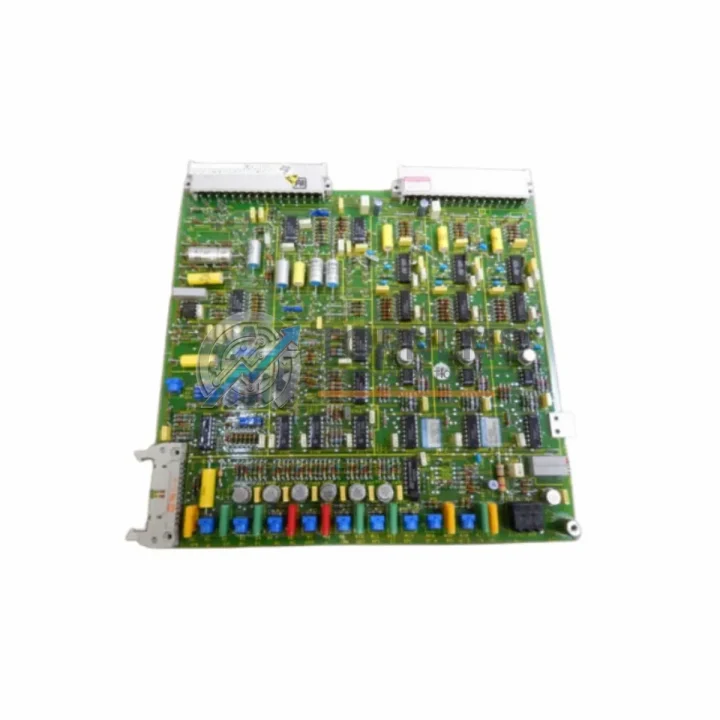

The Siemens 6DM1001-2LA02-2 is the core control card of the SIMOREG DC Master series — a proven DC drive platform widely deployed across steel mills, paper machines, extruders, winding systems, and heavy-duty industrial drives. As this model reaches end-of-production lifecycle, facilities running legacy SIMOREG DC Master cabinets face increasing pressure to source reliable replacement units that maintain full backward compatibility with existing wiring, field bus configurations, and drive parameterization.

TOPNLMS supplies the 6DM1001-2LA02-2 as a direct drop-in replacement or upgrade solution for SIMOREG DC Master systems. Each unit is sourced from verified supply channels, pre-shipment tested, and backed by a 12-month warranty — giving procurement engineers and maintenance teams the confidence to plan scheduled replacements or respond to unplanned failures without extended downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMOREG DC Master modernization rarely involves a single component. When replacing the 6DM1001-2LA02-2 control card, maintenance teams typically audit the surrounding drive architecture to ensure system-wide reliability. In many retrofit projects, the 6RA7085 or 6RA7090 power converter unit is evaluated alongside the control card replacement — particularly where the thyristor bridge or field supply section shows signs of aging. The 6SY7010-0AA51 thyristor module is a common companion replacement in high-cycle DC drive applications.

For facilities migrating from older SIMOREG 6RA24 or 6RA28 platforms to the DC Master architecture, the 6RX1700-0AD76 technology board and associated 6SY7000-0AC82 interface modules are frequently required to bridge legacy analog I/O with the newer digital control structure. Communication continuity is maintained through the 6DP1616-8BA PROFIBUS-DP option board, which slots directly into the DC Master control card bay and preserves existing PLC-to-drive PROFIBUS addressing without requiring changes to the Siemens S7-300 or S7-400 PLC program.

On the field side, terminal fan-out modules such as the 6SL3260-0AA00-0VA0 adapter or equivalent DIN-rail terminal blocks are used to maintain clean wiring separation between the armature circuit, field circuit, and digital I/O — especially important when the replacement is performed inside an existing MCC or drive cabinet where space is constrained. Where analog speed references are involved, signal isolators rated for ±10 V or 4–20 mA are recommended to eliminate ground loop interference introduced during the card swap.

For sites running SIMOREG DC Master drives in tandem with Siemens SIMATIC HMI panels such as the TP177B or MP277, the operator panel connection is typically maintained via MPI or PROFIBUS — no HMI reconfiguration is needed when the replacement card is correctly parameterized with the original drive dataset. Backup and restore of the full parameter set using DriveMonitor software (version 5.3 or later) is strongly recommended before and after the card swap.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the 6DM1001-2LA02-2?
A: Yes. The replacement card uses the same terminal layout and connector positions as the original. No rewiring of armature, field, or I/O circuits is required.

Q: Will my PROFIBUS-DP network address and PLC program remain valid?
A: Yes, provided the replacement card is loaded with the original parameter set (P918 = PROFIBUS node address). The PLC program requires no modification.

Q: How do I transfer parameters from the failed card to the replacement?
A: If the original card is still partially functional, use DriveMonitor to export the parameter file (.par). If the card has failed completely, restore from a previously saved backup. TOPNLMS recommends maintaining a parameter archive for all critical drives.

Q: Does the replacement card fit in the same physical slot?
A: Yes. The 6DM1001-2LA02-2 is a direct form-fit replacement for the SIMOREG DC Master control card bay. No mechanical modification to the drive cabinet is required.

Q: What communication protocols are supported?
A: PROFIBUS-DP (via optional board), USS protocol over RS-485, and point-to-point serial communication. All protocols supported by the original card are retained.

Q: How long does commissioning typically take after card replacement?
A: With a pre-saved parameter file, most experienced engineers complete the swap and recommission the drive in under two hours. First-time replacements without a parameter backup may require 4–8 hours for full re-parameterization and motor optimization.

Warranty Assurance

Every 6DM1001-2LA02-2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each card undergoes functional verification including power-on self-test, communication interface check, and visual inspection for component integrity. Units that do not pass pre-shipment testing are not dispatched.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or repair support within agreed lead times. Our after-sales team responds to technical queries within one business day. For urgent unplanned failures, expedited shipping options are available to minimize production downtime.

Procurement teams can request a formal quotation, proforma invoice, or certificate of conformity as required for internal purchasing approval. We support T/T bank transfer, and can provide packing lists and shipping documents compatible with import customs requirements in most markets.

Stock availability is updated regularly. Contact our sales team to confirm current inventory levels and lead times before placing time-critical orders.
