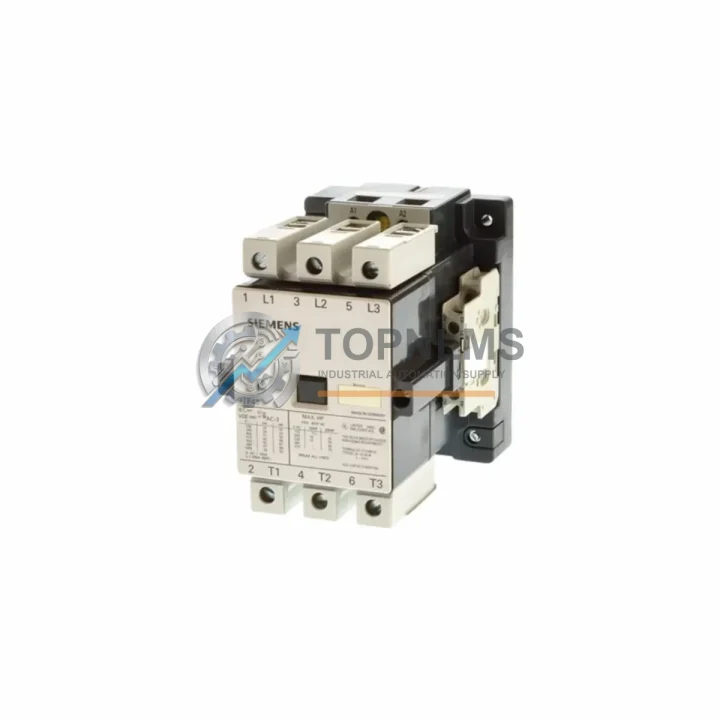

Siemens 3TF47 22-OXMO Ruggedized AC Contactor Module: Industrial Resilience for Harsh Environments

The Siemens 3TF47 22-OXMO is a heavy-duty AC contactor from the renowned SIRIUS Classic 3TF Series, engineered to deliver unwavering switching performance in the most demanding industrial environments. Rated at 75kW at 400V AC, this contactor is purpose-built for continuous-duty motor control, load switching, and power distribution applications where reliability is non-negotiable. Whether deployed in high-temperature foundries, dust-laden mining galleries, vibration-intensive compressor stations, or EMI-saturated power substations, the 3TF47 22-OXMO maintains consistent contact integrity and operational safety across its full service life.

Siemens designed the 3TF Series with a robust thermoplastic housing that resists mechanical shock, chemical exposure, and thermal cycling — conditions that routinely degrade inferior contactors within months. The 3TF47 22-OXMO variant features a coil voltage configuration optimized for direct integration with standard PLC output modules and relay logic controllers, making it a natural fit for both legacy SIMATIC S5 control architectures and modern SIMATIC S7-300/S7-400 automation systems. Its 4-pole contact arrangement (2 NO + 2 NC auxiliary) provides the switching flexibility required in complex interlock and safety relay circuits.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control cabinets, the Siemens 3TF47 22-OXMO rarely operates in isolation. It is most effective when integrated into a coordinated protection and control architecture. For motor branch circuit protection, it is typically paired with a Siemens 3RV2 motor starter protector or a 3VU13 circuit breaker, which provides upstream short-circuit and overload protection before the contactor’s main contacts. When thermal overload protection is required downstream, the Siemens 3UA58 or 3RB30 solid-state overload relay mounts directly onto the 3TF frame, forming a complete motor starter assembly without additional wiring.

For applications requiring safe isolation and emergency stop functionality, the 3TF47 22-OXMO integrates seamlessly with Siemens 3TK28 safety relay modules, which monitor the auxiliary contact feedback loop to confirm contactor drop-out in safety-critical sequences. In distributed I/O architectures, the coil control signal is typically sourced from a Siemens ET 200SP digital output module or an ET 200M DO module connected via PROFIBUS DP or PROFINET, ensuring deterministic switching response times compatible with safety-rated control loops.

Power quality in heavy industrial environments demands attention to transient suppression. The Siemens 3RT1926 RC suppressor module or a varistor suppressor can be fitted directly to the coil terminals of the 3TF47 22-OXMO to eliminate inductive switching spikes that would otherwise propagate into adjacent SITOP PSU300S industrial power supplies or sensitive SIMATIC S7-400 CPU modules. In multi-drive installations, the contactor works alongside Siemens SINAMICS G120 variable frequency drives, where it serves as the line-side isolation contactor, enabling safe drive bypass and maintenance isolation without interrupting the broader production line.

Terminal connectivity within the control cabinet is managed through Siemens SIRIUS 8WH DIN rail terminal blocks, which provide organized, vibration-resistant wiring terminations for both the main power circuit and the auxiliary control wiring. For communication-intensive installations, the overall system may include a Siemens CP 343-1 PROFINET communication module to relay contactor status and diagnostic data back to the SCADA or MES layer, enabling predictive maintenance scheduling based on actual switching cycle counts.

Application in Critical Infrastructure

The Siemens 3TF47 22-OXMO has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas processing facilities, it controls high-power pump motors and compressor drives in environments characterized by hydrocarbon vapors, high ambient temperatures, and continuous 24/7 operation. Its robust contact design minimizes arc erosion under the repetitive switching cycles typical of wellhead and pipeline booster stations.

In underground mining operations, the 3TF47 22-OXMO is deployed in conveyor drive panels and ventilation fan starters, where coal dust, moisture ingress, and mechanical vibration from blasting operations create extreme stress on electrical components. The contactor’s IEC 60068-compliant shock and vibration ratings ensure it maintains contact alignment and coil integrity even under these conditions. Replacement cycles are predictable, and the standardized 3TF frame dimensions allow direct substitution without panel modification — a critical advantage when minimizing production downtime.

In electric power generation and substation environments, the 3TF47 22-OXMO is used for auxiliary motor control — cooling fans, oil pumps, and transformer cooling systems — where EMI levels from high-voltage switching can disrupt lesser-grade contactors. Its coil suppression compatibility and IEC 61000-series EMC compliance make it a reliable choice for these high-interference zones. Similarly, in water and wastewater treatment plants, it controls submersible pump motors and aeration blowers in humid, chemically aggressive environments, where its thermoplastic housing resists the corrosive effects of chlorine and hydrogen sulfide atmospheres.

Steel mills and metallurgical plants represent another core application domain. Rolling mill auxiliary drives, ladle transfer car motors, and fume extraction fan starters all benefit from the 3TF47 22-OXMO’s high mechanical endurance rating. In these facilities, ambient temperatures regularly exceed 50°C near furnace areas, and the contactor’s rated operating temperature ceiling of +60°C provides the necessary thermal margin for safe, continuous operation without derating.
