Siemens 3RW4422-1BC44 Ruggedized Soft Starter for Harsh Environments

Product Overview

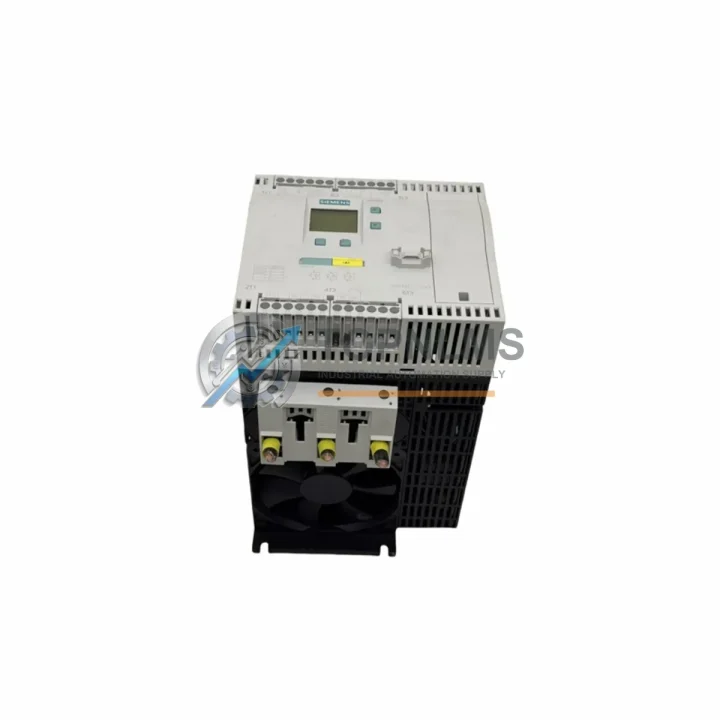

Siemens 3RW4422-1BC44 Ruggedized Soft Starter: Industrial Resilience for Harsh Environments

The Siemens 3RW4422-1BC44 is a high-performance soft starter from the SIRIUS 3RW44 series, engineered to deliver controlled motor starting and stopping in the most demanding industrial environments. Rated at 45A and designed for three-phase induction motors, this unit provides smooth torque ramp-up, integrated bypass relay, and comprehensive motor protection — making it a cornerstone component in continuous production lines, heavy-duty process plants, and safety-critical automation systems.

At TOPNLMS, we stock the 3RW4422-1BC44 as a verified, tested unit sourced through authorized industrial supply channels. Every unit undergoes pre-shipment functional verification to confirm switching performance, thermal protection response, and communication integrity before leaving our facility in Xiamen, China.

Rugged Specifications Table

Comprehensive Protection Solutions

The Siemens 3RW4422-1BC44 does not operate in isolation — it is most effective when integrated into a well-engineered control cabinet alongside complementary protection and control components. In a typical motor control center (MCC) or switchgear panel, this soft starter works in conjunction with a Siemens 3RT2 contactor for upstream switching and a 3RV2 motor circuit breaker for short-circuit protection, forming a complete, coordinated motor protection assembly.

For process-critical applications where motor health monitoring is essential, the 3RW4422-1BC44 supports thermistor motor protection inputs, allowing direct integration with PTC sensors embedded in the motor windings. When deployed within a Siemens S7-300 or S7-1500 PLC architecture, the soft starter can be monitored and controlled via PROFIBUS DP or AS-Interface communication modules, enabling real-time diagnostics and remote fault acknowledgment without manual intervention at the panel.

In distributed I/O configurations, the 3RW4422-1BC44 pairs naturally with Siemens ET 200SP or ET 200M remote I/O stations, allowing the soft starter’s run/fault status to be fed back to the central PLC over PROFINET. For installations requiring safe torque-off or emergency stop compliance, a Siemens 3SK1 safety relay or SIRIUS 3RK3 safety module can be wired in series with the soft starter’s enable circuit to meet SIL 2 / PLd safety integrity requirements.

Power quality in harsh industrial environments is often compromised by voltage sags, harmonics, and transient spikes. Pairing the 3RW4422-1BC44 with a Siemens SITOP PSU300S industrial power supply on the control voltage rail ensures stable 24 VDC logic supply even during grid disturbances. For motor drive applications where variable speed is also required, the soft starter complements rather than replaces a Siemens SINAMICS G120 variable frequency drive — the two are often deployed in parallel paths within the same control cabinet, with the soft starter handling DOL-equivalent loads and the VFD managing speed-variable processes.

Terminal connectivity within the control cabinet is typically managed through Siemens SIRIUS 8WH terminal blocks or compatible Phoenix Contact PTFIX distribution terminals, ensuring clean, labeled wiring that simplifies commissioning and future maintenance. All of these components, including the 3RW4422-1BC44, are available through TOPNLMS as stocked spare parts with full traceability documentation.

Application in Critical Infrastructure

The Siemens 3RW4422-1BC44 is deployed across a wide spectrum of critical infrastructure sectors where motor starting reliability directly impacts operational safety and production continuity.

In oil and gas facilities, this soft starter controls pump motors on wellhead injection systems and pipeline transfer stations, where abrupt motor starts would cause water hammer effects and mechanical stress on pipeline joints. The smooth torque ramp-up of the 3RW44 series eliminates these pressure surges, protecting both the motor and the downstream piping infrastructure.

In mining operations, conveyor belt drives and ore crusher motors are subject to extreme mechanical loads and frequent start-stop cycles. The 3RW4422-1BC44’s integrated bypass relay ensures that once the motor reaches full speed, the power semiconductors are bypassed, eliminating heat generation and extending the service life of the unit even under continuous-duty cycling conditions.

In water and wastewater treatment plants, submersible pump motors and blower drives benefit from the soft starter’s phase-failure detection and overload protection, which prevent motor burnout in unmanned pump stations where manual intervention is not immediately possible. The unit’s wide ambient temperature tolerance (-25 °C to +60 °C) makes it suitable for both outdoor pump houses in cold climates and enclosed equipment rooms in tropical regions.

In metallurgical and steel plants, rolling mill auxiliary drives, cooling fan motors, and hydraulic pump units operate in environments with high ambient temperatures, heavy vibration, and significant electromagnetic interference from arc furnaces and induction heating equipment. The 3RW4422-1BC44’s compliance with IEC/EN 60947-4-2 and its robust EMC design ensure stable operation without nuisance tripping in these electromagnetically hostile environments.

In power generation and utilities, the soft starter is used on cooling water pump motors, forced-draft fan drives, and auxiliary boiler feed pumps, where reliable starting under full-load conditions is mandatory for plant availability. Its compatibility with PROFIBUS-based DCS architectures — common in power plant automation — allows seamless integration into existing Siemens PCS 7 or WinCC-based control systems without additional protocol converters.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the Siemens 3RW4422-1BC44?
All units sold by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority support, and replacement units are dispatched from our Xiamen warehouse within 5 business days of fault confirmation.

Q2: How is each unit tested before shipment?
Every 3RW4422-1BC44 undergoes a pre-shipment inspection that includes visual examination for physical damage, verification of nameplate data against the order specification, and a functional power-on test confirming control voltage response, LED status indication, and communication port integrity. Units that do not pass all inspection criteria are quarantined and not shipped.

Q3: Is the 3RW4422-1BC44 compatible with existing Siemens SIRIUS and S7 PLC systems?
Yes. The 3RW4422-1BC44 is a direct form-fit-function replacement within the SIRIUS 3RW44 product family. It is fully compatible with Siemens S7-300, S7-400, and S7-1500 PLC systems via PROFIBUS DP or AS-Interface, and integrates with STEP 7 and TIA Portal engineering environments without requiring hardware modifications to the existing control cabinet.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains buffer stock of high-demand Siemens SIRIUS components, including the 3RW4422-1BC44, to support both planned maintenance schedules and emergency breakdown replacements. For customers with critical production lines, we offer reserved stock arrangements and priority shipping to minimize unplanned downtime. Contact our technical team at [email protected] or +86 18359293191 to discuss your spare parts management requirements.
