SICK LMS511-10100 Upgrade Solution for LMS5xx Series

Product Overview

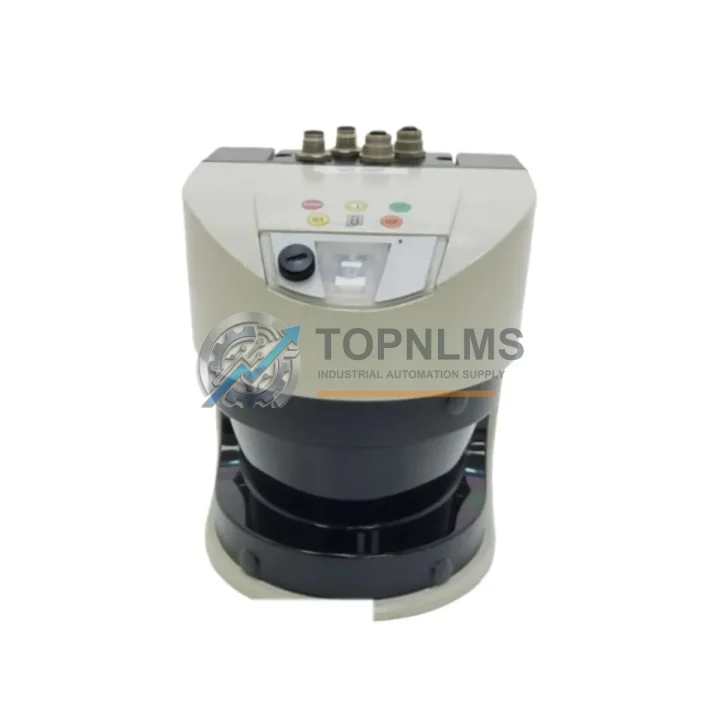

SICK LMS511-10100 Upgrade Solution for LMS5xx Series

When your existing SICK LMS5xx series installation reaches end-of-life or requires a performance upgrade, the SICK LMS511-10100 (ID. NUMBER 1046135) delivers a smooth, low-disruption migration path. Engineered for demanding industrial environments, this 2D LiDAR scanning sensor offers a 190° scanning angle and a detection range of up to 80 metres, making it a direct functional successor to earlier LMS5xx variants deployed across automated guided vehicle (AGV) systems, perimeter protection zones, and machine safety applications. Its IP67-rated enclosure ensures reliable operation in environments where dust ingress, water spray, and mechanical vibration are everyday realities.

For facilities currently operating legacy SICK LMS500-10000 or LMS511-10100-S07 units, the transition to this model requires minimal re-engineering. The sensor retains the same Ethernet and RS-422 communication interfaces familiar to LMS5xx users, meaning existing SOPAS ET configuration files can be adapted with only minor parameter adjustments. Wiring harnesses designed for the LMS500 footprint are compatible with the LMS511-10100 connector layout, reducing field labour time and the risk of wiring errors during changeover.

Integration with SICK’s broader safety and sensing ecosystem is a key advantage during system modernisation. The LMS511-10100 communicates natively over SICK’s proprietary CoLa A/B protocol as well as standard TCP/IP, enabling seamless handshaking with SICK Flexi Soft safety controllers and SICK S3000 safety laser scanners already installed in the same control cabinet or safety zone. Where the plant architecture relies on PROFINET or EtherNet/IP fieldbus backbones, the sensor pairs directly with SICK’s CDF600 fieldbus gateway, preserving the existing PLC communication structure without requiring a new I/O module or protocol converter.

In conveyor sorting and palletising lines, the LMS511-10100 is frequently deployed alongside SICK CLV690 barcode scanners and SICK Inspector P series vision sensors to form a complete object detection and identification layer. The sensor’s high angular resolution of 0.1667° and scan frequency of up to 100 Hz ensure that fast-moving targets on high-speed production lines are captured without gaps, a critical requirement when replacing older sensors that operated at lower scan rates. For outdoor perimeter applications, the sensor’s multi-echo technology distinguishes solid objects from rain, fog, or airborne dust — a capability that earlier LMS5xx generations lacked and that eliminates the false-alarm nuisance familiar to maintenance teams.

Control cabinet integration is straightforward. The LMS511-10100 draws 18–30 V DC from a standard 24 V DC rail, compatible with SICK’s own power supplies as well as third-party DIN-rail units already present in the cabinet. Its compact housing — consistent with the LMS5xx form factor — fits existing sensor mounting brackets without modification, preserving panel cutouts and cable routing. Where the legacy installation used a SICK MSC800 multi-layer scanner controller, the LMS511-10100 connects directly to the same controller chassis, allowing a phased sensor-by-sensor replacement strategy that keeps the line running during the upgrade window.

For system integrators managing a fleet of SICK LMS200 or LMS291 units approaching obsolescence, the LMS511-10100 represents the recommended migration target endorsed by SICK’s product lifecycle documentation. The transition involves updating the host application’s data parsing logic to handle the LMS5xx telegram structure, a well-documented process supported by SICK’s SOPAS Engineering Tool. TOPNLMS supplies the LMS511-10100 with full factory documentation, enabling your engineering team to complete the software migration before the hardware arrives on site.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful LMS511-10100 migration rarely involves the sensor alone. In most industrial retrofit projects, the sensor changeover is the trigger for a broader system review. Where the existing installation uses a SICK Flexi Soft FX3-CPU1 safety controller, the LMS511-10100 connects directly via the controller’s EFI (Enhanced Function Interface), preserving all pre-configured safety zones without reprogramming. If the plant runs a SICK S3000 safety laser scanner in the same guarded zone, both devices can share a common safety zone map managed through SOPAS ET, simplifying the validation process required after any safety-relevant hardware change.

For installations where the legacy sensor fed data to a SICK MSC800 multi-layer scanner controller, the LMS511-10100 slots into the same controller port assignment. The MSC800’s zone configuration remains intact, and only the sensor firmware version entry requires updating in the controller’s device table. In conveyor and logistics applications, the LMS511-10100 is commonly paired with a SICK CLV690 barcode scanner mounted at the same read gate, with both devices sharing a 24 V DC supply rail from a single DIN-rail power supply unit.

Where the control architecture relies on PROFINET communication, a SICK CDF600-2 fieldbus gateway bridges the sensor’s Ethernet output to the PROFINET network, allowing the host Siemens S7-300 or S7-1500 PLC to receive scan data without any changes to the existing network topology. In outdoor perimeter and access control applications, the LMS511-10100 is frequently installed alongside a SICK deTec4 Core safety light curtain to provide layered detection coverage — the LiDAR handling wide-area zone monitoring while the light curtain guards the final access point.

Signal conditioning between the sensor and legacy relay-based safety circuits is handled by a SICK UE10-3OS3 safety relay, which accepts the LMS511-10100’s digital switching outputs and interfaces them to the machine’s emergency stop chain. For applications requiring precise object height profiling in addition to 2D contour scanning, the LMS511-10100 is often deployed in a stacked configuration with a second unit, both managed through a SICK LMS5xx synchronisation cable to eliminate scan interference between adjacent sensors.

Retrofit Guidance FAQ

Q1: Can the LMS511-10100 use the same wiring harness as my existing LMS500-10000?
Yes. The LMS511-10100 uses the same M12 connector pinout as the LMS500 series. The 24 V DC power, RS-422 data lines, and digital I/O assignments are pin-compatible. No rewiring is required in most installations; only the cable label and documentation need updating to reflect the new part number.

Q2: Will my existing SOPAS ET zone configuration transfer to the LMS511-10100?
Yes, with minor revision. SOPAS ET exports zone configurations as XML files that are importable into the LMS511-10100. Scan frequency and angular resolution settings may need adjustment if you are enabling the higher-resolution modes available on the LMS511-10100 that were not present on the legacy unit. TOPNLMS recommends a bench test of the imported configuration before field installation.

Q3: Is the LMS511-10100 compatible with PROFINET and EtherNet/IP networks?
The sensor itself communicates over standard TCP/IP using CoLa A/B protocol. Native PROFINET or EtherNet/IP integration requires a SICK CDF600 fieldbus gateway. This gateway is available separately and preserves your existing PLC program structure, requiring only a new GSD/EDS file import on the PLC side.

Q4: What physical space does the LMS511-10100 require compared to my current sensor?
The LMS511-10100 shares the same LMS5xx housing dimensions. Existing mounting brackets, sensor stands, and cable entry points are fully reusable. No panel modifications or new mounting hardware are required for a like-for-like replacement.

Warranty Assurance

Every SICK LMS511-10100 (ID. NUMBER 1046135) supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional inspection: power-on verification, communication interface test (Ethernet and RS-422), scanning angle confirmation, and output signal validation. Units that do not meet SICK’s published performance specifications are quarantined and not shipped.

Should a warranty claim arise within the coverage period, TOPNLMS provides a replacement unit or full refund, with return logistics coordinated by our after-sales team. Response time for warranty enquiries is within one business day. For urgent production-line situations, TOPNLMS maintains buffer stock of the LMS511-10100 to support same-day or next-day dispatch to minimise your downtime exposure.

Long-term supply continuity is a priority for TOPNLMS. We maintain a standing inventory of LMS5xx series sensors and associated accessories to support customers with multi-year maintenance contracts or scheduled replacement programmes. Procurement teams are welcome to request a formal quotation with lead-time commitment for volume orders.

For technical pre-sales support, compatibility verification, or to request a datasheet, contact our industrial automation specialists directly.
