SICK DRS60-E4M02048 Original Industrial Spare DRS60 Compatible

Product Overview

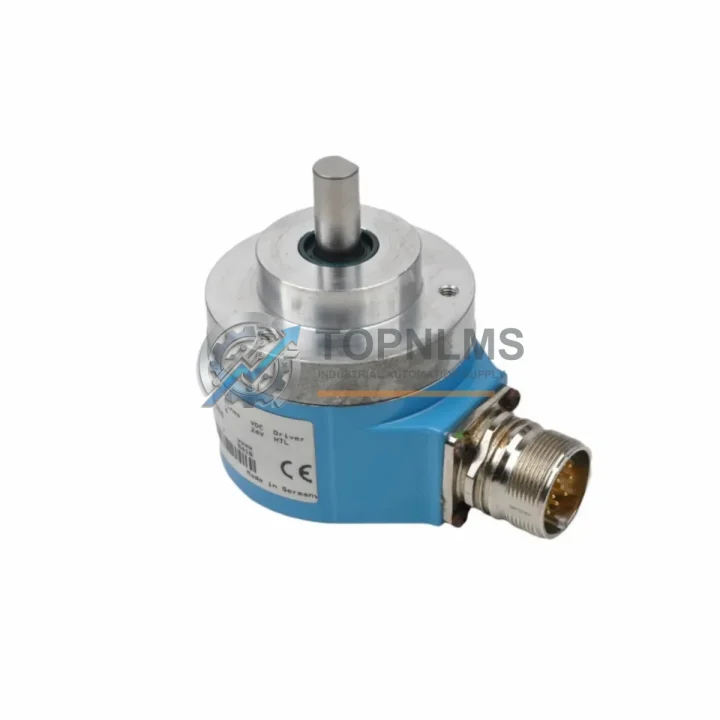

SICK DRS60-E4M02048 Original Industrial Spare DRS60 Compatible: System Stability Through Precision Feedback

In modern industrial automation environments, encoder reliability is not a secondary concern — it is the backbone of machine positioning accuracy, process repeatability, and overall system uptime. The SICK DRS60-E4M02048 is an original absolute rotary encoder from SICK’s proven DRS60 Series, engineered for demanding industrial applications where signal integrity and mechanical durability are non-negotiable. Whether you are managing a CNC machining center, a servo-driven conveyor, a robotic arm joint, or a precision winding machine, this encoder delivers the 2048 pulses-per-revolution resolution and robust housing that maintenance engineers depend on during both scheduled overhauls and emergency replacements.

Sourcing an original SICK DRS60-E4M02048 as a verified spare part is a strategic decision that protects your production line from the cascading costs of unplanned downtime. Counterfeit or incompatible encoders introduce signal noise, miscounting errors, and premature bearing failure — all of which translate directly into rejected product, damaged tooling, and extended shutdown windows. By stocking the genuine DRS60-E4M02048, your maintenance team can execute a like-for-like swap in minutes, restore closed-loop feedback to the drive system, and return the machine to full production without recalibration delays.

Critical Technical Specs

Preventive Maintenance Strategy

A rotary encoder failure rarely occurs in isolation. In most servo and motion control systems, the encoder is one node in a tightly coupled feedback chain. When a DRS60-E4M02048 is flagged for replacement during a scheduled maintenance window or after a fault alarm, experienced maintenance engineers use that opportunity to audit the entire feedback and power delivery circuit — because the root cause of encoder degradation is often upstream.

Begin by inspecting the servo drive or frequency inverter connected to the encoder channel. Drives from the same control cabinet — such as SICK’s compatible motor feedback receivers or third-party servo amplifiers — should be checked for parameter drift, encoder input card wear, and firmware currency. At the same time, verify the condition of the encoder cable and M23 connector: shielding continuity, pin corrosion, and cable routing near high-voltage conductors are common sources of intermittent signal errors that are misdiagnosed as encoder failure.

The power supply module feeding the encoder circuit deserves equal attention. A supply with marginal output voltage or excessive ripple will cause counting errors even with a brand-new DRS60-E4M02048 installed. If the cabinet houses a 24 V DC rail shared between the encoder, proximity sensors, and I/O modules, measure the rail voltage under load before signing off on the repair. While the cabinet is open, inspect the terminal blocks and DIN rail connectors on the encoder signal wiring — loose terminations are a leading cause of sporadic position feedback faults in high-vibration environments.

For systems using a SICK safety controller or safety relay module in conjunction with the encoder for safe-speed or safe-position monitoring, confirm that the safety function parameters remain within validated limits after the encoder swap. Similarly, if the machine uses a SICK distance measurement sensor or laser scanner for zone monitoring in the same control zone, verify that the encoder replacement has not altered any synchronized timing parameters in the PLC program.

Facilities running older motion control architectures should also evaluate whether the PLC I/O module receiving the encoder’s HTL pulse train shows any signs of input channel degradation — particularly on high-cycle machines where the counter input has accumulated billions of pulses over years of operation. Replacing the DRS60-E4M02048 while leaving a marginal counter input card in place will result in a repeat fault within months. Finally, check the coupling or bellows coupling between the encoder shaft and the driven shaft: misalignment and coupling wear are the primary mechanical causes of premature encoder bearing failure and should be corrected at every encoder replacement interval.

Strategic Replacement Solutions

The SICK DRS60-E4M02048 is a direct form-fit-function replacement for any DRS60 series encoder with the E4 (HTL output) and M02048 (2048 PPR) designation. Its 60 mm housing diameter and 10 mm solid shaft conform to the DRS60 mechanical standard, meaning it mounts directly into existing encoder brackets, clamping flanges, and servo motor adapter plates without modification. This is a critical advantage in legacy system maintenance: the machine does not need to be re-engineered, re-wired, or re-parameterized — the encoder is swapped, the coupling is re-aligned, and the drive is re-enabled.

For facilities managing end-of-life motion control systems where the original SICK encoder is no longer available through standard distribution channels, the DRS60-E4M02048 sourced through TOPNLMS provides a verified original-specification replacement that extends the operational life of the machine by years. This is particularly valuable in industries where machine replacement cycles are measured in decades — such as steel processing, paper manufacturing, chemical processing, and heavy-press operations — where the cost of a new machine far exceeds the cost of a disciplined spare parts program.

Procurement teams should note that stocking a minimum of one DRS60-E4M02048 per critical machine axis reduces mean time to repair (MTTR) from hours to minutes. For multi-axis systems or production lines with multiple identical machines, a pooled spare strategy — maintaining two to three units in the maintenance storeroom — provides insurance against simultaneous failures during peak production periods.

Support FAQ

Q1: Is the DRS60-E4M02048 a genuine SICK original part or a compatible substitute?
The DRS60-E4M02048 supplied by TOPNLMS is an original SICK-manufactured encoder, not a third-party compatible or remanufactured unit. Each unit is sourced through verified industrial supply channels and undergoes pre-shipment functional testing to confirm resolution accuracy, output signal integrity, and mechanical condition before dispatch.

Q2: What is the warranty coverage and what does it include?
All DRS60-E4M02048 units carry a 12-month warranty from the date of delivery. The warranty covers manufacturing defects, signal output failure, and mechanical defects under normal operating conditions. Units that fail within the warranty period are replaced or refunded after fault verification. The warranty does not cover damage resulting from incorrect installation, electrical overvoltage, or mechanical overload.

Q3: How do I verify compatibility with my existing servo system before ordering?
Compatibility verification requires three data points: (1) the encoder housing diameter and shaft specification of the unit being replaced — the DRS60 uses a 60 mm housing and 10 mm solid shaft; (2) the output signal type required by your servo drive or counter input card — the E4 designation confirms HTL/Push-Pull output compatible with 10–30 V DC systems; and (3) the required resolution — 2048 PPR. If your existing encoder nameplate matches these parameters, the DRS60-E4M02048 is a direct replacement. For cross-reference assistance, contact TOPNLMS with your existing part number.

Q4: What is the typical lead time and how is the unit packaged for shipment?
In-stock units are dispatched within 1–3 business days of order confirmation. The DRS60-E4M02048 is packaged in anti-static protective packaging with foam cushioning to prevent mechanical damage during international transit. Tracking information is provided upon dispatch. Express shipping options are available for urgent maintenance requirements. Contact [email protected] or +86 18359293191 to confirm current stock availability and lead time.
