SICK DRS60-E4M01024 Replacement Solution for DRS60

Product Overview

SICK DRS60-E4M01024 Replacement & Upgrade Solution for DRS60 Series: Seamless Transition from Legacy Encoders

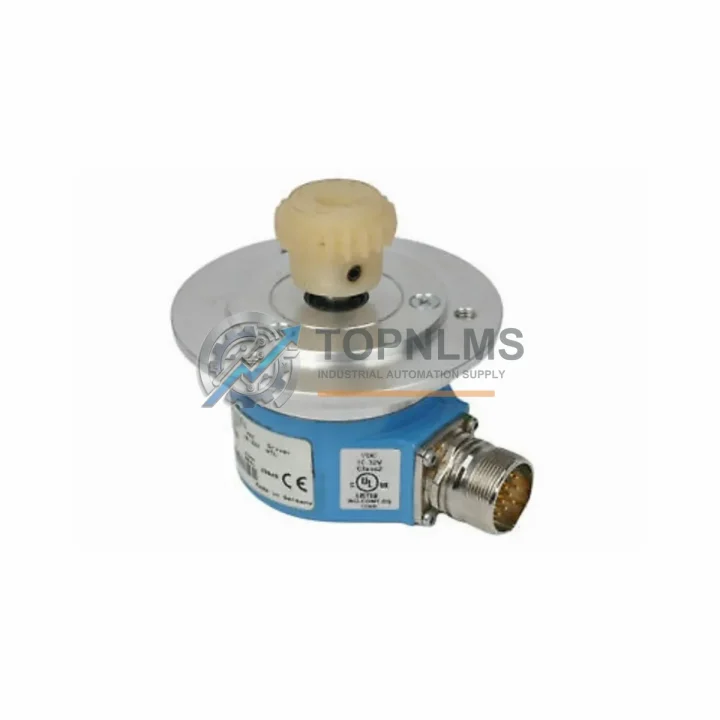

The SICK DRS60-E4M01024 is a high-performance incremental rotary encoder from SICK’s renowned DRS60 series, delivering 1024 pulses per revolution (PPR) with an HTL Push-Pull output and a robust 60mm solid shaft design. For facilities running aging motion control systems, servo drives, or legacy PLC-based positioning applications, this encoder represents a proven, drop-in-compatible upgrade path that minimizes engineering rework and eliminates costly downtime during replacement.

Whether your existing installation relies on an older SICK encoder such as the DRS60-E4A01024 or DRS60-E4A00500, or you are migrating from a third-party incremental encoder with equivalent PPR and HTL signal specifications, the DRS60-E4M01024 is engineered to integrate directly into your existing wiring harness, terminal block layout, and PLC input card configuration without requiring signal conditioning or protocol conversion.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful encoder replacement in an industrial control system rarely involves the encoder alone. During a DRS60-E4M01024 retrofit, engineers typically review and may also replace or verify the following components to ensure system-wide compatibility:

On the drive and motion control side, the encoder signal feeds directly into servo drives or frequency inverters — such as a SICK DSL-1204 safety encoder cable or the drive’s built-in encoder interface card. Verifying that the HTL signal level (typically 10–30 VDC, with output current sufficient for the drive’s input impedance) matches the drive’s encoder input specification is a critical first step before powering up the replacement unit.

For PLC-based positioning systems, the DRS60-E4M01024’s A/B/Z channel outputs connect to high-speed counter (HSC) input modules. If your system uses a Siemens S7-300 FM350-1 counter module or a Siemens ET 200SP high-speed counter module, the HTL Push-Pull signal is directly compatible without any additional signal converter. Similarly, systems built around Allen-Bradley 1756-HSC ControlLogix counter modules or Omron CJ1W-CT021 high-speed counter units accept HTL encoder signals natively.

In applications where the control cabinet uses terminal block distribution — such as a Phoenix Contact FLKM 50 terminal block or a Weidmüller encoder signal terminal — the A, B, and Z channels can be landed directly without signal isolation, provided cable shielding is properly grounded at the cabinet entry point. For longer cable runs exceeding 50 meters, or in environments with significant electrical noise from VFDs or welding equipment, a SICK signal isolator or encoder repeater may be recommended to maintain signal integrity.

If the retrofit involves replacing an encoder on a conveyor, winding machine, or rotary table where the mechanical coupling is a bellows or jaw coupling, confirm that the replacement shaft diameter and flange bolt pattern match the existing coupling. The DRS60-E4M01024’s 60mm flange is a standard DIN dimension, compatible with most European-standard encoder couplings. In cases where the legacy encoder used a hollow shaft design (such as the SICK DFS60 series), a shaft adapter or coupling hub may be required.

For safety-rated applications requiring SIL2 or PLd compliance, note that the standard DRS60-E4M01024 is a non-safety encoder. If your application requires functional safety, consider pairing it with a SICK safety relay module or upgrading to the SICK DFS60S safety encoder series for full SIL2 certification.

Retrofit Guidance FAQ

Q: Can I replace my existing DRS60-E4A01024 with the DRS60-E4M01024 without rewiring?
A: In most cases, yes. Both models share the same 1024 PPR resolution and HTL Push-Pull output. The primary difference is the connector variant (suffix M vs. A). Verify your existing cable connector type before ordering to confirm pin-for-pin compatibility.

Q: Is the HTL Push-Pull output compatible with my Siemens S7-1200 onboard HSC inputs?
A: The S7-1200’s onboard HSC inputs are designed for 24 VDC signals. The DRS60-E4M01024 operating at 24 VDC supply is compatible. Confirm the input filter time is set appropriately for 1024 PPR at your maximum shaft speed to avoid pulse loss.

Q: Do I need to modify my PLC program after replacing the encoder?
A: No program changes are required if the replacement encoder has the same PPR (1024) and the same output type (HTL). Your existing scaling factors, position calculations, and homing routines remain valid.

Q: What is the maximum cable length supported?
A: SICK recommends a maximum cable length of 100 meters for HTL Push-Pull signals at 24 VDC supply. For longer runs, use a shielded twisted-pair encoder cable and consider an encoder signal repeater.

Q: Can this encoder be used in a hazardous area (ATEX zone)?
A: The standard DRS60-E4M01024 is not ATEX-certified. For hazardous area applications, consult SICK’s Ex-rated encoder product line.

Q: How do I verify the encoder is functioning correctly after installation?
A: Use your PLC’s HSC diagnostic function or a handheld encoder tester to verify A, B, and Z pulse output at low speed. Confirm pulse count per revolution matches 1024 PPR before running at full production speed.

Warranty Assurance

Every SICK DRS60-E4M01024 unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes output signal verification and visual inspection to confirm it meets SICK’s published specifications.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing to minimize your production downtime. Our after-sales response team is reachable within one business day for technical queries, warranty assessments, and return merchandise authorization (RMA) processing.

Units are shipped in original or equivalent protective packaging with anti-static measures for sensitive electronic components. Express shipping options are available for urgent replacement requirements, with dispatch typically within 1–3 business days of order confirmation.

For bulk procurement, OEM partnerships, or standing purchase orders for DRS60 series encoders, contact our sales team to discuss pricing, lead times, and consignment stock arrangements.
